Chipset
- Radeon HD 7870 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
-



...

Gigabyte HD 7950 3GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card Features & Benefits: Lower GPU Temperature: Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU & memory temperature by doubling the copper inner layer of PCB. Better Overclocking Capability: Ultra Durable VGA board reduces voltage ripples in normal & transient state, thus effectively lowers noises & ensures higher overclocking capability. Decrease Power Switching Loss: Ultra Durable VGA board allows more bandwidth for electron passage & reduces circuit impedance. The less circuit impedance, the more stable flow of current & can effectively improve power efficiency. Chipset
- Radeon HD 7950 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base 900/ Boost 1000 MHz Memory Clock
- 5000 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 500 W















...

WINDFORCE 3X " Triangle Cool" Technology Compared to traditional linear heat transfer solution, GIGABYTE introduces the latest exclusive “ Triangle Cool” Technology that combines fin with clip module in a special triangle shape. This anti-turbulence structure enhances the efficiency of heat dissipation dramatically. Furthermore, the triangle design minimizes the flow of turbulence between fans & provides the system with more efficient air flow. Main Features AMD RADEON HD 7950 GPU (Tahiti PRO) OC to 900 M Hz (std: 800 MHz) GIGABYTE WINDFORCE 3X cooling design with “ Triangle Cool” technology&65289; Temperature: 35% cooler than stock fan 9.7% Performance better than stock HD 7950 19% Performance better than stock GTX 580 35% Performance better than stock GTX 570 PCI Express 3.0 x 16 bus interface World’s first 28nm GPU 3072MB of GDDR5 memory 384-bit memory interface Supports Open GL 4.2 / Shader Model 5.0 AMD Eyefinity 2.0 Technology AMD Cross Fire X Support Native HDMI 1.4a (with 3D over HDMI) Support mini Displayport 1.2 Specifications GPU
- Radeon HD 7950 (Tahiti PRO) Core Clock
- 900 MHz (Std 800 MHz) Memory Clock
- 5000 MHz Memory Size
- 3072MB GDDR5 Bus Type
- PCI Express 3.0 Memory Bus
- 384-bit Stream Processors
- 1792 Memory type
- 64 Mx 32 Direct X 11
- Yes Outputs
- DVI Port DVI-I, Display Port Yes (Mini Displayport*2), HDMI Yes HDCP
- Yes










...

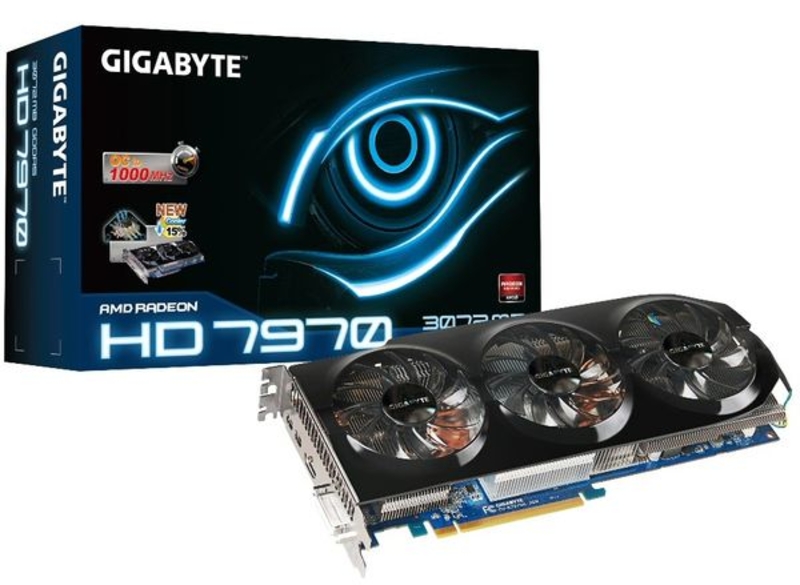

Gigabyte HD 7970 3GB GDDR5 DVI HDMI Displayport PCI-E Graphics Card GIGABYTE introduces the latest exclusive " Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the " Triangle Cool" Technology provides a more efficient air flow for the cooling system. Chipset
- Radeon HD 7970 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 1000 MHz Memory Clock
- 5500 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 550 W














...

GIGABYTE HD Experience Series GIGABYTE HD Experience Series Powered by AMD Radeon HD 6670 GPU Integrated with the first 1GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D / D-sub / HDMI Support Cross Fire X™ & Avivo™HD System power supply requirement: 400W

Specification
- Chipset
- Radeon HD 6670 Core Clock
- 800 MHz Shader Clock
- N/A Memory Clock
- 1600 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 PCB Form
- ATX I/O
- HDMIx 1, DVI-Dx 1, D-subx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=37.7 mm, L=211.8 mm, W=136.8 mm Power requirement
- 400 W




















...

GIGABYTE Ultra Durable VGA Series Powered by AMD Radeon HD 7970 GHz Edition GPU Integrated with the first 3GB GDDR5 memory & 384-bit memory interface Features Dual-link DVI-I / HDMI / mini Display Port * 2 Overclock to 1100 MHz Support AMD Eyefinity Technology & Avivo™HD System power supply requirement: 600W

Specification
- Chipset
- Radeon HD 7970 GHz Edition Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base 1050/ Boost 1100 MHz Memory Clock
- 6000 MHz Memory Size
- 3 GB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O
- HDMIx 1, DVI-Ix 1, Mini Display Portx 2 Card size
- H= 38mm, L=285 mm, W=126 mm Power requirement
- 600 W



















...

Be The First & Get More Rewards Including a limited edition AORUS Hoodie & Personalized LED Overlay On The Motherboard! ...

Specifications CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentiumprocessors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel Z270 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor+ Intel Thunderbolt™ 3 Controller: 1 x Intel Thunderbolt™ 3 connector, supporting Display Port & Thunderbolt™ video outputs & a maximum resolution of 4096x 2304@60 Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, " Back Panel Connectors, " for more information.) * Support for Display Port 1.2 version. Integrated Graphics Processor-Intel HD Graphics support: 1 x Display Port, supporting a maximum resolution of 4096x 2304@60 Hz * Support for Display Port 1.2 version. Integrated Graphics Processor+ Mega Chips MCDP2800 chip: 1 x HDMI port, supporting a maximum resolution of 4096x 2160@60 Hz * Support for HDMI 2.0 version. (Requires the latest Intel graphics driver from the GIGABYTE website.) Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Creative Sound Core 3D chip 2 x JRC NJM2114 & 1 x TI Burr Brown OPA2134 operational amplifiers Support for Sound Blaster Zx Ri High Definition Audio 2/5.1-channel Support for S/PDIF Out LAN 2 x Killer™ E2500 LAN chips (10/100/1000 Mbit) 1 x Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2) Wireless Communication module Killer™ Wireless-AC 1535 Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Bluetooth 4.1 Support for 11ac wireless standard & up to 867 Mbps data rate * Actual data rate may vary depending on environment & equipment. Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x 8 mode. 2 x PCI Express x 16 slots, running at x 4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the PCIEX8 slot. When the PCIEX4_1 slot is populated, the PCIEX8 slot will operate at up to x 4 mode. 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Multi-Graphics Technology Support for NVIDIA Quad-GPU SLI™ & 4-Way/3-Way/2-Way NVIDIA SLI™ technologies Support for AMD Quad-GPU Cross Fire X™ & 4-Way/3-Way/2-Way AMD Cross Fire™ technologies Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) (M2P_32G) 2 x U.2 connectors 3 x SATA Express connectors 6 x SATA 6 Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, & RAID 10 * Refer to "1-12 Internal Connectors, " for the installation notices for the U.2, M.2, & SATA connectors. ASMedia ASM1061 chip: 2 x SATA 6 Gb/s connectors (SATA3 6, 7), supporting AHCI mode only USB Chipset+ Intel Thunderbolt™ 3 Controller: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel Chipset+ Realtek USB (Universal Serial Bus) 3.1 Gen 1 Hub: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports available through the internal USB (Universal Serial Bus) headers Chipset: 5 x USB (Universal Serial Bus) 3.1 Gen 1 ports on the back panel 4 x USB (Universal Serial Bus) 2.0/1.1 ports available through the internal USB (Universal Serial Bus) headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x I/O shield audio LED power connector 2 x RGB (RGBW) LED strip extension cable headers 3 x SATA Express connectors 8 x SATA 6 Gb/s connectors 2 x M.2 Socket 3 connectors 2 x U.2 connectors 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 3.1 Gen 1 headers 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x ECO button 1 x OC button 2 x audio gain control switches 2 x BIOS switches Voltage Measurement Points Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x MMCX antenna connectors (2T2R) 1 x HDMI port 1 x Display Port 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 2 support) 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 5 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Line In/ Mic In, Line Out, Headphone) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Support for Q-Flash Plus * The USB (Universal Serial Bus) flash drive used must be a USB (Universal Serial Bus) 2.0 flash drive. Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker USB (Universal Serial Bus) DAC-UP 2 V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Optane™ Memory Ready Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor E-ATX Form Factor; 30.5cm x 26.4cm Box Contents GA-Z270X-Gaming 9 motherboard Motherboard driver disk Users Manual Quick Installation Guide Six SATA cables I/O Shield One Wi-Fi antenna One Wi-Fi antenna retention cover One GC-SLI23P SLI bridge connector One 3-Way SLI bridge connector One 4-Way SLI bridge connector One 2-Way Cross Fire bridge connector Two RGB (RGBW) LED strip extension cables One Accent Lighting LED Strip Two thermistor cables One G Connector Two Velcro Cable Ties One pack of back I/O dust covers Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. ...

Specifications CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentiumprocessors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B250 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400 (O.C.)* / 2133 MHz memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x 16 slots, running at x 4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the SATA Express connector & the PCIEX1_2 slot. When the SATA Express connector is populated, the PCIEX4_1 slot operates at up to x 2 mode. When the PCIEX1_2 slot is populated, the PCIEX4_1 slot operates at up to x 1 mode. * The PCIEX4_2 slot shares bandwidth with the M.2 connector. When the M.2 connector is populated, the PCIEX4_2 slot becomes unavailable. 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire X™ & 2-Way AMD Cross Fire™ technologies (PCIEX16, PCIEX4_1) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) 1 x SATA Express connector * The SATA Express connector is not compatible with regular SATA devices. 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, for the installation notices for the M.2 & SATA connectors. USB Chipset+ASMedia USB (Universal Serial Bus) 3.1 Gen 2 Controller: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB (Universal Serial Bus) Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker USB (Universal Serial Bus) DAC-UP 2 V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM&29256;&26412;) Intel Optane™ Memory Ready c Fos Speed Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor ATX Form Factor; 30.5cm x 22.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. ...
