This stylish heatsink uses the natural air flow in the case to cool down & provides great gaming experience under silent 0 d B environment. Avivo could provide vibrant high fidelity, flawlessly smooth next-generation video playback. Avivo technology easily allows your PCs to become digital home media center by its compelling video pipeline design that comprises the high definition video hardware acceleration. Using high quality components on graphics cards is the key factor for having a long lasting, stable & reliable product. Gigabyte is again setting a standard by using ferrite core chokes, low RDS (on) MOSFET & lower ESR solid capacitors, providing the stability & reliability from their high-end graphics solution. In addition, Gigabyte ultra durable 2 edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from Gigabyte delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry & optimum placement of components for enhanced graphics performance. Specifications Chipset
- Radeon HD 6450 PCB Form
- Low Profile Core Clock
- 625 MHz Memory Clock
- 1333 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 64 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 I/O
- HDMI * 1 DVI-D * 1 D-sub * 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=21 mm, L=179 mm, W=126 mm Power requirement
- 400 W
















...

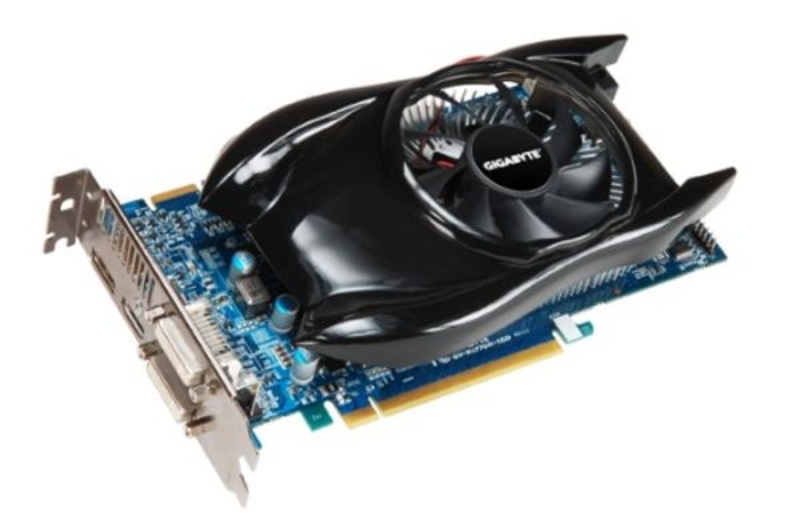

Using high quality components on graphics cards is the key factor for having a long lasting, stable & reliable product. GIGABYTE is again setting a new standard by Gigabyte HD 6570 2GB DDR3 DVI HDMI Display Port PCI-E Graphics Card using Ferrite Core Chokes, Low RDS (on) MOSFET & Lower ESR Solid Capacitors, providing the stability & reliability from their high-end graphics solution. In addition, GIGABYTE Ultra Durable 2 Edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from GIGABYTE delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry & optimum placement of components for enhanced graphics performance. Chipset
- Radeon HD 6570 PCB Form
- ATX Core Clock
- 650 MHz Shader Clock
- N/A Memory Clock
- 1600 MHz Process Technology
- 40 nm Memory Size
- 2 GB Memory Bus
- 128 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 I/O HDMI * 1 DVI-D * 1 D-sub * 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=32.5 mm, L=211.8 mm, W=129.9 mm Power requirement
- 400 W
















...

Using high quality components on graphics cards is the key factor for having a long lasting, stable & reliable product. Gigabyte is again setting a new standard, providing the stability & reliability from their high-end graphics solution. In addition, Gigabyte Ultra Durable 2 edition graphics cards feature a sophisticated layout topology. This state-of-the-art power design from Gigabyte delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry & optimum placement of components for enhanced graphics performance. GIGABYTE HD Experience Series Powered by AMD Radeon HD 6570 GPU Integrated with the first 1GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D / D-sub / HDMI Overclock to 670 MHz Support Cross Fire X & Avivo HD System power supply requirement: 400W Chipset
- Radeon HD 6570 PCB Form
- ATX Core Clock
- 670 MHz Memory Clock
- 1600 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 I/O
- HDMI * 1, DVI-D * 1, D-sub * 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=32.5 mm, L=211.8 mm, W=129.9 mm Power requirement
- 400W
















...

GIGABYTE HD Experience Series Powered by AMD Radeon HD 6670 GPU Integrated with the first 2GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D / D-sub / HDMI Support Cross Fire X™ & Avivo™HD System power supply requirement: 400W

Specification
- Chipset
- Radeon HD 6670 Tools
- N/A Core Clock
- 800 MHz Shader Clock
- N/A Memory Clock
- 1600 MHz Process Technology
- 40 nm Memory Size
- 2 GB Memory Bus
- 128 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 PCB Form
- ATX I/O
- HDMIx 1, DVI-Dx 1, D-subx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=37.7 mm, L=211.8 mm, W=136.8 mm Power requirement
- 400 W





















...

Specifications Chipset
- Radeon HD 6770 Core Clock
- 775 M Hz Memory Clock
- 4000 MHz Process Technology
- 800 Memory



...

Faster clocks double the transistor density of earlier 40 nm technology. 40nm technology helped make HD6850 series products the most advanced GPUs ever highest clocks speeds, incredible feature integration, full performance & precision all the time, & ability to take advantage of future, higher-speed memories. Avivo HD could provide vibrant high fidelity, flawlessly smooth next-generation video playback. Avivo HD technology easily allows your PCs to become digital home media center by its compelling video pipeline design that comprises the latest high definition video hardware acceleration, including H.264 & WMV9. ATIs Catalyst control center goes far beyond traditional driver configuration software
- its a feature-rich & stable 3D acceleration control application that puts you in complete command of your ATI visual processing unit (VPU). Catalyst Control Center offers exceptional graphics performance & visual quality for the ultimate in performance, stability, & innovation. Safe GPU overclocking, custom profiles, & assignable hotkeys are just a few of the many features. Youll also enjoy frequent updates, reliable customer service, & an interactive user feedback program, all backed by ATIs technical confidence, industry-leading capability, & uncompromising commitment to creating your ultimate visual experience. Shader Model 5.0 adds support for indexed temporaries which can be quite useful for certain tasks. Regular direct temporary access is preferable is most cases. One reason is that indexed temporaries are hard to optimize. The shader optimizer may not be able to identify optimizations across indexed accesses that could otherwise have been detected. Furthermore, indexed temporaries tend to increase register pressure a lot. An ordinary shader that contains for instance a few dozen variables will seldom consume a few dozen temporaries in the end but is likely to be optimized down to a handful depending on what the shader does. This is because the shader optimizer can easily track all variables & reuse registers. This is typically not possible for indexed temporaries, thus the register pressure of the shader may increase dramatically. This could be detrimental to performance as it reduces the hardwares ability to hide latencies. The power of Direct X 11 comes with awesome performance, stunning visual effects, & more dynamic interactivity than ever before. It ensures the best performance & application compatibility for all Direct X 11 applications. Microsoft Direct X 11 games, with stunning 3D graphics & shading effects. Chipset
- Radeon HD 6850 Core Clock
- 820 MHz Memory Clock
- 4200 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 256 bit Card Bus
- PCI-E 2.1 Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.1 PCB Form
- ATX I/O
- HDMI * 1 DVI-I * 1 DVI-D * 1 Display Port * 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 3 Card size
- H=38 mm, L=230 mm, W=126 mm Power requirement
- 500 W

















...

Faster clocks, double the transistor density of earlier 40 nm technology. 40nm technology helped make HD6870 series products the most advanced GPUs ever highest clocks speeds, incredible feature integration, full performance & precision all the time, & ability to take advantage of future, higher-speed memories. Avivo HD could provide vibrant high fidelity, flawlessly smooth next-generation video playback. Avivo HD technology easily allows your PCs to become digital home media center by its compelling video pipeline design that comprises the high definition video hardware acceleration, including H.264 & WMV9. Shader Model 5.0 adds support for indexed temporaries which can be quite useful for certain tasks. Regular direct temporary access is preferable is most cases. One reason is that indexed temporaries are hard to optimize. The shader optimizer may not be able to identify optimizations across indexed accesses that could otherwise have been detected. Furthermore, indexed temporaries tend to increase register pressure a lot. An ordinary shader that contains for instance a few dozen variables will seldom consume a few dozen temporaries in the end but is likely to be optimized down to a handful depending on what the shader does. This is because the shader optimizer can easily track all variables & reuse registers. This is typically not possible for indexed temporaries, thus the register pressure of the shader may increase dramatically. This could be detrimental to performance as it reduces the hardwares ability to hide latencies. Give the whole of Earth a promise that the products do not contain any of the restricted substances in concentrations & applications banned by the Ro HS Directive, & are capable of being worked on at the higher temperatures required for lead free solder. One Earth & Gigabyte cares! GIGABYTE Ultra Durable VGA Series GIGABYTE Ultra Durable VGA Series Powered by AMD Radeon HD 6870 GPU Integrated with the first 1GB GDDR5 memory & 256-bit memory interface Features Dual-link DVI-I / DVI-D / HDMI / mini Display Port * 2 Overclock to 915 MHz Support Cross Fire X, Avivo HD, Eyefinity & Eye Speed System power supply requirement: 500W Wind Force 3X
- Anti-turbulence-3D Inclined Equipped with anti-turbulence inclined fins, ultra quiet PWM fan & pure copper heat pipe. Specifications Chipset
- Radeon HD 6870 Core Clock
- 915 MHz Memory Clock
- 4200 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 256 bit Card Bus
- PCI-E 2.1 Memory Type
- GDDR5 Direct X
- 11 Open GL 4.1 I/O
- HDMI * 1, DVI-I * 1, DVI-D * 1, mini Display Port * 2 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H=38 mm, L=290 mm, W=126 mm Power requirement
- 500 W















...

Gigabyte HD 7750 1GB GDDR5 DVI HDMI PCI-E Graphics Card The new SAPPHIRE HD 7700 series is a new family of graphics cards targeting the enthusiast on a budget & mainstream users looking for increased graphics performance. Using high quality components on graphics cards is the key factor for having a long lasting, stable & reliable product. GIGABYTE is again setting a new standard by using Ferrite Core Chokes, Low RDS (on) MOSFET & Lower ESR Solid Capacitors, providing the stability & reliability from their high-end graphics solution. In addition, GIGABYTE Ultra Durable 2 Edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from GIGABYTE delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry & optimum placement of components for enhanced graphics performance. Chipset
- Radeon HD 7750 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 880 MHz Memory Clock
- 4500 MHz Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.1 Multi-view
- 2 I/O HDMI * 1 DVI-D * 1 D-sub * 1 Card size
- H= 40mm, L= 195mm, W= 136.5mm Power requirement
- 400 W















...

Specifications Chipset
- Radeon HD 7750 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process


...

GIGABYTE HD Experience Series Powered by AMD Radeon HD 7750 GPU Integrated with the first 2GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D*2 / HDMI / D-Sub Overclock to 850 MHz Support AMD Avivo™HD System power supply requirement: 400W

Specification
- Chipset
- Radeon HD 7750 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 850 MHz Memory Clock
- 1600 MHz Memory Size
- 2 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- DDR3 Direct X
- 11.1 Open GL
- 4.1 Multi-view
- 2 I/O
- HDMIx 1, DVI-Dx 2, D-subx 1 Card size
- H= 40mm, L= 195mm, W= 136.5mm Power requirement
- 400 W



















...
