Gigabyte HD 7950 3GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card Features & Benefits: Lower GPU Temperature: Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU & memory temperature by doubling the copper inner layer of PCB. Better Overclocking Capability: Ultra Durable VGA board reduces voltage ripples in normal & transient state, thus effectively lowers noises & ensures higher overclocking capability. Decrease Power Switching Loss: Ultra Durable VGA board allows more bandwidth for electron passage & reduces circuit impedance. The less circuit impedance, the more stable flow of current & can effectively improve power efficiency. Chipset
- Radeon HD 7950 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base 900/ Boost 1000 MHz Memory Clock
- 5000 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 500 W















...

WINDFORCE 3X " Triangle Cool" Technology Compared to traditional linear heat transfer solution, GIGABYTE introduces the latest exclusive “ Triangle Cool” Technology that combines fin with clip module in a special triangle shape. This anti-turbulence structure enhances the efficiency of heat dissipation dramatically. Furthermore, the triangle design minimizes the flow of turbulence between fans & provides the system with more efficient air flow. Main Features AMD RADEON HD 7950 GPU (Tahiti PRO) OC to 900 M Hz (std: 800 MHz) GIGABYTE WINDFORCE 3X cooling design with “ Triangle Cool” technology&65289; Temperature: 35% cooler than stock fan 9.7% Performance better than stock HD 7950 19% Performance better than stock GTX 580 35% Performance better than stock GTX 570 PCI Express 3.0 x 16 bus interface World’s first 28nm GPU 3072MB of GDDR5 memory 384-bit memory interface Supports Open GL 4.2 / Shader Model 5.0 AMD Eyefinity 2.0 Technology AMD Cross Fire X Support Native HDMI 1.4a (with 3D over HDMI) Support mini Displayport 1.2 Specifications GPU
- Radeon HD 7950 (Tahiti PRO) Core Clock
- 900 MHz (Std 800 MHz) Memory Clock
- 5000 MHz Memory Size
- 3072MB GDDR5 Bus Type
- PCI Express 3.0 Memory Bus
- 384-bit Stream Processors
- 1792 Memory type
- 64 Mx 32 Direct X 11
- Yes Outputs
- DVI Port DVI-I, Display Port Yes (Mini Displayport*2), HDMI Yes HDCP
- Yes










...

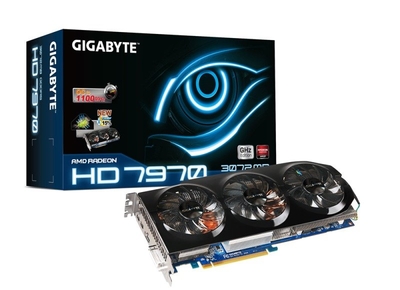

Gigabyte HD 7970 3GB GDDR5 DVI HDMI Displayport PCI-E Graphics Card GIGABYTE introduces the latest exclusive " Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the " Triangle Cool" Technology provides a more efficient air flow for the cooling system. Chipset
- Radeon HD 7970 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 1000 MHz Memory Clock
- 5500 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 550 W














...

Specifications Chipset
- Radeon HD 7970 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process


...

GIGABYTE HD Experience Series GIGABYTE HD Experience Series Powered by AMD Radeon HD 6670 GPU Integrated with the first 1GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D / D-sub / HDMI Support Cross Fire X™ & Avivo™HD System power supply requirement: 400W

Specification
- Chipset
- Radeon HD 6670 Core Clock
- 800 MHz Shader Clock
- N/A Memory Clock
- 1600 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 2.1 Memory Type
- DDR3 Direct X
- 11 Open GL
- 4.1 PCB Form
- ATX I/O
- HDMIx 1, DVI-Dx 1, D-subx 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- H=37.7 mm, L=211.8 mm, W=136.8 mm Power requirement
- 400 W




















...

Be The First & Get More Rewards Including a limited edition AORUS Hoodie & Personalized LED Overlay On The Motherboard! ...

Specifications CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentiumprocessors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel Z270 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor+ Intel Thunderbolt™ 3 Controller: 1 x Intel Thunderbolt™ 3 connector, supporting Display Port & Thunderbolt™ video outputs & a maximum resolution of 4096x 2304@60 Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, " Back Panel Connectors, " for more information.) * Support for Display Port 1.2 version. Integrated Graphics Processor-Intel HD Graphics support: 1 x Display Port, supporting a maximum resolution of 4096x 2304@60 Hz * Support for Display Port 1.2 version. Integrated Graphics Processor+ Mega Chips MCDP2800 chip: 1 x HDMI port, supporting a maximum resolution of 4096x 2160@60 Hz * Support for HDMI 2.0 version. (Requires the latest Intel graphics driver from the GIGABYTE website.) Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Creative Sound Core 3D chip 2 x JRC NJM2114 & 1 x TI Burr Brown OPA2134 operational amplifiers Support for Sound Blaster Zx Ri High Definition Audio 2/5.1-channel Support for S/PDIF Out LAN 2 x Killer™ E2500 LAN chips (10/100/1000 Mbit) 1 x Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2) Wireless Communication module Killer™ Wireless-AC 1535 Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Bluetooth 4.1 Support for 11ac wireless standard & up to 867 Mbps data rate * Actual data rate may vary depending on environment & equipment. Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x 8 mode. 2 x PCI Express x 16 slots, running at x 4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the PCIEX8 slot. When the PCIEX4_1 slot is populated, the PCIEX8 slot will operate at up to x 4 mode. 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Multi-Graphics Technology Support for NVIDIA Quad-GPU SLI™ & 4-Way/3-Way/2-Way NVIDIA SLI™ technologies Support for AMD Quad-GPU Cross Fire X™ & 4-Way/3-Way/2-Way AMD Cross Fire™ technologies Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) (M2P_32G) 2 x U.2 connectors 3 x SATA Express connectors 6 x SATA 6 Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, & RAID 10 * Refer to "1-12 Internal Connectors, " for the installation notices for the U.2, M.2, & SATA connectors. ASMedia ASM1061 chip: 2 x SATA 6 Gb/s connectors (SATA3 6, 7), supporting AHCI mode only USB Chipset+ Intel Thunderbolt™ 3 Controller: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel Chipset+ Realtek USB (Universal Serial Bus) 3.1 Gen 1 Hub: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports available through the internal USB (Universal Serial Bus) headers Chipset: 5 x USB (Universal Serial Bus) 3.1 Gen 1 ports on the back panel 4 x USB (Universal Serial Bus) 2.0/1.1 ports available through the internal USB (Universal Serial Bus) headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x I/O shield audio LED power connector 2 x RGB (RGBW) LED strip extension cable headers 3 x SATA Express connectors 8 x SATA 6 Gb/s connectors 2 x M.2 Socket 3 connectors 2 x U.2 connectors 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 3.1 Gen 1 headers 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x ECO button 1 x OC button 2 x audio gain control switches 2 x BIOS switches Voltage Measurement Points Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x MMCX antenna connectors (2T2R) 1 x HDMI port 1 x Display Port 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 2 support) 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 5 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Line In/ Mic In, Line Out, Headphone) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Support for Q-Flash Plus * The USB (Universal Serial Bus) flash drive used must be a USB (Universal Serial Bus) 2.0 flash drive. Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker USB (Universal Serial Bus) DAC-UP 2 V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Optane™ Memory Ready Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor E-ATX Form Factor; 30.5cm x 26.4cm Box Contents GA-Z270X-Gaming 9 motherboard Motherboard driver disk Users Manual Quick Installation Guide Six SATA cables I/O Shield One Wi-Fi antenna One Wi-Fi antenna retention cover One GC-SLI23P SLI bridge connector One 3-Way SLI bridge connector One 4-Way SLI bridge connector One 2-Way Cross Fire bridge connector Two RGB (RGBW) LED strip extension cables One Accent Lighting LED Strip Two thermistor cables One G Connector Two Velcro Cable Ties One pack of back I/O dust covers Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. ...

Specifications CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentiumprocessors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B250 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400 (O.C.)* / 2133 MHz memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x 16 slots, running at x 4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the SATA Express connector & the PCIEX1_2 slot. When the SATA Express connector is populated, the PCIEX4_1 slot operates at up to x 2 mode. When the PCIEX1_2 slot is populated, the PCIEX4_1 slot operates at up to x 1 mode. * The PCIEX4_2 slot shares bandwidth with the M.2 connector. When the M.2 connector is populated, the PCIEX4_2 slot becomes unavailable. 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire X™ & 2-Way AMD Cross Fire™ technologies (PCIEX16, PCIEX4_1) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) 1 x SATA Express connector * The SATA Express connector is not compatible with regular SATA devices. 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, for the installation notices for the M.2 & SATA connectors. USB Chipset+ASMedia USB (Universal Serial Bus) 3.1 Gen 2 Controller: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB (Universal Serial Bus) Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker USB (Universal Serial Bus) DAC-UP 2 V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM&29256;&26412;) Intel Optane™ Memory Ready c Fos Speed Operating System Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor ATX Form Factor; 30.5cm x 22.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. ...

Features • Supports 7th/ 6th Generation Intel Core™ Processors. • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. • 2- Way Cross Fire™ Multi-Graphics Support. • Intel Gb E LAN with c Fos Speed Internet Accelerator Software. • Ultra-Fast M.2 with PCIe Gen 3 x 4 & SATA interface. • Intel Optane™ Memory Ready. • Ambient LED Light Show design. • Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers. • High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting. • Triple display interfaces including High Definition Multimedia Interface. • GIGABYTE UEFI Dual BIOS™. • APP Center Including Cloud Station™ Utility. Product Overview Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Pin Headers • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. • Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans. New Smart Fan 5 Software Interoperable Sensors & Fans Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan). Fan Curve Customize fan curves based on specific temperatures with the intuitive graphical UI. Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds & corresponding fan speeds. Enhanced BIOS Interface The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition & the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows. Ambient LED Ambient lights are now programmable, You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmosphere that enhances the environment of your game, movie or music. Immersive VR Gaming Experience > VR requires more performance than Full HD graphics for a steady 90FPS or greater. > Only Gaming PCs can provide the best VR experience. Any copyrighted images or trademarks displayed are the property of their respective owners & are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only. 2-Way Cross Fire™ Multi Graphics Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. Intel Gb E LAN with c Fos Speed Internet Accelerator Networking Intel Gb E LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. Fast Onboard Storage with NVMe PCIe Gen 3 x 4 110mm M.2 (Up to 32 Gb/s) GIGABYTEs M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces for M.2 SSD devices. GIGABYTE Patented Double Locking Bracket High Quality Onboard Audio Design Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers. Audio Noise Guard with LED Trace Path Lighting High-End Audio Components High Definition Digital Outputs Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays & TVs. Anti-Sulfur Resistor Design Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change & causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. Refreshed BIOS Easy, Smart, & Friendly The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI & easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model. GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center means that you can easily launch all GIGABYTE apps installed on your system, check related updates online, & download the latest apps, drivers, & BIOS. System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks & processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer. @BIOS The GIGABYTE @BIOS app means that you can update your system’s BIOS from within Windows using a simple & slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also means that you can save your current BIOS to a file, recover your previous BIOS from an image & backup your BIOS to an image. 3D OSD 3D OSD automatically detects & displays your system information during games, allowing you to easily get a hold of your system information without switching between screens. GIGABYTE Patented Dual BIOS™ (UEFI) Design GIGABYTE Ultra Durable™ motherboards feature GIGABYTE Dual BIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PCs most crucial components, the BIOS. GIGABYTE Dual BIOS™ means that your motherboard has both a Main BIOS & a Backup BIOS, protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process. 4K Ultra HD Support 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times todays standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI. HDMI™
- The Next Generation Multimedia Interface HDMI™ is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content. XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere Now set up your stage & share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro! * Free 14 days XSplit Gamecaster + Broadcaster Premium License. Tri Def Smart Cam Custom Stream Modding To facilitate being the full streaming solution each GIGABYTE motherboard

Includes:: Tri Def Smart Cam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the Smart Cam application you can now apply live filters, & fully control your background, not only while streaming, but also through other video applications such as Skype. Specifications CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B250 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slots, running at x 4 (PCIEX4) 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire X™ & 2-Way AMD Cross Fire™ technologies USB (Universal Serial Bus) Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Optane™ Memory Ready c Fos Speed Operating System Windows 10 64-bit (for 7th Generation Intel Processors) Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.


...

Supports 7th/ 6th Generation Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Gb E LAN with c Fos Speed Internet Accelerator Software Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers GIGABYTE UEFI BIOS™ APP Center Including Cloud Station™ Utility

Specification CPU Support for 7th & 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B250 Express Chipset Memory x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400 (O.C.)* / 2133 MHz memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 6 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 6 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Windows 10 64-bit (for 7th Generation Intel Processors) Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...
