Gigabyte R7 370 Windforce OC 2GB GDDR5 Dual-Link DVI-I DVI-D HDMI Display Port PCI-E Graphics Card GV-R737WF2OC-2GD Main Features WINDFORCE 2X with Dual 80mm unique blade fan & Heat pipe direct touch technology OC Edition with Core Clock of 1015 M Hz (Std: 975 M Hz) 2GB GDDR5 memory & 256-bit memory interface Stylish Metal Back-Plate for better cooling & PCB reinforcement Ultra Durable 2 technology delivers lower temperature & longer system lifespan Specifications Chipset Radeon R7 370 Core Clock 1015 MHz (standard: 975 MHz) Process Technology 28 nm Memory Clock 5600 MHz Memory Size 2GB Memory Bus 256-bit Memory Type GDDR5 Card Bus PCI-E 3.0 Direct X 12 Open GL 4.4 PCB Form ATX Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 4 I/O Dual-link DVI-I*1/DVI-D*1/HDMI*1/ Display Port*1 Card size H=43mm, L=263mm, W=142 mm Power requirement 500W (with two 6-pin external power connectors) WINDFORCE 2X --- Dual 80mm Unique blade fan design The air flow is split through the triangle design at the fan edge, & is guided smoothly through the fan by the special 3D stripe curve design, effectively enhancing the air flow by 23% over traditional fans, whilst reducing air turbulence. WINDFORCE 2X --- Direct Heat Pipe Touch Heat pipes contact GPU directly by DHT (Direct Heat Pipe Touch) technology. WINDFORCE 2X --- Stylish Metal Back Plate Glorious black metal back plate engraved with GIGABYTE logo inspires passion for gaming. ...

“ Free AMD Radeon Rewards download coupon Silver from 30th April 2014 whilst stocks last with selected cards. Offer on selected cards only, not available on ex-display cards.” WINDFORCE Cooling system Powered by AMD Radeon R9 270 GPU Integrated with 2GB GDDR5 memory, 256-bit memory interface Features Dual-link DVI-I/ DVI-D / HDMI / Display Port BASE:950 M Hz / BOOST:975 MHz System power supply requirement: 500W The special inclined dual fan design effectively minimizes the flow of turbulence between two fans & enhances heat dissipation of hot area right underneath each fan. By unique design, WINDFORCETM 2X even enlarges air channel on the graphics card vents & creates a more effective air flow system in chassis. This special design helps heat dissipate quickly from GPU. In addition, WINDFORCETM 2X is equipped with 2 copper heat-pipes which strengthen the speed of heat dissipation. Specifications Chipset
- Radeon R9 270 Memory Clock
- 5600 MHz Process Technology
- 28 nm Memory Size
- 2048 MB Memory Bus
- 256 bit Core Clock
- Base / Boost clock:950 / 975 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector or Display Port & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 I/O
- Dual-link DVI-I*1 / DVI-D*1 / Display Port*1 / HDMI*1 Card size
- L=254mm W=141mm H=43mm Power requirement
- 500W (with two 6-pin external power connectors)















...

The special inclined dual fan design effectively minimizes the flow of turbulence between two fans & enhances heat dissipation of hot area right underneath each fan. By unique design, WINDFORCE 2X even enlarges air channel on the graphics card vents & creates a more effective air flow system in chassis. This special design helps heat dissipate quickly from GPU. In addition, WINDFORCE 2X is equipped with 2 copper heat-pipes which strengthen the speed of heat dissipation. Chipset
- Radeon R9 270 Memory Clock
- 5600 MHz Process Technology
- 28 nm Memory Size
- 2048MB Memory Bus
- 256 bit Core Clock
- Base / Boost clockï14;š950 / 975 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector or Display Port & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 3 I/O
- Dual-link DVI-I*1 / DVI-D*1 / Display Port*1 / HDMI*1 Card size
- L=254mm W=141mm H=43mm Power requirement
- 500W (with two 6-pin external power connectors)
















...

Gigabyte R9 270X 2G GDDR5 Dual DVI HDMI Display Port PCI-e Graphics Card Features & Benefits: Lower GPU Temperature: Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU & memory temperature by doubling the copper inner layer of PCB. Better Overclocking Capability: Ultra Durable VGA board reduces voltage ripples in normal & transient state, thus effectively lowers noises & ensures higher overclocking capability. Decrease Power Switching Loss: Ultra Durable VGA board allows more bandwidth for electron passage & reduces circuit impedance. The less circuit impedance, the more stable flow of current & can effectively improve power efficiency. Chipset Radeon
- R9 270X Core Clock
- Base / Boost clock:1050 / 1100 MHz Memory Clock
- 5600 MHz Process Technology
- 28 nm Memory Size
- 2048MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 3 I/O
- Dual-link DVI-I*1 / DVI-D*1 / Display Port*1 / HDMI*1 Card size
- L=297mm W=132mm H=43mm Power requirement
- 500W (with two 6-pin external power connectors)
















...

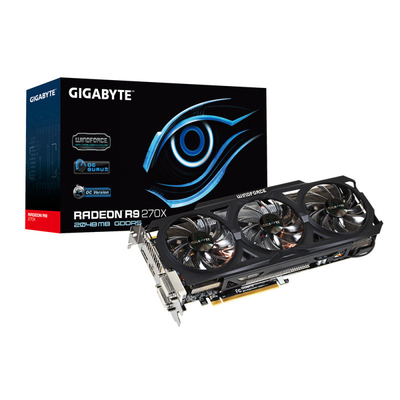

WINDFORCE 3X Cooling system Powered by AMD Radeon R9 270X GPU Integrated with 2GB GDDR5 memory, 256-bit memory interface Features Dual-link DVI-I/ DVI-D / HDMI / Display Port BASE:1050 M Hz / BOOST:1100 MHz System power supply requirement: 500W Specifications Chipset
- Radeon R9 270X Core Clock
- Base / Boost clock:1050 / 1100 MHz Memory Clock
- 5600 MHz Process Technology
- 28 nm Memory Size
- 2048 MB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 I/O
- Dual-link DVI-I*1 / DVI-D*1 / Display Port*1 / HDMI*1 Card size
- L=297mm W=132mm H=43mm Power requirement
- 500W (with two 6-pin external power connectors)















...

WINDFORCE 3X Cooling system with Triangle Cool technology Powered by AMD Radeon™ R9 280 GPU Integrated with 3GB GDDR5 memory, 384-bit memory interface Features DVI-I / HDMI / mini Display Port*2 BASE:950 M Hz / BOOST:1072 MHz System power supply requirement: 600W GIGABYTE introduces the latest exclusive " Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the " Triangle Cool" Technology provides a more efficient air flow for the cooling system. Chipset
- Radeon R9 280 Memory Clock
- 5000 MHz Process Technology
- 28 nm Memory Size
- 3072 MB Memory Bus
- 384 bit Core Clock
- Base / Boost clock:950 / 1072 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector or Display Port & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 I/O
- DVI-I / mini Display Port*2 / HDMI*1 Card size
- L=285mm W=126mm H=38mm Power requirement
- 600W (with one 6-pin & one 8-pin external power connectors)















...

Gigabyte R9 280X 3GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card GIGABYTE introduces the latest exclusive " Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the " Triangle Cool" Technology provides a more efficient air flow for the cooling system. Chipset Radeon
- R9 280X Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base / Boost clock:1000 / 1100 MHz Memory Clock
- 6000 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 Multi-view
- 3 I/O
- DVI-I / mini Display Port*2 / HDMI*1 Card size
- L=285mm W=126mm H=38mm Power requirement
- 600W (with one 6-pin & one 88-pin external power connectors)
















...

Gigabyte R9 290 4GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card NEW WINDFORCE 3X 2 SLOT 450W cooling system Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm & four 6mm cooper heat-pipes, inclined fans, & GIGABYTE Triangle Cool technology. This not only provides an effective heat dissipation capacity but also enables higher performance due to a lower temperature. Memory Clock
- 5000 MHz Chipset Radeon
- R9 290 Process Technology
- 28 nm Memory Size
- 4096 MB Memory Bus
- 512 bit Core Clock
- 1040 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector or Display Port & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O
- DVI-D*2 / Display Port / HDMI Card size
- L=294mm, W=141mm, H=41mm Power requirement
- 600W (with one 6-pin & one 8-pin external power connectors)
















...

Gigabyte R9 290 4GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card
Includes: Battelfield 4 Download Br&-new instinctive
...

NEW WINDFORCE 3X 2 SLOT 450W cooling system Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm & four 6mm cooper heat-pipes, inclined fans, & GIGABYTE Triangle Cool technology. This not only provides an effective heat dissipation capacity but also enables higher performance due to a lower temperature. Chipset Radeon
- R9 290X Memory Clock
- 5000 MHz Process Technology
- 28 nm Memory Size
- 4096 MB Memory Bus
- 512 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector or Display Port & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 Core Clock
- 1040 MHz I/O
- DVI-D*2 / Display Port / HDMI Card size
- L=294mm, W=141mm, H=41mm Power requirement
- 600W (with one 6-pin & one 8-pin external power connectors)
















...
