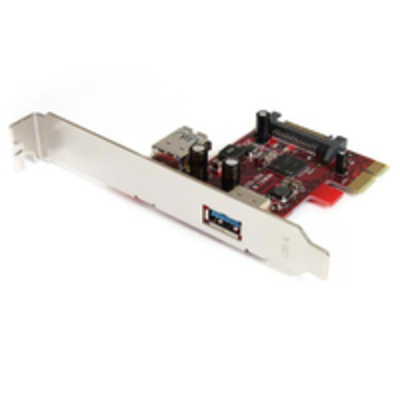

StarTech.com 2 Port PCI Express SuperSpeed USB 3.0 Card With UASP
Support - 1 Internal 1 External

Product Description

Add one internal & one external Super Speed USB (Universal Serial Bus) 3.0 to your PC\n\n The PEXUSB3S11 PCI Express USB (Universal Serial Bus) 3.0 Card lets you add one internal, & one external USB (Universal Serial Bus) 3.0 port to your PC through a PCI Express slot.\n\n Featuring a native NEC PCI Express host controller chipset, the new USB (Universal Serial Bus) 3.0 standard supports transfer rates of up to 5 Gbps, while still providing backward compatibility with older USB (Universal Serial Bus) 2.0 (480 Mbps) & 1.1 (12 Mbps) devices. The inclusion of an internal USB (Universal Serial Bus) 3.0 connection provides the added benefit of compatibility with USB (Universal Serial Bus) 3.0-based internal storage solutions or front-bay hubs.\n\n Enhanced with UASP support (USB Attached SCSI Protocol), this USB (Universal Serial Bus) 3.0 controller performs up to 70% faster than conventional USB (Universal Serial Bus) 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB (Universal Serial Bus) BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.\n\n For bus-powered USB (Universal Serial Bus) devices, this PCIe USB (Universal Serial Bus) 3.0 card

Includes:: an optional SATA power connector to connect to your system power supply & deliver up to 900m A of power per port to USB (Universal Serial Bus) 3.0 devices (500m A for USB (Universal Serial Bus) 2.0).\n\n Backed by a Star Tech.com lifetime warranty & free lifetime technical support.\n\n Improved Performance with UASP\n\n UASP is supported in Windows 8, Server 2012 & Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB (Universal Serial Bus) 3.0 at peak performance.\n\n At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.\n\n Test results were obtained using an Intel Ivy Bridge system, Star Tech.com add-on USB (Universal Serial Bus) 3.0 cards, a UASP-enabled Star Tech.com enclosure, & a SATA III solid state drive.\n\n The Star Tech.com Advantage\n\n- Versatile connection of internal or external peripherals with the 1 internal, 1 external port design\n- Time-saving file transfers, up to 70% faster than traditional USB (Universal Serial Bus) 3.0 when used with a UASP-supported enclosure\n- Power high-powered USB (Universal Serial Bus) devices as necessary, with the optional SATA power connector Feature Feature Value Host interface PCIe Output interface USB 3.0 Product colour Red Certification CE, FCCOperating temperature (T-T)0
- 50 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)0
- 85% Width 76 mm Depth 121 mm Height 19 mm Weight 40 g Package width 140 mm Package depth 175 mm Package height 30 mm Package weight 180 g Data transfer rate 5120 Mbit/s Ports quantity 2 Connectivity technology Wired Mac compatibility N Compatible operating systems Microsoft Windows XP/ Server 2003/ Vista/7/ Server 2008 R2 Quantity outer carton 40 pc (s)
