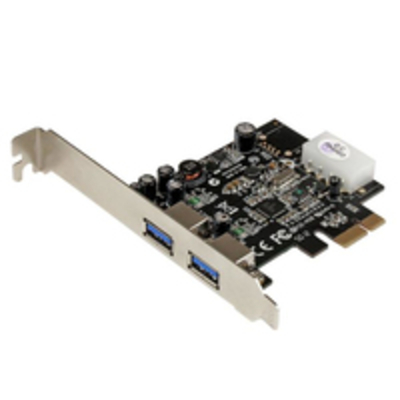

Add 2 Super Speed USB (Universal Serial Bus) 3.0 ports to your PCI Express-enabled PC\n\n The PEXUSB3S25 2-Port PCI Express USB (Universal Serial Bus) 3.0 Card lets you add two USB (Universal Serial Bus) 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply & deliver up to 900m A of power per port to USB (Universal Serial Bus) 3.0 bus-powered devices (500m A for USB (Universal Serial Bus) 2.0).\n\n Enhanced with UASP support (USB Attached SCSI Protocol), this USB (Universal Serial Bus) 3.0 controller performs up to 70% faster than conventional USB (Universal Serial Bus) 3.0 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB (Universal Serial Bus) BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.\n\n The PCIe USB (Universal Serial Bus) 3.0 adapter is compliant with USB (Universal Serial Bus) 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB (Universal Serial Bus) 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket &
Includes:: a low-profile/half-height bracket for installation in small form-factor computers.\n\n Backed by a Star Tech.com 2-year warranty & free lifetime technical support.\n\n Improved Performance with UASP\n\n UASP is supported in Windows 8, 8.1, Server 2012 & Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB (Universal Serial Bus) 3.0 at peak performance.\n\n At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.\n\n Test results were obtained using an Intel Ivy Bridge system, Star Tech.com add-on USB (Universal Serial Bus) 3.0 cards, a UASP-enabled Star Tech.com enclosure, & a SATA III solid state drive.\n\n The Star Tech.com Advantage\n\n- Increase efficiency of your USB (Universal Serial Bus) 3.0 devices with up to 5 Gbps of bandwidth\n- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design\n- Power high-powered USB (Universal Serial Bus) devices as necessary, with the optional LP4 power connector Feature Feature Value Host interface PCIe Output interface USB 3.0 Expansion card form factor Full-height / Low-profile Expansion card standard PCIe 2.0USB 3.0 (3.1 Gen 1) Type-A ports quantity 2 Internal Y Maximum cable length 3 m Ro HS compliance Y Certification CE, FCCChipset Renesas / NEC
- &181;PD720202 Data transfer rate (max)5 Gbit/s UASP support Y Operating temperature (T-T)0
- 50 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)5
- 85% Windows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x 64, Windows 10 x 64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 7 x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64, Windows Vista, Windows Vista Business, Windows Vista Business x 64, Windows Vista Enterprise, Windows Vista Enterprise x 64, Windows Vista Home Basic, Windows Vista Home Basic x 64, Windows Vista Home Premium, Windows Vista Home Premium x 64, Windows Vista Ultimate, Windows Vista Ultimate x 64, Windows Vista x 64 Linux operating systems supported Y Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Width 18 mm Depth 82 mm Height 120 mm Weight 51 g Cables included SATADrivers included Y Manual Y Package width 142 mm Package depth 170 mm Package height 28 mm Package weight 153 g
