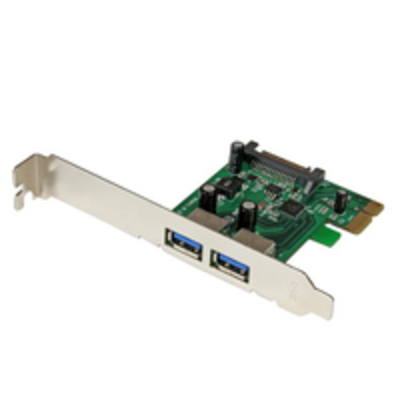

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter
With UASP - SATA Power
Add 2 SuperSpeed USB 3.0 ports with SATA power to your PCI Express-enabled PC\n\nThe PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).\n\nEnhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing
transfer speeds for less wait time on data transfers. See our UASP test results below for further details.\n\nThe PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.\n\nBacked by a StarTech.com 2-year warranty and free lifetime technical support.\n\nImproved Performance with UASP\n\nUASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak
performance.\n\nAt the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.\n\nTest results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.\n\nThe StarTech.com Advantage\n\n- Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth\n- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design\n- Power high-powered USB devices as necessary, with the optional SATA power connectorFeatureFeature ValueHost interfacePCIeOutput interfaceUSB 3.0Expansion card form factorLow-profileUSB 3.0 (3.1 Gen 1) Type-A ports quantity2InternalYProduct colourGreen, MetallicData transfer rate (max)5
Gbit/sOperating temperature (T-T)5 - 50 &176;CStorage temperature (T-T)-25 - 70 &176;COperating relative humidity (H-H)20 - 80%Windows operating systems supportedYLinux operating systems supportedYWidth40 mmDepth65 mmHeight60 mmWeight130 gPackage width142 mmPackage depth175 mmPackage height30 mm
transfer speeds for less wait time on data transfers. See our UASP test results below for further details.\n\nThe PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.\n\nBacked by a StarTech.com 2-year warranty and free lifetime technical support.\n\nImproved Performance with UASP\n\nUASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak
performance.\n\nAt the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.\n\nTest results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.\n\nThe StarTech.com Advantage\n\n- Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth\n- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design\n- Power high-powered USB devices as necessary, with the optional SATA power connectorFeatureFeature ValueHost interfacePCIeOutput interfaceUSB 3.0Expansion card form factorLow-profileUSB 3.0 (3.1 Gen 1) Type-A ports quantity2InternalYProduct colourGreen, MetallicData transfer rate (max)5
Gbit/sOperating temperature (T-T)5 - 50 &176;CStorage temperature (T-T)-25 - 70 &176;COperating relative humidity (H-H)20 - 80%Windows operating systems supportedYLinux operating systems supportedYWidth40 mmDepth65 mmHeight60 mmWeight130 gPackage width142 mmPackage depth175 mmPackage height30 mm
