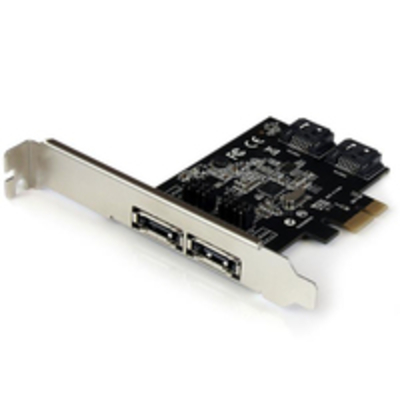

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot\n\n The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x 1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.\n\n The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.\n\n The card is fully compliant with the SATA revision 3.0
Specification (up to 6 Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives & Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).\n\n The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty & free lifetime technical support.\n\n The Star Tech.com Advantage\n\n- This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external (e SATA) ports as needed\n- This versatile add-in card offers SATA III connectivity (6 Gbps), while remaining backward compatible with SATA I (1.5 Gbps) & II (3 Gbps) device connections, which helps eliminate the expense of having to upgrade drives\n-
Includes:: both a full & low profile/half-height bracket for installation into any size of desktop computer Feature Feature Value Host interface PCIe Output interface SATASATA revision 3.0e SATA ports quantity 2 Internal Y Ro HS compliance Y Chipset ASMEDIA ASM1061 Logical block addressing (LBA) support 48 bit Operating temperature (T-T)0
- 50 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)5
- 85% Windows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64, Windows Vista Business, Windows Vista Business x 64, Windows Vista Enterprise, Windows Vista Enterprise x 64, Windows Vista Home Basic, Windows Vista Home Basic x 64, Windows Vista Home Premium, Windows Vista Home Premium x 64, Windows Vista Ultimate, Windows Vista Ultimate x 64, Windows XP Home, Windows XP Home x 64, Windows XP Professional, Windows XP Professional x 64 Width 92 mm Depth 121 mm Height 20 mm Weight 48 g Package weight 152 g Data transfer rate 6 Gbit/s Compatible operating systems Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
