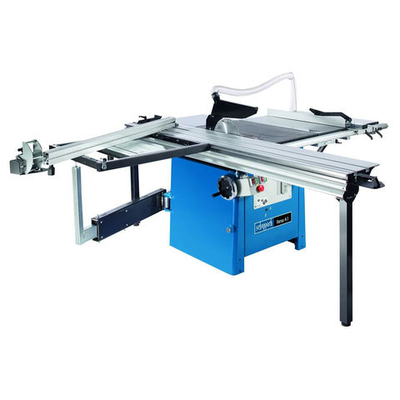

Scheppach Scheppach Forsa 4.1 Panel Sizing Saw With Pro Sliding Table
Carriage; Solo Table Extension; Table Width Extension & Scorer (400V)

Product Description

There are times when you may just need that extra cutting capacity without the need for a large panel sizing saw. Thats where the Scheppach Forsa 4.1 resolves your dilemma. All the outstanding features of our Forsa 4.0 but with that extra panel sizing capacity up to 2, 100 mm. Still in harmony with the small to medium sized workshop but offering in excess of 2m cutting capacity when you need it. Cutting height at 90° max. 107mm, at 45° max. 75mm. Patented cast-iron sawing unit with two large swinging segments & sturdy machined cast-iron table. The frame is solid, welded & torsion-resistant & two fixed hand wheels made from cast-iron make for easy height & angle adjustment. Pre-scoring attachment Alternatively, the scoring unit with its own separate & connectable drive unit (0.8k W) can be obtained Use of the scorer with the standard 315 mm saw blade
- no conversion necessary Retract the scoring blade under the bench when not in use-removal is not necessary Height adjustment of the scoring sawblade from 0-4mm With scoring blade pivot the main sawblade to 45 degrees TCT-scoring blade & Oslash; 120 x 20 mm; adjustable from 2.8 to 3.6 mm Cutting Data: Cutting height at 90° max. 107mm, at 45° max. 75 mm Table stroke / max. cross-cut travel: 2100 mm Cutting width with ripping fence 440 mm Cutting width with table width extension: 1080 mm Cutting depth in front of sawblade with sliding cross table & with pre-scoring attachment 1170 mm; without pre-scoring attachment: 1270 mm Standard Equipment: Cross-cutting gauge, swinging range 2 x 60° Table length extension, L 440 x W 670 mm Ripping fence with magnifying glass, fine-adjustment, & reversible fence rail, 800mm long Push stick, push handle, assembly tools Suction hose & Oslash; 50mm, sawblade cover
