Scheppach Scheppach Forsa 9.0 (400V) Precision Panel Sizing Saw With
Table Accessories

Product Description

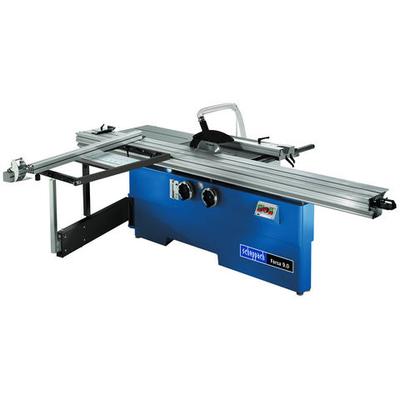

The Forsa 9.0 is the flagship of the Scheppach Forsa series of panel sizing saws. This superb panel saw has a 3200 mm cutting capacity & comes with a sliding table carriage, telescopic arm & scoring unit. Cutting height at 90° max. 107 mm, at 45° max. 75 mm Patented cast-iron sawing unit with two large swinging segments Sturdy machined cast-iron table Solid, welded & torsion-resistant frame Two fixed hand wheels made from cast-iron for height & angle adjustment Scoring unit with its own separate & connectable drive unit (0.8k W) can be obtained Use of the scorer with the standard 315 mm saw blade- no conversion necessary Retract the scoring blade under the bench when not in use removal is not necessary Height adjustment of the scoring saw blade from 0-4 mm With scoring blade pivot the main saw blade to 45 degrees TCT-scoring blade ø 120 x 20 mm; adjustable from 2.8 to 3.6 mm Cutting height at 90° max. 107 mm, at 45° max. 75 mm Table stroke / Max. cross-cut travel 3200 mm Cutting width with ripping fence 560 mm Cutting width with table width extension 1300 mm Cutting depth in front of sawblade with sliding cross table & with pre-scoring attachment 1350mm; without pre-scoring attachment 1470 mm Cutting depth behind the sawblade 3100 mm Cross-cutting gauge, swinging range 2 x 60° Table length extension, L 850 x W 400 mm Ripping fence with magnifying glass, fine-adjustment, & reversible fence rail, 800 mm long Push stick, push handle, assembly tools Suction hose-ø 50 mm, sawblade cover Phase inverter (400V)TCT Sawblade & Oslash;
- 315mm / 48 teeth Sawblade speed
- 4000 rpm Cutting speed
- 66 m/sec for fast cuts Table stroke
- 3200 mm Table size
- 595 x 815 mm Table height
- 850 mm Sawblade height adjustment
- 0 to 107 mm Sawblade swinging range
- 0° to 45° Certificates
- CE, GS, tested for wood dust Suction Conn
