Hyper X Savage 8GB
- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2/8 is a 1G x 64-bit (8GB) DDR4-2400 CL12 SDRAM
...

Hyper X Savage 8GB
- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Description Hyper X HX426C13SB2/8 is a 1G x 64-bit (8GB) DDR4-2666
...

Hyper X Savage 8GB
- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2/8 is a 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM
...

Hyper X Savage 8GB Kit (2x 4GB)
- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Hyper X HX426C13SB2K2/8 is a kit of two 512M x 64-bit
...

Hyper X Savage 8GB Kit (2x 4GB)- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-16-16 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Powerful performance, unparalleled design. Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS of up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability. Quad-core controller Hyper X Savage SSD is powered by a quad-core Phison S10 controller that delivers incredible speeds with both compressible & incompressible data. The fastest SATA-based Hyper X SSD, it has a processor that maintains performance as the drive fills up. Multiple capacities To suit your needs, Hyper X Savage SSD is available in 120GB, 240GB, 480GB & 960GB capacities. Bundle kit available It’s easy to install Hyper X Savage SSD, especially with the all-in-one bundle kit that

Includes:: everything you need to get started. The kit

Includes:: a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Three-year warranty Hyper X Savage SSD is backed by a three-year warranty, free technical support & legendary Hyper X reliability.





...

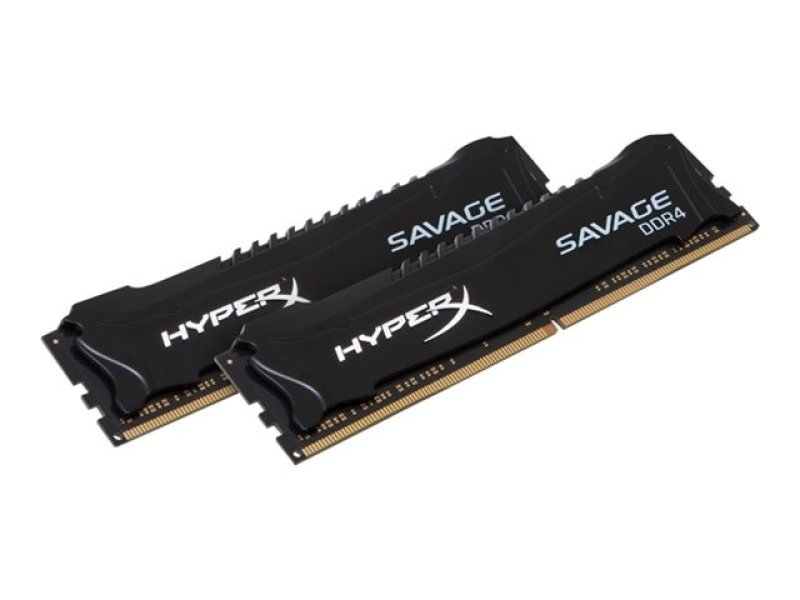

Hyper X Savage Black 16GB (2x 8GB) DDR4-2800 CL14 288-Pin DIMM Kit Description Hyper X HX428C14SBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-15-15 @1.35V XMP Profile 2: DDR4-2666 CL14-14-14 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage Black 16GB DDR4 2133 M Hz Memory (2x 8GB) Hyper X HX421C13SBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2133 CL13 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2133 at a low latency timing of 13-13-13 at 1.2V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2133 CL13-13-13 @1.2V

Features: Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm) SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC



...

Hyper X Savage Black 16GB Kit DDR4 2666 M Hz Memory (4x 4GB) Hyper X HX426C13SB/4 is a 512M x 64-bit (4GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2666 at a low latency timing of 13-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2666 CL13-14-14 @1.35V XMP Profile 2: DDR4-2400 CL13-13-13 @1.35V

Features: Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm) SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC



...

Hyper X Savage Black 32GB Kit DDR4 2666 M Hz Memory (4x 8GB) Hyper X HX426C13SB/4 is a 512M x 64-bit (4GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2666 at a low latency timing of 13-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2666 CL13-14-14 @1.35V XMP Profile 2: DDR4-2400 CL13-13-13 @1.35V

Features: Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm) SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC



...
