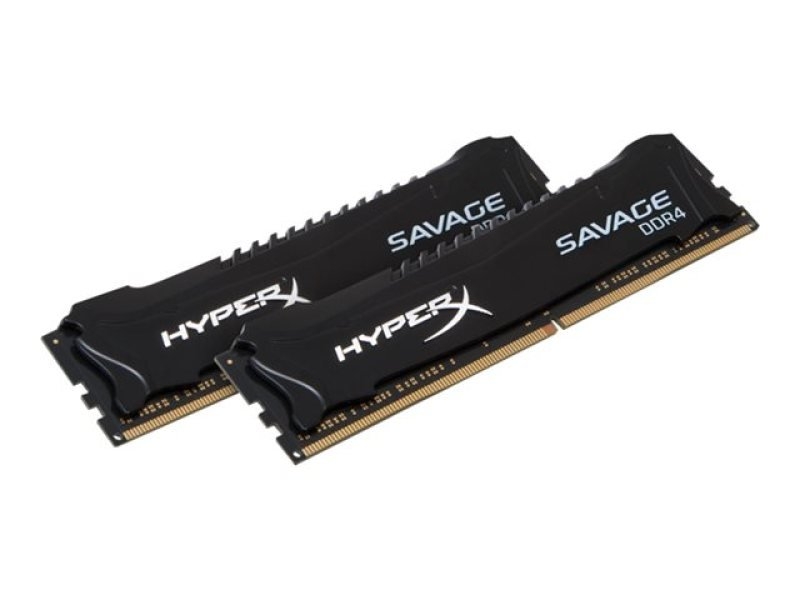

HyperX Savage 8GB Kit (2x4GB) - DDR4 2666MHz Intel XMP CL13 DIMM
Memory

Product Description

Hyper X Savage 8GB Kit (2x 4GB)
- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Hyper X HX426C13SB2K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2666 at a low latency timing of 13-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2666 CL13-15-15 @1.35V XMP Profile 2: DDR4-2400 CL13-14-14 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)
