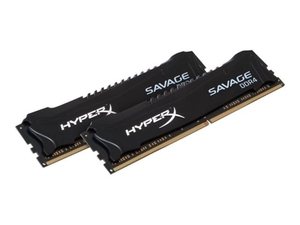

Hyper X Savage 16GB Kit (2x 8GB)- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-16-16 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage 16GB Kit (2x 8GB)- DDR4 3000 M Hz Intel XMP CL15 DIMM Memory Hyper X HX430C15SB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-3000 CL15-17-17 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage 16GB Kit* (4x 4GB)
- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2K4/16 is a kit of four 512M x
...

Hyper X Savage 16GB Kit (4x 4GB)
- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Hyper X HX426C13SB2K4/16 is a kit of four 512M x 64-bit
...

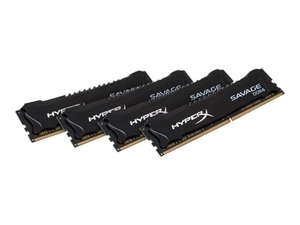

Hyper X Savage 16GB Kit (4x 4GB)- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2K4/16 is a kit of four 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-16-16 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Powerful performance, unparalleled design. Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS of up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability. Quad-core controller Hyper X Savage SSD is powered by a quad-core Phison S10 controller that delivers incredible speeds with both compressible & incompressible data. The fastest SATA-based Hyper X SSD, it has a processor that maintains performance as the drive fills up. Multiple capacities To suit your needs, Hyper X Savage SSD is available in 120GB, 240GB, 480GB & 960GB capacities. Bundle kit available It’s easy to install Hyper X Savage SSD, especially with the all-in-one bundle kit that

Includes:: everything you need to get started. The kit

Includes:: a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Three-year warranty Hyper X Savage SSD is backed by a three-year warranty, free technical support & legendary Hyper X reliability.





...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability.

...

Hyper X Savage 32GB Kit (4x 8GB)
- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2K4/32 is a kit of four 1G x 64-bit
...

Powerful performance, unparalleled design. Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS of up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability. Quad-core controller Hyper X Savage SSD is powered by a quad-core Phison S10 controller that delivers incredible speeds with both compressible & incompressible data. The fastest SATA-based Hyper X SSD, it has a processor that maintains performance as the drive fills up. Multiple capacities To suit your needs, Hyper X Savage SSD is available in 120GB, 240GB, 480GB & 960GB capacities. Bundle kit available It’s easy to install Hyper X Savage SSD, especially with the all-in-one bundle kit that

Includes:: everything you need to get started. The kit

Includes:: a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Three-year warranty Hyper X Savage SSD is backed by a three-year warranty, free technical support & legendary Hyper X reliability.





...

Hyper X Savage 480GB 2.5inch SSD Bundle Upgrade Kit Hyper X Savage SSD Hyper X Savage solid-state drive offers extreme performance for the &8232;extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Features Performance — incredible speeds for enhanced productivity Unique design — stunning red casing to give an edge to the latest PC hardware Slim — 7mm thickness to fit in most desktops & notebooks Fast & easy migration — all-in-one kit available with premium Hyper X accessories, including a handy multi-kit screwdriver & USB (Universal Serial Bus) 3.0 enclosure for easy installation Guaranteed — three-year warranty & free technical support Specifications Form factor: 2.5" Interface: SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3 Gb/s) Capacities: 480GB Controller: Phison PS3110-S10 Baseline Performance Compressible Data Transfer (ATTO) 480GB — 560MB/s Read & 530MB/s Write Incompressible Data Transfer (AS-SSD & Crystal Disk Mark) 480GB — 520MB/s Read & 500MB/s Write IOMETER Maximum Random 4k Read/ Write 480GB — up to 100, 000/ up to 88, 000 IOPS Random 4k Read/ Write: 480GB — up to 92, 000/ up to 89, 000 IOPS PCMARK Vantage HDD Suite Score: 480GB — 84, 000 PCMARK 8 Storage Band
Width: 480GB — 223MB/s PCMARK 8 Storage Score: 480GB — 4, 940 Anvil Total Score (Incompressible Workload): 120GB, 240GB, 480GB — 4, 700, 960GB — 5, 000 Power Consumption: 0.39W Idle / 0.5W Avg / 1.4W (MAX) Read / 4.35W (MAX) Write Storage temperature: -40°C~85°C Operating temperature: 0°C~70°C Dimensions: 100.0mm x 69.9mm x 7.0mm Weight: 480GB — 96g Vibration operating: 2.17G Peak (7–800 Hz) Vibration non-operating: 20G Peak (10–2000 Hz) Life expectancy: 1 million hours MTBF Warranty/support: 3-year warranty with free technical support Total Bytes Written (TBW): 480GB: 416TB 0.81 DWPD4
...
