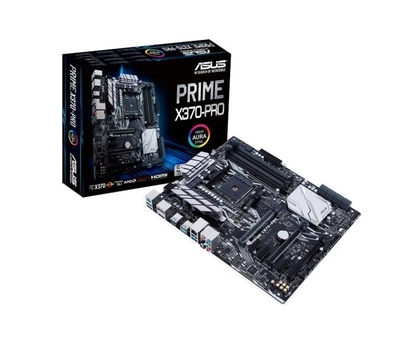

PRIME Series ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: it’s time for Prime. The ASUS mainstream motherboard PRIME B350M-A supports AMD Ryzen™ /7th Gen A-series / Athlon™ Processors, featuring with advanced technologies, including 5X Protection III & Safe Slot Core. Ultimate storage speed is elevated by 32 Gb/s M.2 & 10 Gb/s USB (Universal Serial Bus) 3.1 support. Gaming Audio brightens the battlefield with beautiful LED. superb performance &8231;DDR4 Support: Make your memory go faster. &8231; Ultra-fast transfer speed: M.2 onboard speed up to 32 Gbps. &8231; Ultimate-Speed 10 Gbps With USB (Universal Serial Bus) 3.1 Onboard: Enjoy the 10 Gbit/s speed! Gaming Experience &8231;LED-Illuminated Design: Brighten up your build with the gorgeous illuminated audio trace path. &8231; Audio Shielding: Ensures precision analog/digital separation & greatly reduces multi-lateral interference. &8231; Dedicated audio PCB layers: Separate layers for left & right tracks ensures both channels deliver consistent, equal quality. &8231; Premium Japanese audio capacitors: Provide warm, natural & immersive sound with exceptional clarity & fidelity. &8231;FAN RGB LED Control: Give you right to build your exclusive motherboard. Proven Quality 5X Protection III &8231; Safe Slot Core: Fortified PCIe Slot prevents damage &8231;LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges! &8231; Overvoltage Protection: World-class circuit-protecting power design &8231;DIGI+ VRM: Precision control for stable power! &8231; Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! EZ DIY &8231;EZ Flash 3: Get your latest BIOS fast & easy!

Specification CPU AM4 socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. ** Refer to www.asus.com for the AMD CPU support list. Chipset AMD B350 Chipset Memory AMD Ryzen™ Processors 4 x DIMMs, max. 64GB, DDR4 2666/2400/2133 MHz, ECC & non-ECC, un-buffered memory AMD 7th Generation A-series/ Athlon™ Processors 4 x DIMMs, max. 64GB, DDR4 2400/2133 MHz, non-ECC un-buffered memory Dual Channel memory architecture ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List). Expansion Slots AMD Ryzen™ Processors 1 x PCI Express 3.0/2.0 x 16 slot (max.@x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCI Express 3.0/2.0 x 16 slot (max.@x 8 mode) AMD B350 Chipset: 2 x PCI Express 2.0 x 1 slots VGA Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support: HDMI, DVI-D, D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24 Hz / 2560 x 1600@60 Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60 Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60 Hz
- Maximum shared memory of 2048 MB Storage
- 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 & RAID 10 support AMD Ryzen™ Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x 4 & SATA modes)storage devices support*C33* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports * When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports AMD 7th Generation A-series/ Athlon™ Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x 2 & SATA modes)storage devices support*C33* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports * When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports LAN Realtek 8111H Gigabit LAN Controller Audio Realtek ALC 887-VD2 8-Channel High Definition Audio CODEC * Use a chassis with HD audio module in the front panel to support an 8-channel audio output. USB (Universal Serial Bus) ASMedia USB (Universal Serial Bus) 3.1 controllers:
- 2 x USB (Universal Serial Bus) 3.1 ports (2 ports at back) AMD Ryzen™/7th Generation A-series/ Athlon™ Processors
- 4 x USB (Universal Serial Bus) 3.0 ports (4 ports at back panel) AMD B350 Chipset:
- 2 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports at mid-board)
- 4 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports at mid-board) ASUS Unique Features Dependable Stability ASUS 5X PROTECTION III
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design superb performance UEFI BIOS
- Most advanced options with fast response time Easy PC DIY Safe motherboard mounting - Component-free areas to minimize damage risk Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3 ASUS Quiet Thermal Solution Quiet Thermal Design:
- Stylish Fanless Design: Chipset Heat-sink
- ASUS Fan Xpert Back Panel I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse port (green) 1 x HDMI port 1 x DVI-D port 1 x D-Sub port 1 x LAN (RJ-45) port 2 x USB (Universal Serial Bus) 3.1 ports 4 x USB (Universal Serial Bus) 3.0/2.0 ports 3 x Audio jacks support 8-channel audio output 1 x USB (Universal Serial Bus) 3.0 connector supports additional 2 USB (Universal Serial Bus) 3.0 ports Internal I/O Connectors 2 x USB (Universal Serial Bus) 2.0/1.1 connectors support additional 4 USB (Universal Serial Bus) 2.0/1.1 ports 6 x SATA 6.0 Gb/s connectors 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices, (both SATA & PCIE mode) 1 x COM connector 1 x CPU Fan connector 1 x Fan RGB header 1 x Chassis Fan connector (Support DC & PWM mode) 1 x Front panel audio connector 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 2-pin Clear CMOS 1 x System Panel connector 1 x Speaker connector 1 x S/PDIF out header BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI3.0, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Manageability Wf M 2.0, DMI 3.0, WOL by PME, PXE Accessories 2 x Serial ATA 6.0 Gb/s cables 1 x I/O shield 1 x M.2 screw package 1 x Users manual Support DVD Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) Operating System Windows 10 (64-bit) Form Factor u ATX Form Factor, 9.6" x 9.45" (24.4 cm x 24 cm)

























...

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths Native M.2: Lightning-fast storage speeds Onboard USB (Universal Serial Bus) 3.1: Latest connectivity for ultrafast 10 Gbps transfers One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible
- maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. ASUS Safe Slot Protect your graphics card investment Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, Safe Slot is then firmly anchored to the motherboard through additional solder points. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ESD Guards Electrostatic discharge protection ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/- 6k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future
- thats the ASUS way. Extensive List of Supported Devices View supported devices & Qualified Vendor List for compatible memory The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices
- which

Includes:: thousands of compatible components
- & our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence! Top-to-bottom Reliability ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8, 000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software & safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment. DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Fan Xpert Dedicated CPU & case fan controls Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance & low noise
- & with Prime A320 series boards & their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even

Includes:: Auto-Tuning mode to scan & detect all fan characteristics for single-click customization! Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD B350 Memory AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory AMD 7th Generation A-series/ Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1 Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD B350 chipset 2 x PCIe 2.0 x 1 Storage AMD B350 chipset: 4 x SATA 6 Gb/s port (s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887 8-Channel High Definition Audio CODEC USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 port (s) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) AMD B350 chipset: 4 x USB (Universal Serial Bus) 2.0 port (s) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Operating System Support Windows 10, 64bit Back I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.1 Gen 2 (teal blue) Type-A 4 x USB (Universal Serial Bus) 3.1 Gen 1 (blue) 3 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port (s) connector (s) 4 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x Chassis Fan connector (s) (1 x 4 -pin) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 4-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) 1 x Speaker connector Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows 10 64-bit Form Factor m ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm ) Note *1:AMD Ryzen™ Processor does not support


























...

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths Native M.2: Lightning-fast storage speeds One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. Safe Slot Core Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design thats anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ESD Guards Electrostatic discharge protection ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/- 6k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future – thats the ASUS way. Extensive List of Supported Devices View supported devices & Qualified Vendor List for compatible memory The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices — which

Includes:: thousands of compatible components — & our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence! DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Fan Xpert Dedicated CPU & case fan controls Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance & low noise
- & with Prime B350 series boards & their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even

Includes:: Auto-Tuning mode to scan & detect all fan characteristics for single-click customization! Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD B350 Memory AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory *1 AMD 7th Generation A-series/ Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support: DVI-D/RGB ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD B350 chipset 2 x PCIe 2.0 x 1 Storage AMD B350 chipset: 4 x SATA 6 Gb/s port (s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887 8-Channel High Definition Audio CODEC USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (2 at mid-board) AMD B350 chipset: 6 x USB (Universal Serial Bus) 2.0 port (s) (2 at back panel, , 4 at mid-board) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Operating System Support Windows 10, 64bit Back I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port (s) 4 x USB (Universal Serial Bus) 3.1 Gen 1 (blue) 2 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port (s) connector (s) 4 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x Chassis Fan connector (s) (1 x 4 -pin) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) 1 x Speaker connector Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows 10 64-bit Form Factor m ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm ) Note 1* Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM Per Channel. 2*.AMD Ryzen™ Processor does not support





















...

Prime ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design & engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, & immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy & affordably Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. * Specifications & features vary by model, & all images are illustrative. Please refer to

Specification & gallery pages for full details Cooler by Design PRIME B450M-K II is engineered with an array of hybrid fan headers & features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool & stable under intense workloads. Multiple temperature sources: Each header can monitor & react to dedicated thermal sensors. Smart protection: A dedicated integrated circuit protects the fan header, including short circuit & over temperature protections. 4-Pin PWM/DC Fan: The onboard CHA FAN header supports PWM & DC mode. PCIe 3.0 M.2 (up to 32 Gbps) Achieve speed with onboard M.2 M.2 Slot supports data-transfer speed up to 32 Gbps via x 4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

...

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for both PCIe slot & audio trace paths Native M.2: Lightning-fast storage speeds Onboard USB (Universal Serial Bus) 3.1 Gen 2: Latest connectivity for ultrafast 10 Gbps transfers One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible
- maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. ASUS Safe Slot Protect your graphics card investment Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, Safe Slot is then firmly anchored to the motherboard through additional solder points. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME X370 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. Safe Slot Core Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design thats anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future
- thats the ASUS way. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime X370 series, so you can complete your custom motherboard build with confidence! DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Brighten Up Your Build LED-illuminated control for PCIe slot & trace paths Built-in LED lighting options can illuminate your build in a variety of mesmerizing styles. With specially-designed Fan RGB header control, you can even personalize your own fan lighting scheme with the exclusive AMD RGB Fan! AMD CPU & Chipset Features Ready for AMD AM4-socket Ryzen, 7th Generation A-series APUs & Athlon APUs This motherboard supports AMD Ryzen™ processors, 7th Generation A-series accelerated processing units (APUs) & Athlon™ CPUs. The high-performance Ryzen™ processor supports up to eight cores, & is based on the innovative Zen core architecture. The 7th Generation A-series APUs feature integrated AMD Radeon R-series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5 Gbps USB (Universal Serial Bus) 3.1 Gen 1 & 16 PCI Express 3.0/2.0 lanes for superb performance. AMD X370 Chipset The AMD X370 chipset delivers outstanding overclocking capabilities for the latest AMD AM4-socket Ryzen™ processors, 7th Generation A-series APUs & Athlon™ CPUs. It provides two 10 Gbps USB (Universal Serial Bus) 3.1 Gen 2 ports, & six 6 Gbps SATA ports for faster data retrieval. Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD X370 Memory AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory *1 AMD 7th Generation A-series/ Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Multi-GPU Support Supports AMD Cross Fire X™ Technology Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD X370 chipset 1 x PCIe 2.0 x 16 (max at x 4 mode) 2 x PCIe 2.0 x 1 2 x PCI Storage AMD X370 chipset: 6 x SATA 6 Gb/s port (s), Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) ASUS LAN Guard Audio Realtek ALC887-VD2 8-Channel High Definition Audio CODEC Audio Feature :
- LED-illuminated design
- Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation & greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left & right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural & immersive sound with exceptional clarity & fidelity USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD X370 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 port (s) (2 at back panel, teal blue) AMD X370 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (2 at mid-board) AMD X370 chipset: 6 x USB (Universal Serial Bus) 2.0 port (s) (2 at back panel, black, 4 at mid-board) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+ ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.1 4 x USB (Universal Serial Bus) 3.1 Gen 1 2 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O Ports 1 x Fan RGB header 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port (s) connector (s) 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 2 x Chassis Fan connector (s) (2 x 4 -pin) 1 x S/PDIF out header (s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package Operating System Windows 10 64-bit Form Factor ATX Form Factor 12 inch x 9.35 inch (30.5 cm x 23.7 cm ) Note *1 Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM. *2 AMD Ryzen™ Processor does not support

























...

Asus AMD Radeon R7 250 1GB GDDR5 VGA DVI HDMI PCI-E Graphics Card Graphics Engine AMD Radeon R7 250 Bus Standard PCI Express 3.0 Video Memory GDDR5 1024MB Engine Clock GPU Boost Clock: 1050 MHz GPU Base Clock: 1000 MHz Memory Clock 1150 MHz (4600 MHz GDDR5 ) Memory Interface 128-bit Resolution DVI Max Resolution: 1920x 1200 Digital Max Resolution:2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption up to 75 Wno additional PCIe power required Software ASUS GPU Tweak & Driver ASUS Features Super Alloy Power

Dimensions 16 x 11.1 x 3.4 Centimeter

...

Asus AMD Radeon R9 NANO 4GB HDMI Display Port PCI-E Graphics Card Specifications Graphics Engine AMD Radeon R9 NANO Bus Standard PCI Express 3.0 Open GL Open GL 4.5 Video Memory 4GB High Bandwidth Memory (HBM) Engine Clock 1000 MHz Memory Clock 500 MHz Memory Interface 4096-bit Resolution Digital Max Resolution:4096x 2160 Interface HDMI Output: Yes x 1 (Native) Display Port: Yes x 3 (Native) (Regular DP) HDCP Support: Yes Software ASUS GPU Tweak II & Driver

Dimensions 6 " x 4.5 " x 1.5 " Inch 15.24 x 11.5 x 3.9 Centimeter

...

Asus AMD Radeon R9270X-DC2-2GD5 2GB GDDR5 VGA DVI HDMI Display Port PCI-E Graphics Card Graphics Engine AMD Radeon R9 270X Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1050 MHz GPU Base Clock: 1000 MHz Memory Clock 5600 MHz (1400 MHz GDDR5 ) Memory Interface 256-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-D), Yes x 1 (DVI-I) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Software ASUS Utilities & Driver ASUS Features Direct CU Series Super Alloy Power

Dimensions 10.7 " x 5.24 " x 1.578 " Inch

...

Asus AMD Radeon RX 460 4GB GDDR5 DVI-D HDMI Display Port PCI-E Graphics card OUTSHINE THE COMPETITION ROG Strix RX 460 gaming graphics cards are packed with exclusive ASUS technologies, including Direct CU II Technology with Patented Wing-Blade Fans for up to 30% cooler & 3X quieter performance, & Industry-only Auto-Extreme Technology for premium quality & the best reliability. Aura RGB Lighting enables a gaming system personalization. ROG Strix RX 460 also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking & instant gameplay streaming. Specifications Graphics Engine AMD Radeon RX 460 Bus Standard PCI Express 3.0 Open GL Open GL4.5 Video Memory GDDR5 4GB Engine Clock 1256 MHz (OC Mode) 1236 MHz (Gaming Mode) * Retail goods are with default Gaming Mode, OC Mode can be adjusted with one click on GPU Tweak II Memory Clock 7000 MHz Memory Interface 128-bit Resolution Digital Max Resolution:5120x 2880 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 1 (Native) (HDMI 2.0) Display Port: Yes x 1 (Native) (Regular DP) HDCP Support: Yes Power Connectors 1 x 6-pin Software ASUS GPU Tweak II & Drive Aura (Graphics Card) Utility

Dimensions 7.6 " x 4.7 " x 1.4 " Inch 19.4 x 12 x 3.5 Centimeter

...

Asus AMD Radeon RX 480 4GB GDDR5 DVI-D HDMI Display Port PCI-E Graphics Card The Sweet Spot Performance ASUS Dual series of RX 480 comes equipped with Patented Wing-Blade Fans for max air flow with 105% more air pressure. While exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking & instant gameplay streaming. ASUS Dual series of RX 480 is perfectly matched with your ASUS X99-A II motherboard! Specifications Graphics Engine AMD Radeon RX 480 Bus Standard PCI Express 3.0 Open GL Open GL4.5 Video Memory GDDR5 4GB Engine Clock: 1320 MHz (OC Mode) 1300 MHz (Gaming Mode) * Retail goods are with default Gaming Mode, OC Mode can be adjusted with one click on GPU Tweak II Memory Clock 7000 MHz Memory Interface 256-bit Resolution Digital Max Resolution:5120x 2880 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 2 (Native) (HDMI 2.0) Display Port: Yes x 2 (Native) (Regular DP) HDCP Support: Yes Power Connectors 1 x 8-pin Software ASUS GPU Tweak II & Driver

Dimensions 9.53 " x 5.12 " x 1.69 " Inch 24.2 x 13 x 4.3 Centimeter

...
