Sporting a sleek modern design & using the latest PC technology, the ASUS ET2411 All-in-One PC Series delivers an inspired mix of convenience & versatility to your home. Do away with complicated PC desktops of the past, this all-in-one is ready to start up right out of the box—free of messy wires or complicated installations. Boasting a 23.6-inch Full HD multi-touch LED-backlit display, it lets you intuitively resize photos, surf the Web, or play games through simple touch gestures. The LED-backlit panel brilliantly brings images to life in high-definition while also conserving energy. This all-in-one PC features the 3rd generation Intel Core processor for a truly responsive & HD-enhanced computing performance. Matching eye-catching visuals with ear-pleasing premium audio, the ASUS All-in-One PC ET2411 Series is built with ASUS Sonic Master Technology that delivers enhanced clarity, louder volumes, & more detailed sound. In addition, you can use it as a secondary display by connecting other PCs, laptops & tablet via its HDMI input port. The ASUS All-in-One PC ET2411 Series is a complete system that simplifies your home PC experience. Processor Intel Core i 5 3450 3.1 GHz Turbo Boost to 3.5 G Hz 6MB Cache Intel H61 Chipset Memory 6GB DDR3 RAM Expandable to 8GB 2 x so DIMM Hard Drive 500GB SATA Optical Drive Tray-in Super Multi DVD Software Operating System: Windows 7 Home Premium 64 Display 23.6" (59.9cm), Full HD LED-backlight 16:9, Wide Screen, Resolution: 1920 x 1080 Graphics Intel HD Graphics Audio Built Sonic Master DTS surround Sensation Ultra PC II Networking Wireless: 802.11 b/g/n Wired: 10/100/1000 Mbps

Dimensions Width 590 mm Depth 60-230 mm Height 461 mm Weight 10.8kg Interfaces Side 2 x USB (Universal Serial Bus) 3.0 1 x e-SATA (USB2.0 Combo) 1 x 3 -in-1 Card Reader 1 x Headphone 1 x Microphone Back 2 x USB (Universal Serial Bus) 2.0 1 x HDMI-In 1 x VGA (D-Sub)-Out 1 x RJ45 LAN 1 x Kensington Lock 1 x DC-in Expansion 3-in-1: SD/SDHC/MMC Warranty / Miscellaneous 1 Year Manufacturer Warranty 1.3 Mega Pixel Webcam

...

Asus AM1I-A Socket AM1 VGA DVI HDMI 8-Channel HD Audio Mini ITX Motherboard CPU AMD Socket AM1 Athlon/ Sempron Processors Supports CPU up to 4 cores * Refer to www.asus.com for CPU support list Chipset
- Build in AMD Sempron & Athlon-Series APUs Memory 2 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Single Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard. Graphic Integrated AMD Radeon R Series Graphics in the APU Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots
- 1 x PCIe 2.0 x 4 Storage AMD Sempron & Athlon-Series APUs: 2 x SATA 6 Gb/s port (s), yellow LAN
- Realtek 8111GR, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887-VD 8-Channel High Definition Audio CODEC *2
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking USB (Universal Serial Bus) Ports AMD Sempron & Athlon-Series APUs: 2 x USB (Universal Serial Bus) 3.0/2.0 port (s) (2 at back panel, blue) AMD Sempron & Athlon-Series APUs: 8 x USB (Universal Serial Bus) 2.0/1.1 port (s) (4 at back panel, black, 4 at mid-board) Special Features ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network i Control
- USB (Universal Serial Bus) 3.0 Boost ASUS Quiet Thermal Solution:
- ASUS Fan Xpert ASUS EZ DIY:
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 2
- ASUS My Logo 2 Operating System Support Windows 8.1, 32bit/64bit Windows 8, 32bit/64bit Windows 7, 32bit/64bit Windows XP, 32bit Back I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.0 (blue) 4 x USB (Universal Serial Bus) 2.0 1 x COM port (s) 3 x Audio jack (s) Internal I/O Ports 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x TPM header 1 x LPT header 1 x COM port (s) connector (s) 2 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x 24-pin EATX Power connector (s) 1 x 4-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x Internal speaker connector (s) 1 x System panel (s) Accessories User's manual I/O Shield 2 x SATA 6 Gb/s cable (s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.0, Wf M2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS Crash Free BIOS 3, My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions & ASUS DRAM SPD (Serial Presence Detect) memory information Support Disc Drivers ASUS utilities ASUS Update Anti-virus software (OEM version) Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm )
















...

Asus AM1M-A Socket AM1 VGA DVI HDMI 8-Channel HD Audio m ATX Motherboard CPU: AMD Socket AM1 Athlon„¢/ Sempron„¢ Processors Supports CPU up to 4 cores * Refer to www.asus.com for CPU support list Chipset
- Build in AMD Sempron & Athlon-Series APUs Memory 2 x DIMM, Max. 32GB, DDR3 1866 (O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Single Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard. Graphic Integrated AMD Radeon„¢ R Series Graphics in the APU Multi-VGA output support: HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots 1 x PCIe 2.0 x 16 (x 4 mode) 2 x PCIe 2.0 x 1 Storage AMD Sempron & Athlon-Series APUs: 2 x SATA 6 Gb/s port (s), yellow LAN
- Realtek 8111GR, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887-VD 8-Channel High Definition Audio CODEC *2
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking USB (Universal Serial Bus) Ports ASMedia ASM1042 controller: 2 x USB (Universal Serial Bus) 3.0/2.0 port (s) (2 at back panel, blue) AMD Sempron & Athlon-Series APUs: 8 x USB (Universal Serial Bus) 2.0/1.1 port (s) (4 at back panel, black, 4 at mid-board) AMD Sempron & Athlon-Series APUs: 2 x USB (Universal Serial Bus) 3.0/2.0 port (s) (2 at mid-board) Special Features ASUS 5X Protection :
- ASUS DIGI+ VRM
- 1 + 1 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection
- Short circuit damage prevention
- ASUS ESD Guards
- Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors
- 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O
- 3x more durable corrosion-resistant coating ASUS EPU :
- EPU ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB (Universal Serial Bus) 3.0 Boost
- Disk Unlocker ASUS Quiet Thermal Solution :
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 2
- ASUS My Logo 2 ASUS Q-Design :
- ASUS Q-Slot Operating System Support Windows 8.1, 32bit/64bit Windows 8, 32bit/64bit Windows 7, 32bit/64bit Windows XP, 32bit Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.0 (blue) 4 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O Ports 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x TPM header 1 x COM port (s) connector (s) 2 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) 1 x Chassis Fan connector (s) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 4-pin ATX 12V Power connector (s) 1 x parallel port connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x Internal speaker connector (s) 1 x System panel (s) Accessories User's manual I/O Shield 2 x SATA 6 Gb/s cable (s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI2.0, Wf M2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS Crash Free BIOS 3, My Favorites, Quick Note, Last Modified log, F12 Print Screen, F3 Shortcut functions & ASUS DRAM SPD (Serial Presence Detect) memory information Support Disc Drivers ASUS utilities ASUS Update Anti-virus software (OEM version) Form Factor m ATX Form Factor 8.9 inch x 6.7 inch (22.6 cm x 17 cm )



























...

The AMD Hero Strike the right balance for gamers & enthusiasts; the ROG Crosshair VI Hero has the features they need, the performance they crave, & the easy-to-use interfaces that put it all at their fingertips. Aura Sync lighting & support for 3D-printed parts enable more personalization than ever before, letting users choose their own style to stand out in the crowd. Crosshair VI Hero X370 is a powerful ATX motherboard stacked with exciting innovations & great performance for thrilling gaming experiences. Gear up with stunning Aura Sync illumination, support for 3D-printed custom parts, exceptional Supreme FX audio, M.2 connectivity for lightning-speed transfers & a built-in USB (Universal Serial Bus) 3.1 front-panel connector! Exceptional gaming innovation &8231;3D Printing Friendly: Make your own gadgets & stand out from the crowd. &8231; Water Cooling Zone: Perfectly control your cooling system. &8231;USB 3.1 Front Panel Connector: Advanced connection to this reversible plug-in USB (Universal Serial Bus) 3.1 technology. &8231; Perforated Heat-sink: Angled-facet design that requires high techniques, allowing lighting effects to glow near PCH. Unprecedented gaming experience &8231; Supreme FX S1220 CODEC: High audio performance that takes gamers to the next level. &8231; Sonic Studio III & Sonic Radar III: Amazing sound & superb audio controls. &8231;AURA SYNC: Bright up your build & sync with ASUS gear. &8231;M.2 socket: 32 Gb/s M.2 that give you the fastest & best interface.

Specification CPU AM4 socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports 14nm CPU Chipset AMD X370 Memory AMD Ryzen™ Processors 4 x DIMM, max. 64GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory* AMD 7th Gen A-series/ Athlon™ Processors 4 x DIMM, max. 64GB, DDR4 2133 MHz, non-ECC, un-buffered memory* Dual channel memory architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details. Expansion Slots AMD Ryzen™ Processors
- 2 x PCIe 3.0 x 16 Safe Slots (supports x 16, x 8/x 8) AMD 7th Generation A-series/ Athlon™ Processors
- 1 x PCIe 3.0 x 16 Safe Slot (supports x 8) AMD X370 chipset
- 1 x PCIe 2.0 x 16 (max. at x 4 mode)*
- 3 x PCIe 2.0 x 1 * PCIe X4_3 slot shares bandwidth with PCIe X1_1, PCIe X1_2 & PCIe X1_3. Multi-GPU Supports NVIDIA 2-Way SLI™ Technology Supports AMD Cross Fire X™ Technology Storage AMD Ryzen™ Processors
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (PCIE 3.0 x 4 & SATA modes) storage devices support AMD 7th Generation A-series/ Athlon™ Processors
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (SATA mode) storage devices support AMD X370 chipset with RAID 0, 1, 10 support
- 8 x SATA 6 Gb/s ports LAN Intel Ethernet Controller I211-AT Anti-surge LANGuard ROG Game First IV Audio ROG Supreme FX S1220 8-Channel high-definition CODEC
- Supports up to 32-Bit/192k Hz playback*
- High quality 120 d B SNR stereo playback output & 113 d B SNR recording input
- Impedance sense for front & rear headphone outputs
- ES9023P High Definition DAC
- Supreme FX Shielding Technology
- Jack-detection, Multi-streaming, & Front Panel Jack-retasking
- Optical S/PDIF out port at back panel Audio Feature:
- Sonic Studio III
- Sonic Radar III * Due to limitations in HDA bandwidth, 32-Bit/192k Hz is not supported for 8-Channel audio USB (Universal Serial Bus) AMD Ryzen™ Processors
- 4 x USB (Universal Serial Bus) 3.0 ports (4 ports at back panel[blue]) AMD X370 chipset:
- 1 x USB (Universal Serial Bus) 3.1 front panel connector
- 6 x USB (Universal Serial Bus) 3.0 ports (4 ports at back panel[blue], 2 ports at mid-board [grey])
- 6 x USB (Universal Serial Bus) 2.0 ports (4 ports at back panel, 2 ports at mid-board [black]) ASMedia USB (Universal Serial Bus) 3.1 controller:
- 2 x USB (Universal Serial Bus) 3.1 ports (2 ports at back panel, Type-A & Type-C) ROG Exclusive Features Extreme Engine Digi+ - Micro Fine Alloy Choke - Nex FET MOSFETs - 10K Black Metallic Capacitors Start Button Reset Button Safe Boot Button Retry Button BIOS Flashback Button Clear CMOS Button LN2 Mode ROG RAMDisk Clone Drive ROG RAMCache II Key Bot II - One-click overclocking - Direct Key - CLr CMOS - Power On UEFI BIOS features: - Extreme Tweaker - Tweakers Paradise - ROG SSD Secure Erase - O.C. Profile - Graphics Card Information Preview Special Features ASUS Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, & Turbo App ASUS Exclusive Features - AI Suite 3 ASUS EZ DIY - ASUS Crash Free BIOS 3 - ASUS EZ Flash 3 - ASUS C.P.R. (CPU Parameter Recall) ASUS Q-Design - Safe Slot - Q-Code - Q-Shield - Q-Connector - Q-LED (DRAM[yellow], CPU[red], VGA[white], Boot Device LED[green]) - Q-DIMM Back I/O Ports 1 x Clear CMOS button 1 x BIOS Flashback button 1 x M.2 Wi-Fi Slot 2 x USB (Universal Serial Bus) 3.1 ports (1 x Type-C [black] & 1 x Type-A [red] ) 8 x USB (Universal Serial Bus) 3.0 ports [blue] 4 x USB (Universal Serial Bus) 2.0 ports [black] 1 x Anti-surge LAN (RJ45) port 1 x Optical S/PDIF out 5 x Gold-plated audio jacks Internal connectors 1 x USB (Universal Serial Bus) 3.1 front panel connector 1 x USB (Universal Serial Bus) 3.0 header supports additional 2 USB (Universal Serial Bus) 3.0 ports 1 x USB (Universal Serial Bus) 2.0 header supports additional 2 USB (Universal Serial Bus) 2.0 ports [ via ROG_EXT header ] 8 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIE 3.0 x 4 & SATA modes) 1 x ROG extension (ROG_EXT) header 1 x 4-Pin CPU fan connector 1 x 4-Pin CPU_OPT fan connector 1 x 4-Pin AIO_PUMP connector 1 x 4-Pin W_PUMP+ connector 1 x 3-Pin W_FLOW connector 1 x 2-Pin W_IN connector 1 x 2-Pin W_OUT connector 3 x 4-Pin Chassis fan connectors 1 x Thermal sensor connector 1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector 1 x 4-pin EATX 12V power connector 1 x Start button 1 x Reset button 1 x Safe Boot button 1 x Retry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x System panel connector 1 x Front panel audio connector (AAFP) 2 x Aura RGB Strip headers 1 x TPM connector 1 x Speaker Header Accessory User guide Support DVD I/O Shield 1 x SLI™ HB Bridge (2-way-M) 2 x 2-in-1 SATA 6 Gb/s Cables 1 x Q-Connector 1 x M.2 Screw Package 1 x 3D Printing Mount Screw Package 1 x Extension Cable for RGB strips 1 x ROG Coaster 1 x 10-in-1 ROG cable label 1 x ROG sticker BIOS "128 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, Crash Free BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 Print Screen & ASUS DRAM SPD (Serial Presence Detect) memory information" Manageability Wf M 2.0, WOL by PME, PXE Software Drivers ROG Game First IV* ROG RAMDisk ROG RAMCache II ROG CPU-Z ROG Mem Tweak It Overwolf ROG Keybot II Clone Drive Kaspersky Anti-Virus DAEMON Tools Software ASUS Web Storage ASUS Utilities *ROG Game First IV is only available for Windows 10/8.1 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5cm x 24.4cm)






















...

Features Dual-ball Bearing 0d B Fans runs smoother by reducing friction, further improving 2X longer card lifespan & cooling efficiency. Play in silence with 0d B fans. IP5X-Certified Fans are dust resistant for longer fan lifespan. Industry Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality & best reliability. 144-Hour Test Passed & Top Games Tested for best compatibility. GPU Tweak II with Xsplit Gamecaster provides intuitive performance tweaking & instant gameplay streaming. Product Overview Build for Non-Stop Action ASUS Expedition graphics cards are made for non-stop action, engineered with non-stop durability for 2X longer lifespan & premium reliability. We even test the cards to the limits, with 144 hour of diskless-system tests & extensive checks for compatibility with top games. While GPU Tweak II with XSplit Gamecaster to provide non-stop gaming experience & real-time streaming. NON-STOP DURABILITY Dual-Ball Bearing 0d B Fans Without the problem of oil drying common in sleeve-bearing fans, the dual-ball bearing fan on ASUS Expedition RX 570 lasts 2X longer. With reduced friction, it also runs smoother, further improving card lifespan & cooling efficiency. You can play in true 0d B silence as the 0d B fans remain off up to a set GPU temp level*. *55°C for ASUS Expedition RX 570 IP5X-Certified Dust Resistance Longer Fan Lifespan The fans in ASUS Expedition RX 570 graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for enhanced reliability & a longer lifespan. This stringent certification process ensures ASUS Expedition RX 570 graphics cards provide optimal fan performance, even under severe conditions. Auto-Extreme Technology with Super Alloy Power II ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, & features premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, & lower thermal temperatures for unsurpassed quality & reliability. NON-STOP CHALLENGER 144-hr Diskless Solution Compatibility ASUS operates the i Cafe Labs to certify Expedition graphics cards for use as diskless systems, subjecting the cards to 144 hours of dedicated tests, including a 2-hour reboot test & 15-hour 3D Mark test with heavy loading. Expedition graphics cards are ready to run non-stop — with the smooth performance you dem&. Top Games Tested ASUS i Cafe Labs engineers also subject Expedition graphics cards to lengthy stability tests in an environment that simulates a real-world internet cafe. We test with the top games to assure of the very best gaming experiences! GPU Tweak II with XSplit Gamecaster Intuitive Performance Tweaking Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier & more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximises system performance by removing redundant processes & allocating all available resources automatically. Gaming Booster One-click Performance Up Visual effects: Boost your performance by turning off windows visual effects. System Services: Automatically or manually turn off windows services or process. Memory Defragmentation: Re-arrange & free your system memory without closing any processes. XSplit Gamecaster Instant Gameplay Streaming An included 1-year XSplit Gamecaster premium license* — a $99 USD value — lets you easily stream or record gameplay via a convenient, in-game overlay. The overlay also displays GPU clock speed, temperature, & VRM usage, & has GPU Tweak II controls, so gamers can choose a gaming profile & boost performance with just one click. Specifications Graphics Engine AMD Radeon RX 570 Open GL Open GL4.5 Video Memory GDDR5 4GB Engine Clock 1254 MHz (OC Mode) 1244 MHz (Gaming Mode) Stream Processors 2048 Memory Clock 7000 MHz Memory Interface 256-bit Resolution Digital Max Resolution:5120x 2880 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 1 (Native) (HDMI 2.0) Display Port: Yes x 1 (Native) (Regular DP) HDCP Support: Yes Software ASUS GPU Tweak II & Driver

Dimensions 9.4 " x 5.1 " x 1.5 " Inch 24 x 13 x 3.89 Centimeter Note &65294; To have the best cooling performance, ASUS EX-RX570-4G extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system!

...

PRIME Series ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: it’s time for Prime. The ASUS mainstream motherboard PRIME B350M-A supports AMD Ryzen™ /7th Gen A-series / Athlon™ Processors, featuring with advanced technologies, including 5X Protection III & Safe Slot Core. Ultimate storage speed is elevated by 32 Gb/s M.2 & 10 Gb/s USB (Universal Serial Bus) 3.1 support. Gaming Audio brightens the battlefield with beautiful LED. superb performance &8231;DDR4 Support: Make your memory go faster. &8231; Ultra-fast transfer speed: M.2 onboard speed up to 32 Gbps. &8231; Ultimate-Speed 10 Gbps With USB (Universal Serial Bus) 3.1 Onboard: Enjoy the 10 Gbit/s speed! Gaming Experience &8231;LED-Illuminated Design: Brighten up your build with the gorgeous illuminated audio trace path. &8231; Audio Shielding: Ensures precision analog/digital separation & greatly reduces multi-lateral interference. &8231; Dedicated audio PCB layers: Separate layers for left & right tracks ensures both channels deliver consistent, equal quality. &8231; Premium Japanese audio capacitors: Provide warm, natural & immersive sound with exceptional clarity & fidelity. &8231;FAN RGB LED Control: Give you right to build your exclusive motherboard. Proven Quality 5X Protection III &8231; Safe Slot Core: Fortified PCIe Slot prevents damage &8231;LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges! &8231; Overvoltage Protection: World-class circuit-protecting power design &8231;DIGI+ VRM: Precision control for stable power! &8231; Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! EZ DIY &8231;EZ Flash 3: Get your latest BIOS fast & easy!

Specification CPU AM4 socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. ** Refer to www.asus.com for the AMD CPU support list. Chipset AMD B350 Chipset Memory AMD Ryzen™ Processors 4 x DIMMs, max. 64GB, DDR4 2666/2400/2133 MHz, ECC & non-ECC, un-buffered memory AMD 7th Generation A-series/ Athlon™ Processors 4 x DIMMs, max. 64GB, DDR4 2400/2133 MHz, non-ECC un-buffered memory Dual Channel memory architecture ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List). Expansion Slots AMD Ryzen™ Processors 1 x PCI Express 3.0/2.0 x 16 slot (max.@x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCI Express 3.0/2.0 x 16 slot (max.@x 8 mode) AMD B350 Chipset: 2 x PCI Express 2.0 x 1 slots VGA Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support: HDMI, DVI-D, D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24 Hz / 2560 x 1600@60 Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60 Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60 Hz
- Maximum shared memory of 2048 MB Storage
- 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 & RAID 10 support AMD Ryzen™ Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x 4 & SATA modes)storage devices support*C33* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports * When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports AMD 7th Generation A-series/ Athlon™ Processors
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x 2 & SATA modes)storage devices support*C33* When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports * When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports LAN Realtek 8111H Gigabit LAN Controller Audio Realtek ALC 887-VD2 8-Channel High Definition Audio CODEC * Use a chassis with HD audio module in the front panel to support an 8-channel audio output. USB (Universal Serial Bus) ASMedia USB (Universal Serial Bus) 3.1 controllers:
- 2 x USB (Universal Serial Bus) 3.1 ports (2 ports at back) AMD Ryzen™/7th Generation A-series/ Athlon™ Processors
- 4 x USB (Universal Serial Bus) 3.0 ports (4 ports at back panel) AMD B350 Chipset:
- 2 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports at mid-board)
- 4 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports at mid-board) ASUS Unique Features Dependable Stability ASUS 5X PROTECTION III
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design superb performance UEFI BIOS
- Most advanced options with fast response time Easy PC DIY Safe motherboard mounting - Component-free areas to minimize damage risk Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3 ASUS Quiet Thermal Solution Quiet Thermal Design:
- Stylish Fanless Design: Chipset Heat-sink
- ASUS Fan Xpert Back Panel I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse port (green) 1 x HDMI port 1 x DVI-D port 1 x D-Sub port 1 x LAN (RJ-45) port 2 x USB (Universal Serial Bus) 3.1 ports 4 x USB (Universal Serial Bus) 3.0/2.0 ports 3 x Audio jacks support 8-channel audio output 1 x USB (Universal Serial Bus) 3.0 connector supports additional 2 USB (Universal Serial Bus) 3.0 ports Internal I/O Connectors 2 x USB (Universal Serial Bus) 2.0/1.1 connectors support additional 4 USB (Universal Serial Bus) 2.0/1.1 ports 6 x SATA 6.0 Gb/s connectors 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices, (both SATA & PCIE mode) 1 x COM connector 1 x CPU Fan connector 1 x Fan RGB header 1 x Chassis Fan connector (Support DC & PWM mode) 1 x Front panel audio connector 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 2-pin Clear CMOS 1 x System Panel connector 1 x Speaker connector 1 x S/PDIF out header BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, DMI3.0, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Manageability Wf M 2.0, DMI 3.0, WOL by PME, PXE Accessories 2 x Serial ATA 6.0 Gb/s cables 1 x I/O shield 1 x M.2 screw package 1 x Users manual Support DVD Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) Operating System Windows 10 (64-bit) Form Factor u ATX Form Factor, 9.6" x 9.45" (24.4 cm x 24 cm)

























...

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths Native M.2: Lightning-fast storage speeds Onboard USB (Universal Serial Bus) 3.1: Latest connectivity for ultrafast 10 Gbps transfers One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible
- maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. ASUS Safe Slot Protect your graphics card investment Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, Safe Slot is then firmly anchored to the motherboard through additional solder points. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ESD Guards Electrostatic discharge protection ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/- 6k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future
- thats the ASUS way. Extensive List of Supported Devices View supported devices & Qualified Vendor List for compatible memory The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices
- which

Includes:: thousands of compatible components
- & our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence! Top-to-bottom Reliability ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8, 000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software & safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment. DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Fan Xpert Dedicated CPU & case fan controls Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance & low noise
- & with Prime A320 series boards & their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even

Includes:: Auto-Tuning mode to scan & detect all fan characteristics for single-click customization! Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD B350 Memory AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory AMD 7th Generation A-series/ Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1 Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD B350 chipset 2 x PCIe 2.0 x 1 Storage AMD B350 chipset: 4 x SATA 6 Gb/s port (s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887 8-Channel High Definition Audio CODEC USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 port (s) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) AMD B350 chipset: 4 x USB (Universal Serial Bus) 2.0 port (s) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Operating System Support Windows 10, 64bit Back I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.1 Gen 2 (teal blue) Type-A 4 x USB (Universal Serial Bus) 3.1 Gen 1 (blue) 3 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port (s) connector (s) 4 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x Chassis Fan connector (s) (1 x 4 -pin) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 4-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) 1 x Speaker connector Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows 10 64-bit Form Factor m ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm ) Note *1:AMD Ryzen™ Processor does not support


























...

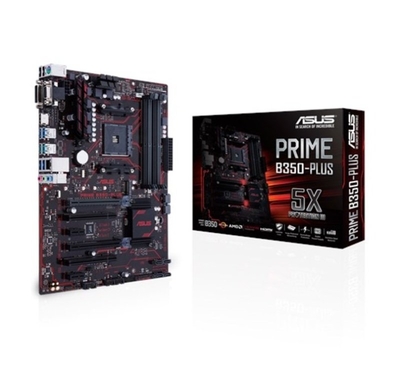

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths Native M.2: Lightning-fast storage speeds One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. Safe Slot Core Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design thats anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ESD Guards Electrostatic discharge protection ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10k V for air discharge & +/- 6k V for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future – thats the ASUS way. Extensive List of Supported Devices View supported devices & Qualified Vendor List for compatible memory The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices — which

Includes:: thousands of compatible components — & our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence! DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Fan Xpert Dedicated CPU & case fan controls Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance & low noise
- & with Prime B350 series boards & their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even

Includes:: Auto-Tuning mode to scan & detect all fan characteristics for single-click customization! Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD B350 Memory AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory *1 AMD 7th Generation A-series/ Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support: DVI-D/RGB ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD B350 chipset 2 x PCIe 2.0 x 1 Storage AMD B350 chipset: 4 x SATA 6 Gb/s port (s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek ALC887 8-Channel High Definition Audio CODEC USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD B350 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (2 at mid-board) AMD B350 chipset: 6 x USB (Universal Serial Bus) 2.0 port (s) (2 at back panel, , 4 at mid-board) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Operating System Support Windows 10, 64bit Back I/O Ports 1 x PS/2 keyboard (violet) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port (s) 4 x USB (Universal Serial Bus) 3.1 Gen 1 (blue) 2 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O Ports 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) (19-pin) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port (s) connector (s) 4 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 1 x Chassis Fan connector (s) (1 x 4 -pin) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) 1 x Speaker connector Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, Pn P, Wf M2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS Crash Free BIOS 3, My Favorites, Last Modified log, F12 Print Screen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows 10 64-bit Form Factor m ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm ) Note 1* Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM Per Channel. 2*.AMD Ryzen™ Processor does not support





















...

Prime ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design & engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, & immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy & affordably Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. * Specifications & features vary by model, & all images are illustrative. Please refer to

Specification & gallery pages for full details Cooler by Design PRIME B450M-K II is engineered with an array of hybrid fan headers & features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool & stable under intense workloads. Multiple temperature sources: Each header can monitor & react to dedicated thermal sensors. Smart protection: A dedicated integrated circuit protects the fan header, including short circuit & over temperature protections. 4-Pin PWM/DC Fan: The onboard CHA FAN header supports PWM & DC mode. PCIe 3.0 M.2 (up to 32 Gbps) Achieve speed with onboard M.2 M.2 Slot supports data-transfer speed up to 32 Gbps via x 4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

...

Features 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for both PCIe slot & audio trace paths Native M.2: Lightning-fast storage speeds Onboard USB (Universal Serial Bus) 3.1 Gen 2: Latest connectivity for ultrafast 10 Gbps transfers One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3 Product Overview ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization & tuning, & the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible
- maximizing performance, stability & compatibility for the very best DIY PC experiences. Simply stated: its time for Prime. ASUS Safe Slot Protect your graphics card investment Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, Safe Slot is then firmly anchored to the motherboard through additional solder points. Built to Last ASUS is the worlds foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1, 000 components & devices, & each new model undergoes a minimum of 8, 000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments & applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME X370 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, & exacting standards to guarantee the quality & long-term durability of your motherboard. That means exceptional protection & stability for your build — thanks to decades of engineering experience from the worlds leading motherboard br&. Safe Slot Core Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design thats anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. LANGuard Pumped-up throughput. 2.5x higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput, plus electrostatically guarded & surge-protected components for greater tolerance to static electricity & enhanced protection against surges. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, & audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. Proven Compatibility Tested to be compatible with 1, 000+ CPUs, DDR4 memory modules, graphics cards & more Having the freedom to pick & choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components & devices, giving you the freedom to build & upgrade without frustration. Compatible today & compatible far into the future
- thats the ASUS way. Great Compatibility with ASUS Products ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime X370 series, so you can complete your custom motherboard build with confidence! DDR4 Support With DDR4, youll accelerate memory frequencies up to an incredible to 3200 M Hz! & ASUS works with almost every DDR4 memory vendor, so youre assured the best compatibility. Brighten Up Your Build LED-illuminated control for PCIe slot & trace paths Built-in LED lighting options can illuminate your build in a variety of mesmerizing styles. With specially-designed Fan RGB header control, you can even personalize your own fan lighting scheme with the exclusive AMD RGB Fan! AMD CPU & Chipset Features Ready for AMD AM4-socket Ryzen, 7th Generation A-series APUs & Athlon APUs This motherboard supports AMD Ryzen™ processors, 7th Generation A-series accelerated processing units (APUs) & Athlon™ CPUs. The high-performance Ryzen™ processor supports up to eight cores, & is based on the innovative Zen core architecture. The 7th Generation A-series APUs feature integrated AMD Radeon R-series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5 Gbps USB (Universal Serial Bus) 3.1 Gen 1 & 16 PCI Express 3.0/2.0 lanes for superb performance. AMD X370 Chipset The AMD X370 chipset delivers outstanding overclocking capabilities for the latest AMD AM4-socket Ryzen™ processors, 7th Generation A-series APUs & Athlon™ CPUs. It provides two 10 Gbps USB (Universal Serial Bus) 3.1 Gen 2 ports, & six 6 Gbps SATA ports for faster data retrieval. Specifications CPU AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/ Athlon™ Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list Chipset AMD X370 Memory AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4 3200 (O.C.)/2933 (O.C.)/2666/2400/2133 MHz ECC & non-ECC, Un-buffered Memory *1 AMD 7th Generation A-series/ Athlon™ Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB Multi-GPU Support Supports AMD Cross Fire X™ Technology Expansion Slots AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x 16 (x 16 mode) AMD 7th Generation A-series/ Athlon™ Processors 1 x PCIe 3.0/2.0 x 16 (x 8 mode) AMD X370 chipset 1 x PCIe 2.0 x 16 (max at x 4 mode) 2 x PCIe 2.0 x 1 2 x PCI Storage AMD X370 chipset: 6 x SATA 6 Gb/s port (s), Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/ Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode) LAN Realtek RTL8111H, 1 x Gigabit LAN Controller (s) ASUS LAN Guard Audio Realtek ALC887-VD2 8-Channel High Definition Audio CODEC Audio Feature :
- LED-illuminated design
- Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation & greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left & right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural & immersive sound with exceptional clarity & fidelity USB (Universal Serial Bus) Ports AMD Ryzen™/7th Generation A-series/ Athlon™ Processors: 4 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (4 at back panel, blue) AMD X370 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 port (s) (2 at back panel, teal blue) AMD X370 chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 1 port (s) (2 at mid-board) AMD X370 chipset: 6 x USB (Universal Serial Bus) 2.0 port (s) (2 at back panel, black, 4 at mid-board) Special Features ASUS 5X Protection III :
- ASUS Safe Slot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes & static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+ ASUS EZ DIY :
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard/mouse combo port (s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port (s) 2 x USB (Universal Serial Bus) 3.1 4 x USB (Universal Serial Bus) 3.1 Gen 1 2 x USB (Universal Serial Bus) 2.0 3 x Audio jack (s) Internal I/O Ports 1 x Fan RGB header 1 x USB (Universal Serial Bus) 3.1 Gen 1 connector (s) support (s) additional 2 USB (Universal Serial Bus) 3.1 Gen 1 port (s) 2 x USB (Universal Serial Bus) 2.0 connector (s) support (s) additional 4 USB (Universal Serial Bus) 2.0 port (s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port (s) connector (s) 6 x SATA 6 Gb/s connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 2 x Chassis Fan connector (s) (2 x 4 -pin) 1 x S/PDIF out header (s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) 1 x Clear CMOS jumper (s) Accessories Users manual I/O Shield 2 x SATA 6 Gb/s cable (s) 1 x M.2 Screw Package Operating System Windows 10 64-bit Form Factor ATX Form Factor 12 inch x 9.35 inch (30.5 cm x 23.7 cm ) Note *1 Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM. *2 AMD Ryzen™ Processor does not support

























...
