Features NVIDIA Ge Force GTX 1080 Ti is the fastest gaming GPU that delivers 35% faster performance than the Ge Force GTX 1080. Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer. Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. ASUS Fan Connect II equips with hybrid controlled fan headers for optimal system cooling. Industry Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality & best reliability. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization. VR-friendly HDMI ports let you enjoy VR experiences anytime without having to swap cables. GPU Tweak II with XSplit Gamecaster provides intuitive performance tweaking & real-time streaming. OUTSHINE THE COMPETITION ROG Strix Ge Force GTX 1080 Ti gaming graphics cards are packed with exclusive ASUS technologies, including all-new Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer, & Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. While ASUS Fan Connect II features 4-pin, hybrid-controlled headers connected to system fans for optimal system cooling. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization & VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences. ROG Strix Ge Force GTX 1080 Ti also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking & instant gameplay streaming. ASUS Aura Sync Outshine The Competition Featuring Aura RGB Lighting on both the shroud & backplate, ROG Strix graphics cards are capable of displaying millions of colors & six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard. Gaming Performance, Brilliantly Boosted Boost Game in SLI Configuration with ROG SLI HB Bridge The all-new ROG SLI HB (High-Bandwidth) Bridge doubles the available transfer bandwidth of the previous generation to deliver gloriously detailed graphics & silky smooth gameplay. Support for multiple 2-way configurations — both 3-slot & 4-slot — provide maximum flexibility. ROG SLI HB Bridge features ASUS-exclusive Aura RGB lighting that displays millions of colors to express your unique gaming style, & Aura Sync technology that perfectly synchronizes lighting for a system that really shines. Specifications Graphics Engine NVIDIA Ge Force GTX 1080 TI Bus Standard PCI Express 3.0 Open GL Open GL4.5 Video Memory GDDR5X 11GB Engine Clock OC Mode
- GPU Boost Clock: 1708 MHz, GPU Base Clock: 1594 MHz Gaming Mode (Default)
- GPU Boost Clock: 1683 MHz, GPU Base Clock: 1569 MHz CUDA Core 3584 Memory Clock 11100 MHz (OC Mode) 11010 MHz (Gaming Mode) (Default) Memory Interface 352-bit Resolution Digital Max Resolution:7680x 4320 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 2 (Native) (HDMI 2.0) Display Port: Yes x 2 (Native) (Regular DP) HDCP Support: Yes Accessories 1 x ROG Velcro Hook & Loop 1 x Power cable Power Connectors 2 x 8-pin Software ASUS GPU Tweak II & Driver Aura (Graphics Card) Utility

Dimensions 11.73 " x 5.28 " x 2.07 " Inch 29.8 x 13.4 x 5.25 Centimeter Note &65294; To have the best cooling performance, ASUS STRIX-GTX1080TI extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! &65294; Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/



...

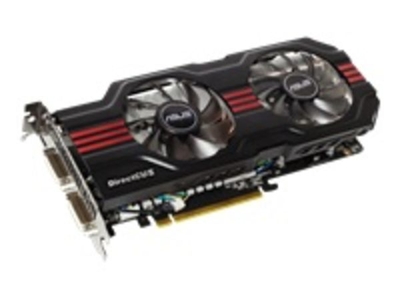

ASUS is proud to introduce the new ASUS ENGTX550 Ti DC to all our users. The card also boasts Super Alloy Power which can create a 15% performance increase, 2.5 longer product life span & a 35& Euml;šC cooler operation. In addition to this, the engine clock runs at a Pre Overclocked 910 M Hz, allowing users to enjoy high speed & an unprecedented gaming experience. Super Alloy Power is a special blend of elements formed using an ASUS exclusive formula, under extreme pressure & temperatures. The metals are highly-magnetic, heat-resistant & anti-corrosive used to reduce power loss, enhance durability & achieve cooler operation. Super Hybrid Engine is an intelligent power consumption optimizer that switches between high- & low-intensity power profiles in real-time. This in turn can provide up to 15% enhanced performance. With exclusive Voltage Tweak technology also being a key feature of this product, the ENGTX550 Ti DC/2DI/1GD5 covers users for every possible over-clocking & over-volting scenario. With the complete package offered by this card users can easily boost their performance by up to 50%! Pre Overclocked GPU: 910 Mhz! Voltage Tweak: to crank up performance by 50%. Super Alloy Power: Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Gamer OSD: Real-time overclocking, benchmarking & video capturing in any PC game! Splendid: Watching movies on PC is as good as on Top-of-the-line consumer television. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. NVIDIA 3D Vision„¢ Ready: The only full 1080p HD solution for 3D games, 3D movies & 3D pictures. NVIDIA Phys X ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters. Ge Force CUDA Support: Unlocks the power of GPUs processor cores to accelerate the most demanding system tasks. Key specification: Graphics Engine Ge Force GTX550 Ti Bus Standard PCI Express 2.0 Video Memory 1G GDDR5 Engine Clock 910 MHz CUDA Cores 192 Shader Clock 1820 MHz Memory Clock 4104 M Hz (1026 M Hz GDDR5) Memory Interface 192 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output 1 x Native DVI Output 1 x DVI-I Native HDMI Output 1x Native HDMI HDCP compliant
- YES Dimension The card size is 9.54 x 5.5 x 1.54mm
...

Specifications Graphics Engine
- NVIDIA Ge Force GTX 550 Ti Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine


...

Factory overclocked to performs at 910 MHz faster than stock performance, resulting in higher frame rates in games. Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Precision mounted Direct CU copper heatpipes in direct contact with the GPU for rapid heat dissipation
- creating 20% cooler & quiet performance in idle.
...

Top-selected & overclocked to 850 M Hz, 40 M Hz more than generic for faster & smoother performance Speed up heat dissipation with doubled airflow via exclusive Direct CU dual fan design Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up faster clock speeds with exclusive Voltage Tweak Specifications Graphics Engine
- NVIDIA Ge Force GTX 560 Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine Clock
- 850 MHz CUDA Core
- 336 Shader Clock
- 1700 MHz Memory Clock
- 4200 MHz (1050 MHz GDDR5) Memory Interface
- 256-bit Resolution D-Sub Max Resolution
- 2048x 1536 DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 HDMI Output
- Yes x 1 (Mini HDMI) HDCP Support
- Yes

Dimensions
- 9 " x 4.4 " Inch















...

ASUS GTX 560 Direct CU graphics card provides cooler & faster performance Direct CU copper heat pipes directly contact with the GPU for rapid heat dissipation for up to 20%* cooler operation compared to reference Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up faster clock speeds with exclusive Voltage Tweak Specifications Graphics Engine
- NVIDIA Ge Force GTX 560 Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine Clock
- 810 MHz CUDA Core
- 336 Shader Clock
- 1620 MHz Memory Clock
- 4008 MHz (1002 MHz GDDR5) Memory Interface
- 256-bit Resolution D-Sub Max Resolution
- 2048x 1536 DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 HDMI Output
- Yes x 1 (Mini HDMI) HDCP Support
- Yes

Dimensions
- 9.8 " x 5.03 " inch Power
- 2 x 6pin PCI-E connectors
















...

Top-selected & overclocked to 900 M Hz, 80 M Hz higher than reference for faster & smoother performance Speed up heat dissipation with doubled airflow via exclusive Direct CU dual fan design Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up 50% faster clock speeds with exclusive Voltage Tweak ...

Pre Overclocked GPU 830 Mhz! Voltage Tweak to crank up performance by 50%. Super Alloy Power Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Gamer OSD Real-time overclocking, benchmarking & video capturing in any PC game! Splendid Watching movies on PC is as good as on Top-of-the-line consumer television. Using the unique ASUS Direct CU II Cooler the airflow is doubled & the noise level is greatly reduced by using flattened copper heat pipes which directly contact the GPU core to speed up heat dissipation for a 20%* cooler performance compared to reference. Keeping the card temperatures low also results in quieter operations thanks to reduced fan speeds! The card also boasts Super Alloy Power which can create a 15% performance increase, 2.5 longer product life span & a 35& Euml;šC cooler operation. In addition to this, the engine clock runs at a Pre Overclocked 830 M Hz, allowing users to enjoy high speed & an unprecedented gaming experience. Super Alloy Power is a special blend of elements formed using an ASUS exclusive formula, under extreme pressure & temperatures. The metals are highly-magnetic, heat-resistant & anti-corrosive used to reduce power loss, enhance durability & achieve cooler operation. Features Microsoft Windows 7 Support: Enable PC users to enjoy an advanced computing experience. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. NVIDIA 3D Vision„¢ Ready: The only full 1080p HD solution for 3D games, 3D movies & 3D pictures. NVIDIA Phys X ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters. Ge Force CUDA Support: Unlocks the power of GPUs processor cores to accelerate the most demanding system tasks.

Specification Graphics Engine Ge Force GTX560 Ti Bus Standard PCI Express 2.0 Video Memory 1G GDDR5 Engine Clock 830 MHz CUDA Cores 384 Shader Clock 1660 MHz Memory Clock 4000 M Hz (1000 M Hz GDDR5) Memory Interface 256 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output 1 x DVI-to-D-sub adaptor DVI Output 2 x DVI-I HDMI Output 1x Native HDMI (Mini HDMI) HDCP compliant YES

...

Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Based on ASUS Direct CU architecture, which uses copper heat pipes in direct contact with the GPU to speed up heat dissipation for over 20% cooler performance, Direct CU II takes cooling further with twin 80 mm fans for 600% airflow. Factory overclocked to perform at 742 MHz, higher than stock performance, resulting in higher frame rates in games. Real-time overclocking, benchmarking & video capturing in any PC game! Optimizes colors in various entertainment scenarios with five special modes
- standard, game, scenery, night view & theater. It supports multi-GPU technology for extreme performance ode. Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters.
...

Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Based on ASUS Direct CU architecture, which uses copper heat pipes in direct contact with the GPU to speed up heat dissipation for over 20% cooler performance, Direct CU II takes cooling further with twin 100 mm fans for 600% airflow. Specifications Graphics Engine
- NVIDIA Ge Force GTX 580 Bus Standard - PCI Express 2.0 Video Memory
- GDDR5 1536MB Engine Clock
- 782 MHz Memory Clock
- 4008 MHz (1002 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 384-bit DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 (DVI-I) HDMI Output
- Yes x 1 Display Port
- Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x DVI to D-Sub adaptor 1 x Extended SLI cable ASUS Features Direct CU Series Super Alloy Power

Dimensions
- 11.5 " x 5 " Inch Note
- To have the best cooling performance ASUS ENGTX580 DCII/2DIS/1536MD5 extends the Fansink to 2.5 slot, please check your motherboard slot space before SLI Dual 8pin Power Connector is required for the best performance













...
