Asus Ge Force GTX 1060 Turbo 6GB GDDR5 Dula Link DVI-D HDMI Display Port PCI-E Graphics Card AUTO-EXTREME TECHNOLOGY An industry-only, 100% automated production process that incorporates Super Alloy Power II components for premium quality & best reliability. VR-FRIENDLY HDMI PORTS Let you connect a VR device & display at the same time & enjoy immersive virtual reality experiences without having to swap cables. Customizable Backlit Logo ASUS Turbo GTX 1060 comes with an LED backlit ASUS logo that you can swap with your own custom design for a truly unique look. GPU Tweak II with Xsplit Gamecaster Tweak Till Your Hearts Content With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, & features Game Booster to maximize graphics performance & XSplit Gamecaster to stream or record your gameplay. ASUS Features Gigantic 6GB GDDR5 Memory: On-board memory for the best gaming experience & the best resolution GPU Tweak II: GPU Tweak II helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Graphics GPU Features NVIDIA Adaptive V-Sync: NVIDIA Adaptive Vertical Sync adjusts VSync to current frame rates for maximum playability NVIDIA Phys X ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters. NVIDIA 3D Vision Surround Ready: Bring games to life with NVIDIA Surround multi-monitor gaming on a single card PCIE 3.0: Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication Specifications Graphics Engine NVIDIA Ge Force GTX 1060 Bus Standard PCI Express 3.0 Open GL Open GL 4.5 Video Memory 6GB GDDR5 GPU boost Clock 1708 MHz GPU base Clock 1506 MHz CUDA cores 1280 Memory Clock 8008 MHz Memory Interface 192-bit DVI Output 1x Native Dual-link DVI-D HDMI Output 2x Native HDMI 2.0 HDCP compliant YES Display Port 2x Native Display Port 1.4 Software Bundled ASUS GPU Tweak II & Driver Max. Digital Resolution 7680 x 4320 Dimension The card size is 10.5 x 4.376 x 1.5 inches 26.67 x 11.12 x 3.81 cm ...

Asus STRIX-GTX1080-8G-GAMING 8GB GDDR5X Dual-Link DVI-D HDMI Display Port PCI-E Graphics Card DIRECTCU III WITH PATENTED WING-BLADE FANS Direct CU III features exclusive direct-GPU contact heat pipes with Patented Triple Wing-Blade 0d B Fan Design to deliver max air flow for 30% cooler & 3X quieter performance. AURA RGB LIGHTING Aura RGB Lighting displays millions of color & six lighting effects to express your own unique style. AUTO-EXTREME TECHNOLOGY An industry-only, 100% automated production process that incorporates Super Alloy Power II components for premium quality & best reliability. VR-FRIENDLY HDMI PORTS Let you connect a VR device & display at the same time & enjoy immersive virtual reality experiences without having to swap cables. GPU Tweak II with Xsplit Gamecaster Tweak Till Your Hearts Content With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, & features Game Booster to maximize graphics performance & XSplit Gamecaster to stream or record your gameplay. ASUS FANCONNECT Featuring two 4-pin GPU-controlled headers that can be connected to system fans for targeted supplemental cooling & optimal thermal performance. Gigantic 8GB GDDR5X Memory: On-board memory for the best gaming experience & the best resolution GPU Tweak II: GPU Tweak II helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. NVIDIA Adaptive V-Sync:NVIDIA Adaptive Vertical Sync adjusts VSync to current frame rates for maximum playability NVIDIA Phys X ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters. SLI Support: Multi-GPU technology for extreme performance PCIE 3.0: Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication Hardware Specification Model STRIX-GTX1080-8G-GAMING Graphics Engine NVIDIA Ge Force GTX 1080 Bus Standard PCI Express 3.0 Open GL Open GL 4.5 Video Memory 8GB GDDR5X GPU boost Clock 1733 MHz GPU base Clock 1607 MHz CUDA cores 2560 Memory Clock 10 Gbps Memory Interface 256-bit DVI Output 1x Native Dual-link DVI-D HDMI Output 2x Native HDMI 2.0 HDCP compliant YES Display Port 2x Native Display Port 1.4 Accessory Bundled 2x ROG Velcro Hook & Loop Software Bundled ASUS GPU Tweak II & Driver Max. Digital Resolution 7680 x 4320 Dimension The card size is 11.73 x 5.28 x 1.57 inches 29.8 x 13.4 x 4 cm ...

Features NVIDIA Ge Force GTX 1080 Ti is the fastest gaming GPU that delivers 35% faster performance than the Ge Force GTX 1080. Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer. Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. ASUS Fan Connect II equips with hybrid controlled fan headers for optimal system cooling. Industry Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality & best reliability. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization. VR-friendly HDMI ports let you enjoy VR experiences anytime without having to swap cables. GPU Tweak II with XSplit Gamecaster provides intuitive performance tweaking & real-time streaming. Overview Patented Wing-Blade Design Max Air Flow with 105% More Air Pressure Patented wing-blade fans delivers maximum air flow & 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards. 40% More Heat Dissipation Area Up to 30% Cooler & 3X Quieter Gaming Performance New ROG Strix graphics are constructed with a 2.5-slot width, providing 40% more heat sink surface area for heat dissipation compared to previous 2-slot designs for dramatically cooler & quieter performance. * Images for reference only. OUTSHINE THE COMPETITION ROG Strix Ge Force GTX 1080 Ti gaming graphics cards are packed with exclusive ASUS technologies, including all-new Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer, & Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. While ASUS Fan Connect II features 4-pin, hybrid-controlled headers connected to system fans for optimal system cooling. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization & VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences. ROG Strix Ge Force GTX 1080 Ti also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking & instant gameplay streaming. ASUS Aura Sync Outshine The Competition Featuring Aura RGB Lighting on both the shroud & backplate, ROG Strix graphics cards are capable of displaying millions of colors & six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard. Gaming Performance, Brilliantly Boosted Boost Game in SLI Configuration with ROG SLI HB Bridge The all-new ROG SLI HB (High-Bandwidth) Bridge doubles the available transfer bandwidth of the previous generation to deliver gloriously detailed graphics & silky smooth gameplay. Support for multiple 2-way configurations
- both 3-slot & 4-slot
- provide maximum flexibility. ROG SLI HB Bridge features ASUS-exclusive Aura RGB lighting that displays millions of colors to express your unique gaming style, & Aura Sync technology that perfectly synchronizes lighting for a system that really shines. LEVEL UP PERFORMANCE Specifications Graphics Engine NVIDIA Ge Force GTX 1080 TI Bus Standard PCI Express 3.0 Open GL Open GL4.5 Video Memory GDDR5X 11GB Engine Clock OC Mode
- GPU Boost Clock: 1620 MHz, GPU Base Clock: 1506 MHz Gaming Mode (Default)
- GPU Boost Clock: 1582 MHz, GPU Base Clock: 1480 MHz CUDA Core 3584 Memory Clock 11010 MHz Memory Interface 352-bit Resolution Digital Max Resolution:7680x 4320 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 2 (Native) (HDMI 2.0) Display Port: Yes x 2 (Native) (Regular DP) HDCP Support: Yes Accessories 1 x Power cable 1 x ROG Velcro Hook & Loop Power Connectors 2 x 8-pin Software ASUS GPU Tweak II & Driver Aura (Graphics Card) Utility

Dimensions 11.73 " x 5.28 " x 2.07 " Inch 29.8 x 13.4 x 5.25 Centimeter Note &65294; To have the best cooling performance, ASUS STRIX-GTX1080TI extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! &65294; Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/ Aura (Graphics Card) Utility





...

Features NVIDIA Ge Force GTX 1080 Ti is the fastest gaming GPU that delivers 35% faster performance than the Ge Force GTX 1080. Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer. Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. ASUS Fan Connect II equips with hybrid controlled fan headers for optimal system cooling. Industry Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality & best reliability. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization. VR-friendly HDMI ports let you enjoy VR experiences anytime without having to swap cables. GPU Tweak II with XSplit Gamecaster provides intuitive performance tweaking & real-time streaming. OUTSHINE THE COMPETITION ROG Strix Ge Force GTX 1080 Ti gaming graphics cards are packed with exclusive ASUS technologies, including all-new Max Contact Technology that is 2X more contact with GPU for enhanced thermal transfer, & Patented Wing-Blade IP5X-Certified Fans for maximum airflow & longer fan lifespan. While ASUS Fan Connect II features 4-pin, hybrid-controlled headers connected to system fans for optimal system cooling. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization & VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences. ROG Strix Ge Force GTX 1080 Ti also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking & instant gameplay streaming. ASUS Aura Sync Outshine The Competition Featuring Aura RGB Lighting on both the shroud & backplate, ROG Strix graphics cards are capable of displaying millions of colors & six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard. Gaming Performance, Brilliantly Boosted Boost Game in SLI Configuration with ROG SLI HB Bridge The all-new ROG SLI HB (High-Bandwidth) Bridge doubles the available transfer bandwidth of the previous generation to deliver gloriously detailed graphics & silky smooth gameplay. Support for multiple 2-way configurations — both 3-slot & 4-slot — provide maximum flexibility. ROG SLI HB Bridge features ASUS-exclusive Aura RGB lighting that displays millions of colors to express your unique gaming style, & Aura Sync technology that perfectly synchronizes lighting for a system that really shines. Specifications Graphics Engine NVIDIA Ge Force GTX 1080 TI Bus Standard PCI Express 3.0 Open GL Open GL4.5 Video Memory GDDR5X 11GB Engine Clock OC Mode
- GPU Boost Clock: 1708 MHz, GPU Base Clock: 1594 MHz Gaming Mode (Default)
- GPU Boost Clock: 1683 MHz, GPU Base Clock: 1569 MHz CUDA Core 3584 Memory Clock 11100 MHz (OC Mode) 11010 MHz (Gaming Mode) (Default) Memory Interface 352-bit Resolution Digital Max Resolution:7680x 4320 Interface DVI Output: Yes x 1 (Native) (DVI-D) HDMI Output: Yes x 2 (Native) (HDMI 2.0) Display Port: Yes x 2 (Native) (Regular DP) HDCP Support: Yes Accessories 1 x ROG Velcro Hook & Loop 1 x Power cable Power Connectors 2 x 8-pin Software ASUS GPU Tweak II & Driver Aura (Graphics Card) Utility

Dimensions 11.73 " x 5.28 " x 2.07 " Inch 29.8 x 13.4 x 5.25 Centimeter Note &65294; To have the best cooling performance, ASUS STRIX-GTX1080TI extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! &65294; Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/



...

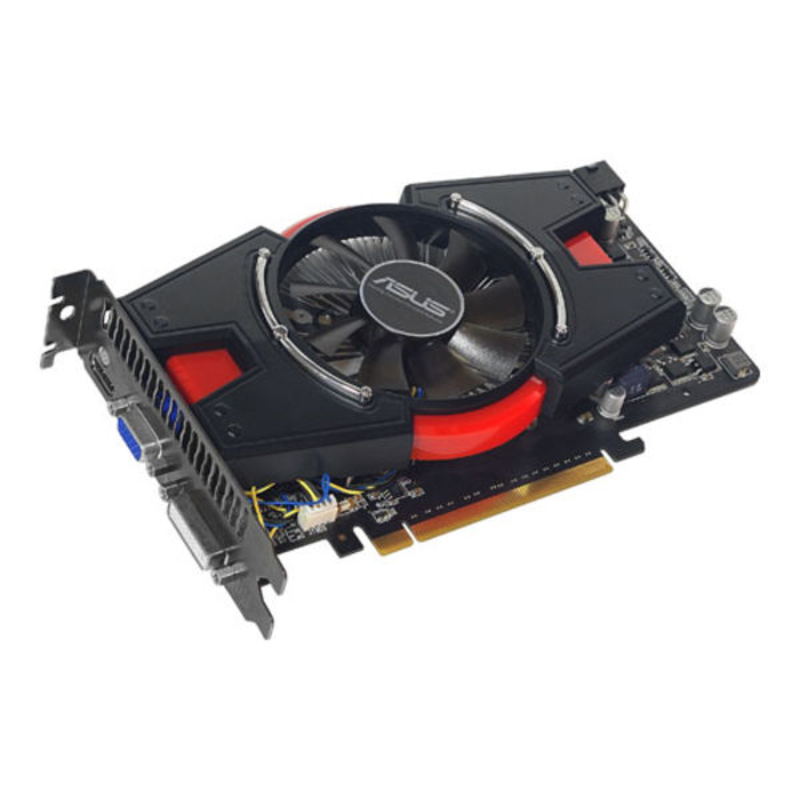

ASUS is proud to introduce the new ASUS ENGTX550 Ti DC to all our users. The card also boasts Super Alloy Power which can create a 15% performance increase, 2.5 longer product life span & a 35& Euml;šC cooler operation. In addition to this, the engine clock runs at a Pre Overclocked 910 M Hz, allowing users to enjoy high speed & an unprecedented gaming experience. Super Alloy Power is a special blend of elements formed using an ASUS exclusive formula, under extreme pressure & temperatures. The metals are highly-magnetic, heat-resistant & anti-corrosive used to reduce power loss, enhance durability & achieve cooler operation. Super Hybrid Engine is an intelligent power consumption optimizer that switches between high- & low-intensity power profiles in real-time. This in turn can provide up to 15% enhanced performance. With exclusive Voltage Tweak technology also being a key feature of this product, the ENGTX550 Ti DC/2DI/1GD5 covers users for every possible over-clocking & over-volting scenario. With the complete package offered by this card users can easily boost their performance by up to 50%! Pre Overclocked GPU: 910 Mhz! Voltage Tweak: to crank up performance by 50%. Super Alloy Power: Provides 15% performance increase, 2.5 times longer product lifespan & 350C cooler operation. Gamer OSD: Real-time overclocking, benchmarking & video capturing in any PC game! Splendid: Watching movies on PC is as good as on Top-of-the-line consumer television. Direct X 11 Ready: Bring new levels of visual realism to gaming. SLI Support: Multi GPU Technology for Extreme performance. NVIDIA 3D Vision„¢ Ready: The only full 1080p HD solution for 3D games, 3D movies & 3D pictures. NVIDIA Phys X ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, & lifelike characters. Ge Force CUDA Support: Unlocks the power of GPUs processor cores to accelerate the most demanding system tasks. Key specification: Graphics Engine Ge Force GTX550 Ti Bus Standard PCI Express 2.0 Video Memory 1G GDDR5 Engine Clock 910 MHz CUDA Cores 192 Shader Clock 1820 MHz Memory Clock 4104 M Hz (1026 M Hz GDDR5) Memory Interface 192 bit DVI Max. Resolution 2560 * 1600 DSub Max. Resolution 2048 * 1536 D-sub Output 1 x Native DVI Output 1 x DVI-I Native HDMI Output 1x Native HDMI HDCP compliant
- YES Dimension The card size is 9.54 x 5.5 x 1.54mm
...

Factory overclocked to performs at 910 MHz faster than stock performance, resulting in higher frame rates in games. Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Precision mounted Direct CU copper heatpipes in direct contact with the GPU for rapid heat dissipation
- creating 20% cooler & quiet performance in idle.
...

Top-selected & overclocked to 850 M Hz, 40 M Hz more than generic for faster & smoother performance Speed up heat dissipation with doubled airflow via exclusive Direct CU dual fan design Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up faster clock speeds with exclusive Voltage Tweak Specifications Graphics Engine
- NVIDIA Ge Force GTX 560 Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine Clock
- 850 MHz CUDA Core
- 336 Shader Clock
- 1700 MHz Memory Clock
- 4200 MHz (1050 MHz GDDR5) Memory Interface
- 256-bit Resolution D-Sub Max Resolution
- 2048x 1536 DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 HDMI Output
- Yes x 1 (Mini HDMI) HDCP Support
- Yes

Dimensions
- 9 " x 4.4 " Inch















...

Factory overclocked to performs at an incredible 925 MHz, 115 MHz faster than stock performance, resulting in higher frame rates in games. Based on ASUS Direct CU architecture, which uses copper heat pipes in direct contact with the GPU to speed up heat dissipation for over 20% cooler performance, Direct CU II takes cooling further with twin 80 mm fans for doubled airflow. Super Alloy Power technology uses special alloy formula in critical power delivery components for a 15% performance boost, 35°C cooler operation & 2.5 times longer lifespan. Real-time overclocking, benchmarking & video capturing in any PC game! ...

ASUS GTX 560 Direct CU graphics card provides cooler & faster performance Direct CU copper heat pipes directly contact with the GPU for rapid heat dissipation for up to 20%* cooler operation compared to reference Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up faster clock speeds with exclusive Voltage Tweak Specifications Graphics Engine
- NVIDIA Ge Force GTX 560 Bus Standard
- PCI Express 2.0 Video Memory
- GDDR5 1GB Engine Clock
- 810 MHz CUDA Core
- 336 Shader Clock
- 1620 MHz Memory Clock
- 4008 MHz (1002 MHz GDDR5) Memory Interface
- 256-bit Resolution D-Sub Max Resolution
- 2048x 1536 DVI Max Resolution
- 2560x 1600 DVI Output
- Yes x 2 HDMI Output
- Yes x 1 (Mini HDMI) HDCP Support
- Yes

Dimensions
- 9.8 " x 5.03 " inch Power
- 2 x 6pin PCI-E connectors
















...

Top-selected & overclocked to 900 M Hz, 80 M Hz higher than reference for faster & smoother performance Speed up heat dissipation with doubled airflow via exclusive Direct CU dual fan design Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan & 35C cooler operation Crank up 50% faster clock speeds with exclusive Voltage Tweak ...
