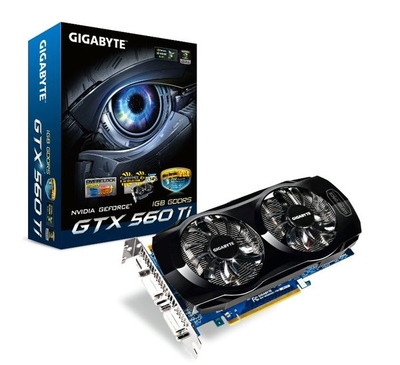

Gigabyte GTX 560Ti OC 1GB GDDR5 Dual DVI Mini HDMI Out PCI-E Graphics
Card

Product Description

WINDFORCETM 2X Anti-turbulence inclined-fin design Minimize flow turbulence between fans Enhance heat dissipation of hot area right underneath each fan 7% performance better than stock GTX 560 Ti 14% cooler than GTX 560 Ti stock cooler Creat effective air flow system in chassis Ultra quite PWM fan 80mm PWM fan; run up to 3300 RPM 23 d B in 2D mode; 43 d B at full speed Pure copper heat pipe Four pure copper heat pipes enhance heat dissipation Features Powered by NVIDIA Ge Force GTX 560 Ti GPU 384 CUDA Core Microsoft Direct X 11 & Open GL 4.1 support Supports PCI Express 2.0 interface Support NVIDIA Surround, 3D Vision, Phys X, CUDA, , & re Video HD Technology Support 2 way SLI Features Dual Link DVI-I*2/ mini HDMI 500 Watt or greater power supply recommended

Specification Core Clock 900 (std 822) MHz Memory Clock 4000 MHz Shader Clock 1800 MHz Memory Size 1 GB GDDR5 Bus Type PCI Express 2.0 Memory Bus 256-bit Stream Processors 384 Memory type 32 Mx 32 Direct X 11 Yes

Specification DVI Port DVI-I*2 (Support Dual-link DVI-I) HDMI Yes (via mini HDMI to HDMI cable) D-sub Yes (by adapter) HDCP Yes
