Features Powered by Ge Force GTX 1650 SUPER™ Integrated with 4GB GDDR6 128-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans 90 mm unique blade fans Protection Back Plate WINDFORCE 2X COOLING SYSTEM WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, composite copper heat pipe direct touch GPU & 3D active fan, together delivering an effective heat dissipation. ALTERNATE SPINNING The GIGABYTE “ Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow & reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence & enhancing the airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, & the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. HEAT PIPE DIRECT TOUCH GPU The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. ...

Chipset
- Ge Force GTX 460 v 2 Core Clock
- 788 MHz Shader Clock
- 1576 MHz Memory Clock
- 4008 MHz Process Technology
-




...

WINDFORCE 2X parallel-inclined fin design is equipped with 2 ultra quiet PWM fans & two copper heat pipes to enlarge air channel on the graphics card vents & creates a more effective airflow system in chassis. Specifications Chipset
- Ge Force GTX 550 Ti PCB Form
- ATX Core Clock
- 970 MHz Shader Clock
- 1940 MHz Memory Clock
- 4200 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 192 bit Card Bus
- PCI-E 2.0 Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.1 I/O
- DVI-I x 1, HDMI x 1, D-sub x 1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 Card size
- 239 mm x 138 mm x 41 mm Power requirement
- 400W (with one 6-pin external power connectors)

















...

Gigabyte & Nvidia launch the new GTX 560 OC edition, with higher clock speeds & Gigabytes Windforce 2X cooling design makes this card the ideal weapon for your rig. The NVIDIA Ge Force GTX 560 delivers the performance & power you need to game in full HD 1080p. Enter a world of gaming realism as your favorite games come to life with Direct X11, Phys X & NVIDIA 3D Vision. Chipset
- Ge Force GTX 560 Core Clock
- 830 MHz (Standard 810 M Hz) Shader Clock
- 1660 MHz Memory Clock
- 4008 MHz Process Technology
- 40 nm Memory Size
- 1 GB Memory Bus
- 256 bit Cooling
- Innovative 100mm inclined fans Whisper quiet
- only 31db at full speed Four copper heatpipes with DHT (Direct heat pipe touch) & no soldering technologies Card Bus
- PCI-E 2.0 Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 mini HDMI
- 1 DVI-I
- 2 Card size
- H43 mm x L238 mm x W130 mm PCB Form
- ATX Power requirement Minimum
- 500W or greater system power supply with two 6-pin external power connectors



















...

Serious gamers require serious gear. That’s why we’ve developed the Super Overclock Series. All of the GPUs in these graphics cards have been cherry-picked for top performance, efficiency & reliability. Our innovative GPU Gauntlet Sorting selection process ensures that only the highest-performing GPU processors are used in these graphics cards. Coupled with our Ultra Durable VGA boards, users can rest assured that the Super Overclock Series graphics cards won’t let them down as they step onto the digital battleground. Chipset
- Ge Force GTX 560 Core Clock
- 900 MHz Shader Clock
- 1800 MHz Memory Clock
- 4008 MHz Process Technology
- 40 nm Memory Size
- 1GB Memory Bus
- 256 bit Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Outputs
- DVI-I x 2, Mini HDMI x 1 Card Bus
- PCI-E 2.0 Card size
- H=43 mm x L=255 mm x W=137 mm Power requirement
- Minimum 500W or greater system power supply with two 6-pin external power connectors















...

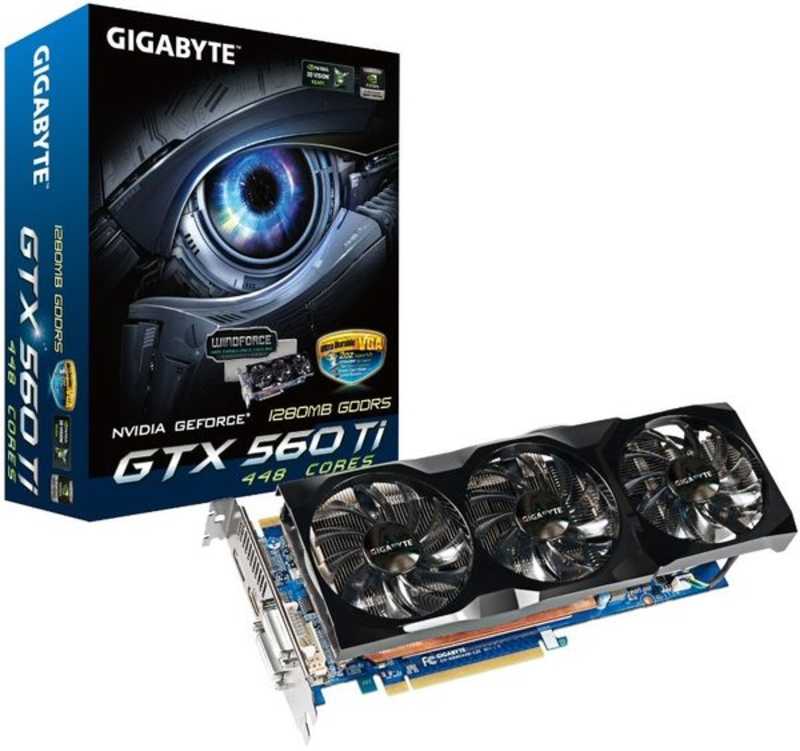

WINDFORCETM 2X Anti-turbulence inclined-fin design Minimize flow turbulence between fans Enhance heat dissipation of hot area right underneath each fan 7% performance better than stock GTX 560 Ti 14% cooler than GTX 560 Ti stock cooler Creat effective air flow system in chassis Ultra quite PWM fan 80mm PWM fan; run up to 3300 RPM 23 d B in 2D mode; 43 d B at full speed Pure copper heat pipe Four pure copper heat pipes enhance heat dissipation Features Powered by NVIDIA Ge Force GTX 560 Ti GPU 384 CUDA Core Microsoft Direct X 11 & Open GL 4.1 support Supports PCI Express 2.0 interface Support NVIDIA Surround, 3D Vision, Phys X, CUDA, , & re Video HD Technology Support 2 way SLI Features Dual Link DVI-I*2/ mini HDMI 500 Watt or greater power supply recommended

Specification Core Clock 900 (std 822) MHz Memory Clock 4000 MHz Shader Clock 1800 MHz Memory Size 1 GB GDDR5 Bus Type PCI Express 2.0 Memory Bus 256-bit Stream Processors 384 Memory type 32 Mx 32 Direct X 11 Yes

Specification DVI Port DVI-I*2 (Support Dual-link DVI-I) HDMI Yes (via mini HDMI to HDMI cable) D-sub Yes (by adapter) HDCP Yes



...

Serious gamers require serious gear. Thats why Gigabyte have developed the Super Overclock Series. All of the GPUs in these graphics cards have been cherry-picked for top performance, efficiency & reliability. Gigabytes innovative GPU Gauntlet Sorting selection process ensures that only the highest-performing GPU processors are used in these graphics cards. Coupled with Gigabytes Ultra Durable VGA boards, users can rest assured that the Super Overclock Series graphics cards wont let them down as they step onto the digital battleground. Chipset Ge Force
- GTX 560 Ti Memory Size
- 1GB Memory Bus
- 256 bit Memory Type
- GDDR5 Core Clock
- 950 MHz Shader Clock
- 1900 MHz Memory Clock
- 4580 MHz Card Bus
- PCI-E 2.0 Process Technology
- 40 nm Analog max resolution
- 2048 x 1536 Digital max resolution
- 2560 x 1600 Direct X
- 11 Open GL
- 4.1 mini HDMI
- 1 DVI-I
- 2 Card size
- H=43 mm x L=255 mm x W=139 mm Power requirement Minimum 550W or greater system power supply with one 8-pin & one 6-pin external power connectors Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface

Specification. Actual performance may vary by system configuration.

















...

GIGABYTE Ultra Durable VGA Series GIGABYTE Ultra Durable VGA Series Powered by NVIDIA Ge Force GTX 570 GPU Integrated with industrys best 1280MB GDDR5 memory & 320-bit memory interface Features Dual link DVI-I/ DVI-D / HDMI/ Display Port with HDCP protection GIGABYTE Wind Force TM 3X cooling design Support NVIDIA 3D Vision TM & SLI technologies Minimum 600W or greater system power supply with two 6-pin external power connectors WINDFORCE 3X 3D-inclined fin design is GIGABYTE’s first generation triple-fan solution. It features 3 ultra quiet PWM fans, three copper heat pipes & a unique vapor chamber to strengthen the speed of heat dissipation. Chipset
- Ge Force GTX 570 Core Clock
- 780 MHz Shader Clock
- 1560 MHz Memory Clock
- 3800 MHz Process Technology
- 40 nm Memory Size
- 1280 MB Memory Bus
- 320 bit Card Bus
- PCI-E 2.0 Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.1 PCB Form
- ATX Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 2 I/O
- HDMI x 1, Display Port x 1, DVI-I x 1, DVI-D x 1 Card size
- H43 mm x L280 mm x W137 mm Power requirement
- Minimum 600W or greater system power supply with two 6-pin external power connectors

















...

Give the whole of Earth a promise that Gigabytes product does not contain any of the restricted substances in concentrations & applications banned by the Ro HS directive, & is capable of being worked on at the higher temperatures required for lead free solder. One Earth & Gigabyte cares! High-bandwidth Digital Content Protection (HDCP) is a form of copy protection technology designed to prevent transmission of non-encrypted high-definition content as it travels across DVI or HDMI digital connections. High Definition Multimedia Interface (HDMI) is an interface standard for consumer electronics devices that combines HDCP-protected digital video & audio into a single, consumer-friendly connector.40 nm technology helped make GTX 580 series product the most advanced GPU ever highest clocks speeds, incredible feature integration, full performance & precision all the time, & ability to take advantage of future, higher-speed memories. ...

With selected cards purchased from 18th march 2014 whilst stock last receive a FREE game download coupon for Free 2 Play your new Geforce GTX graphics card just earned you £90 in game for Warface, Path of Exile, & Heroes of Newerth (£30 for each game). Offer on selected cards only, not available on ex-display cards. Specifications Chipset
- Ge Force GTX 650 PCB Form
- ATX Core Clock
- 1110 MHz (standard: 1058 MHz) Memory Clock
- 5000 MHz Process Technology
- 28 nm Memory Size
- 1024 MB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11 Open GL
- 4.2 I/O
- Dual-link DVI-D*2, HDMI*1, D-Sub*1 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 4 Card size
- H= 42mm, L=188 mm, W=131mm Power requirement
- 400 W
















...
