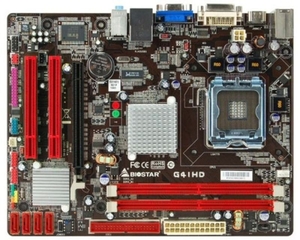

*EX Display* Biostar G41 HD Socket 775 Onboard DVI HDMI VGA 6 Channel Audio m ATX Motherboard (
Includes: back plate only) * No driver cd/cables or manual included* * Only
Includes:: Back plate* Chipset Intel G41 / ICH7 CPU Support Intel Core 2 Quad Processor Intel Core 2 Duo Processor Intel Pentium Dual-Core Processor Intel Celeron Dual-Core Processor Intel Celeron Processor 400 Sequence Maximum CPU TDP (Thermal Design Power): 95 Watt FSB Support FSB 1333/1066/800 M Hz Memory Support Dual Channel DDR3 1333 (OC)/1066/800 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory Note: FSB800 CPU only support DDR3-800 Expansion Slot 2 x PCI Slots 1 x PCI-E x 16 Slot Storage 4 x SATA2 3 Gb/s Connector 1 x IDE Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header Gb E Realtek RTL8111DL
- 10/100/1000 Controller Integrated Video Integrated Intel Graphics Media Accelerator X4500. (Intel X4500) Pixel Shader 4.0, Direct X 10 Supports RGB with max. resolution 2048 x 1536@75 Hz Max. shared memory 1759MB * * The Max shared memory size will be available only when 4GB memory or more installed on Motherboard under the 64-bit OS. CODEC VIA VT1708B 6-Channel HD Audio Rear I/O 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector 1 x DVI Connector 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector Internal I/O 1 x Printer Header 2 x USB (Universal Serial Bus) 2.0 Header 4 x SATA2 3 Gb/s Connector 1 x IDE Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header 1 x CIR Header
Dimensions Micro ATX Form Factor Dimension: 24.4cm X 19cm (W x L ) OS Support Support Windows 2000 / XP / Vista / 7
