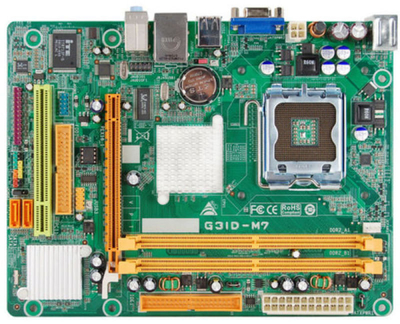

*EX Display* Biostar G31D-M7 Socket 775 Onboard VGA 6 Channel Audio m ATX Motherboard (
Includes: back plate only) * Only
Includes:: Back plate* * No driver cd/cables or manual included* Socket LGA 775 Supports Intel Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series Processor Supports FSB 800/1066/1333 M Hz Support Intel Hyper-Threading Technology FSB 533 M Hz is not supported by this motherboard. CPU TDP over 65W is not available. Please refer to CPU support on the Biostar website for further information. Chipset Intel G31 / ICH7 CPU SUPPORT Intel Core„¢2 Duo Processor Intel Pentium Dual-Core Processor Intel Celeron Dual-Core Processor Intel Celeron Processor 400 Sequence Maximum CPU TDP (Thermal Design Power): 65 Watt FSB Support FSB 800/1066/1333 M Hz MEMORY Support Dual Channel DDR2 667/800 MHz 2 x DDR2 DIMM Memory Slot Max. Supports up to 4GB Memory EXPANSION SLOT 1 x PCI Slots 1 x PCI-E x 16 Slot STORAGE 2 x SATA2 3 Gb/s Connector 1 x IDE Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 1 x USB (Universal Serial Bus) 2.0 Header LAN Realtek RTL8102EL
- 10/100 Controller INTEGRATED VIDEO Intel Graphics Media Accelerator 3100 On Board Graphic Max. Share Memory 256MB CODEC Realtek ALC662 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 1 x Printer Header 1 x USB (Universal Serial Bus) 2.0 Header 2 x SATA2 3 Gb/s Connector 1 x IDE Connector 1 x Floppy Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header DIMENSION Micro ATX Form Factor Dimension: 22.5 cm X 17 cm (W x L ) OS SUPPORT Support Windows 2000 / XP / Vista / 7
