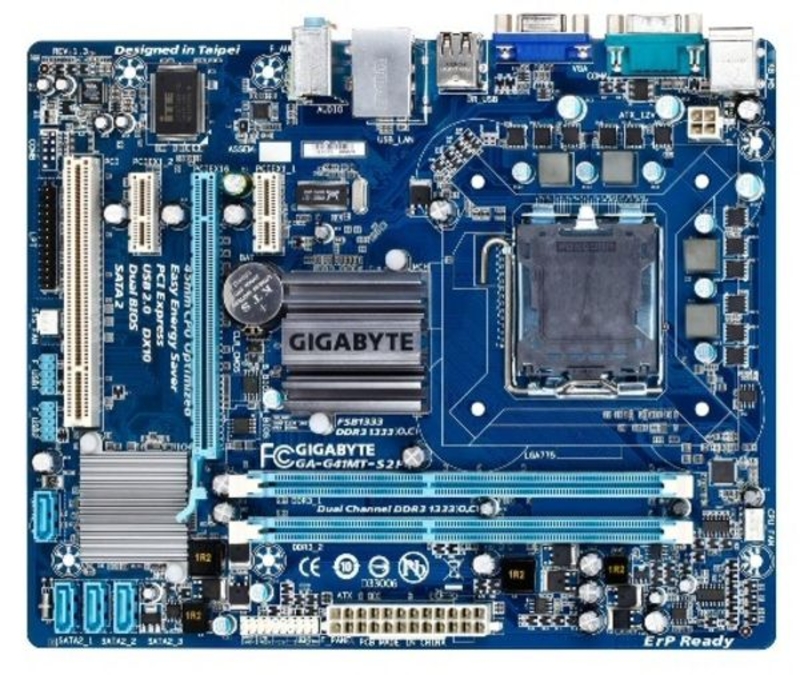

*Ex Display* Gigabyte GA-G41MT-S2P G41 Socket 775 DDR3 Onboard VGA 7.1
Channel Audio MATX Motherboard (Includes Back Plate Only)

Product Description

* Only

Includes:: Back plate* * No driver cd/cables or manual included* CPU Support for an Intel ‚ Core 2 Extreme processor/ Intel Core 2 Quad processor/ Intel Core 2 Duo processor/ Intel Pentium processor/ Intel Celeron processor in the LGA775 package (Go to GIGABYTEs website for the latest CPU support list.) L2 cache varies with CPU Front Side Bus 1333/1066/800 MHz FSB Chipset North Bridge: Intel ‚ G41 Express Chipset South Bridge: Intel ‚ ICH7 Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333 (O.C.)1066/800 MHz memory modules (Go to GIGABYTEs website for the latest supported memory speeds & memory modules.) Onboard Graphics Integrated in the North Bridge: 1 x D-Sub port Audio VIA VT2021 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel & enable the multi-channel audio feature through the audio driver. LAN 1 x Atheros AR8151 chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 2 x PCI Express x 1 slots 1 x PCI slot Storage Interface South Bridge: 4 x SATA 3 Gb/s connectors supporting up to 4 SATA 3 Gb/s devices USB (Universal Serial Bus) South Bridge Up to 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 on the back panel, 4 via the USB (Universal Serial Bus) brackets connected to the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x serial port 1 x D-Sub port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller i TE IT8718 H/W Monitoring System voltage detection CPU temperature detection CPU/ System fan speed detection CPU overheating warning CPU/ System fan fail warning CPU fan speed control * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install. BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS ¢&382;¢ Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune * Available functions in Easy Tune may differ by motherboard model. Support for Easy Energy Saver * Due to the hardware limitation, you must install the Intel ‚ Core ¢&382;¢ 2 Extreme/ Core ¢&382;¢ 2 Quad/ Core ¢&382;¢ 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver. Support for Smart Recovery Support for ON/OFF Charge Support for Q-Share Operating System Support for Microsoft ‚ Windows ‚ 7/ Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 19.4cm
