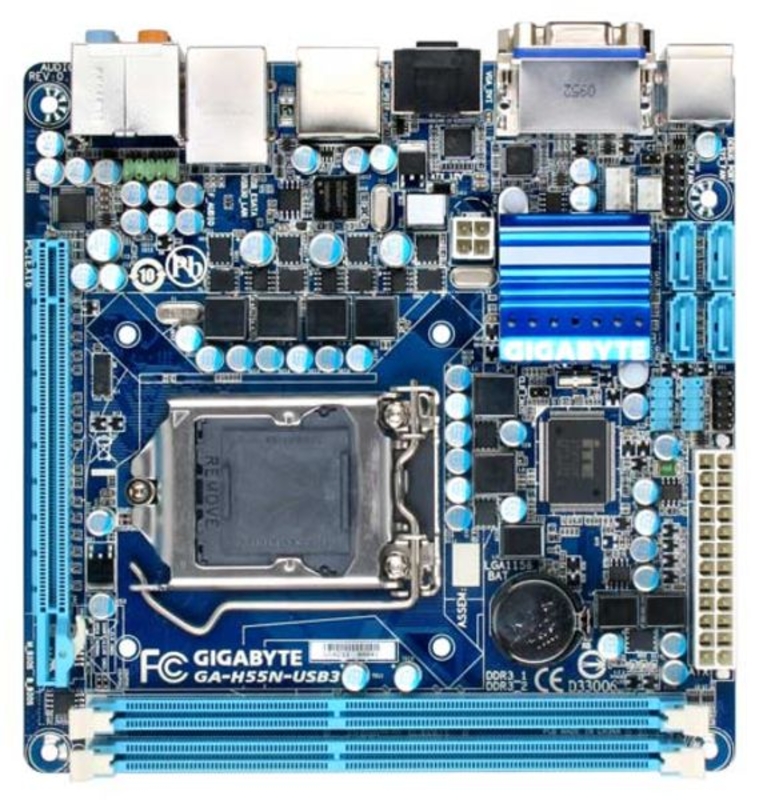

*EX Display* Gigabyte GA-H55N-USB3 1156 DVI VGA HDMI Out 8 Channel
Audio Mini-ITX Motherboard (Includes Back Plate Only)
*Only includes Back plate* *No driver cd/cables or manual included* Supporting the latest Intel Core i7, Core i5 and Core i3 processors featuring the first time ever integrated graphics on chip and LGA 1156 socket (Intel HD Graphics processors only), GIGABYTE H5x series motherboards set a new standard in multimedia platform for high definition contents playback. All these features are packed into a M-ITX form factor Motherboard making it an ideal platofrm for your media PC. CPU Support for an Intel ‚ Core ¢&382;¢ i7 series processor/Intel ‚ Core ¢&382;¢ i5 series processor/ Intel ‚ Core ¢&382;¢ i3 series processor in the LGA1156 package (Go to GIGABYTEs website for the latest CPU support list.) L3 cache varies with CPU (Go to
www.gigabyte.com for the latest supported CPUs) * Onboard graphics Requires Processor with Intel HD Graphics, currently I3-530/540 and I5-670/661/660/650 Processors Chipset Intel ‚ H55 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory Dual channel memory architecture Support for DDR3 1666 (O.C.)/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to www.gigabyte.com for the latest supported memory speeds and memory modules.) Onboard Graphics (Choose processors with Intel ‚ Graphics technology for VGA support) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port Audio Realtek ALC892R codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN 1 x Realtek
RTL8111E chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device USB Integrated in the Chipset Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) NEC D720200F1 chip: Up to 2 USB 3.0/2.0 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector Connectors 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x
debug card header 1 x chassis intrusion header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port Connectors 1 x D-Sub port 1 x DVI-D port 1 x optical S/PDIF Out connector 1 x HDMI port 4 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x eSATA 3Gb/s connector 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone) I/O Controller iTE IT8720 chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control BIOS 2 x 64 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS ¢&382;¢ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for: @BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress
Recovery2 EasyTune Dynamic Energy Saver ¢&382;¢ 2 Smart 6 ¢&382;¢ Auto Green ON/OFF Charge Q-Share Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft ‚ Windows 7/Vista/XP Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
www.gigabyte.com for the latest supported CPUs) * Onboard graphics Requires Processor with Intel HD Graphics, currently I3-530/540 and I5-670/661/660/650 Processors Chipset Intel ‚ H55 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory Dual channel memory architecture Support for DDR3 1666 (O.C.)/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to www.gigabyte.com for the latest supported memory speeds and memory modules.) Onboard Graphics (Choose processors with Intel ‚ Graphics technology for VGA support) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port Audio Realtek ALC892R codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN 1 x Realtek
RTL8111E chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 2.0 standard.) Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device USB Integrated in the Chipset Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) NEC D720200F1 chip: Up to 2 USB 3.0/2.0 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector Connectors 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x
debug card header 1 x chassis intrusion header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port Connectors 1 x D-Sub port 1 x DVI-D port 1 x optical S/PDIF Out connector 1 x HDMI port 4 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x eSATA 3Gb/s connector 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone) I/O Controller iTE IT8720 chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control BIOS 2 x 64 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS ¢&382;¢ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for: @BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress
Recovery2 EasyTune Dynamic Energy Saver ¢&382;¢ 2 Smart 6 ¢&382;¢ Auto Green ON/OFF Charge Q-Share Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft ‚ Windows 7/Vista/XP Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
