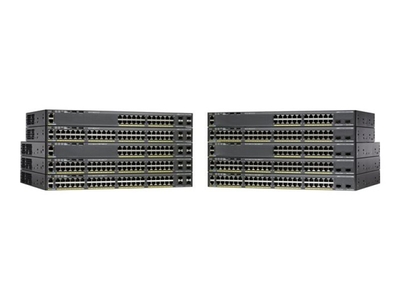

Cisco Catalyst 2960-X series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus & branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure & energy-efficient business operations with intelligent services & a range of advanced Cisco IOS software features. ...

Network security The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network & mitigate threats. Redundancy & resiliency Cisco Catalyst 2960-X series switches offer a number of redundancy & resiliency features to prevent outages & help ensure that the network remains available. Application visibility Catalyst 2960-X series switches support Net Flow Lite, which enables IT teams to understand the mix of traffic on their network & identify anomalies by capturing & recording specific packet flows. Power management The 2960-X switches offer a range industry leading features for effective energy efficiency & energy management. Network management The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration & administration. 2960-X series switches are also supported in the full range of Cisco network management solutions. Intelligent Power over Ethernet Plus Cisco Catalyst 2960-X series switches support both IEEE 802.3af Power over Ethernet (Po E) & IEEE 802.3at Po E+ (up to 30W per port) to deliver lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant Po E/ Po E+ end devices. Po E removes the need to supply wall power to Po E-enabled devices & eliminates the cost of adding electrical cabling & circuits that would otherwise be necessary in IP phone & WLAN deployments. Main Specifications
- Product Description: Cisco Catalyst 2960XR-24PD-I
- switch
- 24 ports
- Managed
- desktop, rack-mountable
- Device Type: Switch
- 24 ports
- L3
- Managed
- stackable
- Enclosure Type: Desktop, rack-mountable 1U
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/ 100/ 1000 (Po E+) + 2 x SFP+
- Power Over Ethernet (Po E): Po E+
- Po E Budget: 370 W
- Performance Switching capacity:216 Gbps Forwarding performance:95.2 Mpps
- Capacity: Virtual interfaces (VLANs):1023
- Jumbo Frame Support: 9216 bytes
- Routing Protocol: OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
-

Features: Layer 2 switching, auto-negotiation, ARP support, Cisco Fast Ether Channel, VLAN support, auto-uplink (auto MDI/ MDI-X), IGMP snooping, Broadcast Storm Control, IPv 6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAg P) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (Qo S), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (Co S)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power: AC 120/ 230 V (50/ 60 Hz )
- Power Redundancy: Yes
- Dimensions: (Wx Dx H) 44.5 cm x 40.8 cm x 4.45 cm
- Weight: 6.2kg
- Manufacturer Warranty: Limited lifetime warranty




























...

- Product Description: Cisco Catalyst 2960XR-24PS-I
- switch
- 24 ports
- Managed
- desktop, rack-mountable
- Device




...

Network security The Cisco Catalyst 2960-X series switch provides a range of security features to limit access to the network & mitigate threats. Redundancy & resiliency Cisco Catalyst 2960-X series switch offers a number of redundancy & resiliency features to prevent outages & help ensure that the network remains available. Application visibility Catalyst 2960-X series switch supports Net Flow Lite, which enables IT teams to understand the mix of traffic on their network & identify anomalies by capturing & recording specific packet flows. Power management The 2960-X switch offers a range industry leading features for effective energy efficiency & energy management. Network management The Cisco Catalyst 2960-X series switch offers a superior CLI for detailed configuration & administration. 2960-X series switch is also supported in the full range of Cisco network management solutions. Main Specifications
- Product Description: Cisco Catalyst 2960XR-24TD-I
- switch
- 24 ports
- Managed
- desktop, rack-mountable
- Device Type: Switch
- 24 ports
- L3
- Managed
- stackable
- Enclosure Type: Desktop, rack-mountable 1U
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/ 100/ 1000 + 2 x SFP+
- Performance: Switching capacity:216 Gbps Forwarding performance:95.2 Mpps
- Capacity: Virtual interfaces (VLANs):1023
- Jumbo Frame Support: 9216 bytes
- Routing Protocol: OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
-

Features: Layer 2 switching, auto-negotiation, ARP support, Cisco Fast Ether Channel, VLAN support, auto-uplink (auto MDI/ MDI-X), IGMP snooping, Broadcast Storm Control, IPv 6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAg P) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (Qo S), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (Co S)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az Power AC 120/ 230 V (50/ 60 Hz )
- Power Redundancy: Yes
- Dimensions: (Wx Dx H) 44.5 cm x 40.8 cm x 4.45 cm
- Weight: 5.9kg
- Manufacturer Warranty: Limited lifetime warranty

























...

- Product Description: Cisco Catalyst 2960XR-24TS-I
- switch
- 24 ports
- Managed
- desktop, rack-mountable
- Device




...

- Product Description: Cisco Catalyst 2960XR-48FPS-I
- switch
- 48 ports
- Managed
- desktop, rack-mountable
- Device




...

- Product Description: Cisco Catalyst 2960XR-48LPD-I
- switch
- 48 ports
- Managed
- desktop, rack-mountable
- Device




...

- Product Description: Cisco Catalyst 2960XR-48LPS-I
- switch
- 48 ports
- Managed
- desktop, rack-mountable
- Device




...

Network security The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network & mitigate threats. Redundancy & resiliency Cisco Catalyst 2960-X series switches offer a number of redundancy & resiliency features to prevent outages & help ensure that the network remains available. Application visibility Catalyst 2960-X series switches support Net Flow Lite, which enables IT teams to understand the mix of traffic on their network & identify anomalies by capturing & recording specific packet flows. Power management The 2960-X switches offer a range industry leading features for effective energy efficiency & energy management. Network management The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration & administration. 2960-X series switches are also supported in the full range of Cisco network management solutions. Intelligent Power over Ethernet Plus Cisco Catalyst 2960-X series switches support both IEEE 802.3af Power over Ethernet (Po E) & IEEE 802.3at Po E+ (up to 30W per port) to deliver lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant Po E/ Po E+ end devices. Po E removes the need to supply wall power to Po E-enabled devices & eliminates the cost of adding electrical cabling & circuits that would otherwise be necessary in IP phone & WLAN deployments. Main Specifications
- Product Description: Cisco Catalyst 2960XR-48TD-I
- switch
- 48 ports
- Managed
- desktop, rack-mountable
- Device Type: Switch
- 48 ports
- L3
- Managed
- stackable
- Enclosure Type: Desktop, rack-mountable 1U
- Subtype: Gigabit Ethernet
- Ports: 48 x 10/ 100/ 1000 + 2 x SFP+
- Performance: Switching capacity:216 Gbps Forwarding performance:130.9 Mpps
- Capacity: Virtual interfaces (VLANs):1023
- Jumbo Frame Support: 9216 bytes
- Routing Protocol: OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
-

Features: Layer 2 switching, auto-negotiation, ARP support, Cisco Fast Ether Channel, VLAN support, auto-uplink (auto MDI/ MDI-X), IGMP snooping, Broadcast Storm Control, IPv 6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAg P) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (Qo S), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (Co S)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az Power AC 120/ 230 V (50/ 60 Hz )
- Power Redundancy: Yes
- Dimensions: (Wx Dx H) 44.5 cm x 40.8 cm x 4.45 cm
- Weight:6.1kg
- Manufacturer Warranty: Limited lifetime warranty

























...

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus & branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure & energy-efficient business operations with intelligent services & a range of advanced Cisco IOS Software features. Network security The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network & mitigate threats. Redundancy & resiliency Cisco Catalyst 2960-X series switches offer a number of redundancy & resiliency features to prevent outages & help ensure that the network remains available. Application visibility Catalyst 2960-X series switches support Net Flow Lite, which enables IT teams to understand the mix of traffic on their network & identify anomalies by capturing & recording specific packet flows. Power management The 2960-X switches offer a range industry leading features for effective energy efficiency & energy management. Network management The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration & administration. 2960-X series switches are also supported in the full range of Cisco network management solutions. ...
