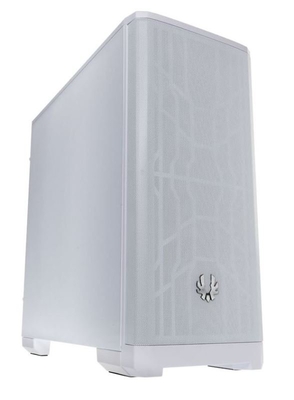

Bitfenix Nova Mesh Midi Tower Case - White
This case is the mesh version of the simple, but attractive Nova Midi-Tower and puts the focus on air cooling. In this variant, the entire front is made of a close-meshed metal mesh grid to maximize airflow. Behind it is a layer of fine nylon fabric that serves as a dust filter. In spite of the fine mesh, illuminated fans placed behind it are clearly visible from the outside. The front panel also features the typical BitFenix logo on the front and a 120mm fan built into the rear. Users can also expect two 3.5-inch slots, two 2.5-inch slots and the option of installing additional fans. The BitFenix Nova Mesh thus offers plenty of space for the most common configurations. The Features of the BitFenix Nova at a Glance: White midi-tower from BitFenix with fine mesh front Compatible with
ATX-, Micro-ATX- and Mini-ITX motherboards Includes 120 mm fan on the rear Slots for 3x 120mm or 2x 140mm fans on the front and 2x 120mm fans on the top Room for 240mm radiator on top and up to 280/360mm on front Place for 2x 3.5/2.5- and 3x 2.5-inch drives 2x USB 3.0, 2x 3.5mm jack (1x each AD Audio In / Out) BitFenix Nova Mesh: Plain Midi Tower in White The front panel with the fine mesh perfectly combines the need for attractive aesthetics with airflow. The case makes no compromises in terms of its appearance. On the contrary: the design is timelessly elegant and looks as if it were made from a single moulded piece. The seamless design not only looks great, it also serves a purpose, because the BitFenix Nova Mesh is designed to fight against dust and annoying hardware noises. The
two basic versions of the Nova Mesh case (with and without tempered glass side panel) differ on the left side panel. Thanks to its modern design, the motherboard is installed at the top and the power supply at the bottom. This offers the advantage of a separate fresh air inlet for the power supply unit through the floor, thus reducing overall heat build-up. A dust filter protects the power supply from the ingress of dirt and the prevents overheating. A power supply cover hides any unsightly cable clutter. Space for Well-Cooled Hardware A large cut-out in the motherboard tray allows for the easy and straightforward installation of compatible CPU coolers. Expansion cards can be mounted by easily removable screws. Two internal 2.5/3.5-inch slots are available in the HDD cage under the power
supply cover. Two 2.5-inch drives are located on the back of the motherboard tray, and another one can be screwed onto the power supply cover. All in all, theres plenty of room for full-size hardware. When it comes to cooling, up to three 120 or two 140 fans can be installed on the front. In addition, two 120 mm fans can be mounted on top. Together with the pre-installed 120 mm fan on the rear, this makes for an impressive maximum of six 120 mm fans, ensuring your hard-earned hardware receives the best possible cooling. Thanks to the fine mesh front and the dust filter on the lid, the interior will remain clean and low-maintenance for years to come. Of course, you can install compatible radiators instead of the fans if you prefer, for example a 360 or a 280 at the front. On the
top there is a somewhat narrow space for a 240 mm radiator. The I/O panel in the upper offers two USB 3.0 and two HD audio connections. The connectors are complemented by the addition of a power switch and a reset switch. Technical Details: Dimensions: 210 x 437 x 460 mm (W x H x D) Material: Steel, plastic Colour: White Weight: 4.8kg Form factor: E-ATX (up to 272 mm), ATX, Micro-ATX, Mini-ITX Fans possible: 3x 120 mm / 2x 140 mm (front) 2x 120 mm (cover) 1x 120 mm (rear) Pre-installed: 1x 120 mm (rear) Radiators possible: 1x max. 360/280 mm (front) 1x max. 240 mm (cover) 1x max. 120 mm (rear) Drives: 2x 2.5/3.5 inch (internal) 3x 2.5 inch (internal) Extension slots: 7 I/O Panel: 2x USB 3.0 1x each HD Audio In/Out 1x Power button 1x Reset button Power supply: Standard PS2 ATX format
(optional) Maximum graphics card length: 360mm Maximum CPU cooler height: 160mm Maximum power supply length: 220mm
ATX-, Micro-ATX- and Mini-ITX motherboards Includes 120 mm fan on the rear Slots for 3x 120mm or 2x 140mm fans on the front and 2x 120mm fans on the top Room for 240mm radiator on top and up to 280/360mm on front Place for 2x 3.5/2.5- and 3x 2.5-inch drives 2x USB 3.0, 2x 3.5mm jack (1x each AD Audio In / Out) BitFenix Nova Mesh: Plain Midi Tower in White The front panel with the fine mesh perfectly combines the need for attractive aesthetics with airflow. The case makes no compromises in terms of its appearance. On the contrary: the design is timelessly elegant and looks as if it were made from a single moulded piece. The seamless design not only looks great, it also serves a purpose, because the BitFenix Nova Mesh is designed to fight against dust and annoying hardware noises. The
two basic versions of the Nova Mesh case (with and without tempered glass side panel) differ on the left side panel. Thanks to its modern design, the motherboard is installed at the top and the power supply at the bottom. This offers the advantage of a separate fresh air inlet for the power supply unit through the floor, thus reducing overall heat build-up. A dust filter protects the power supply from the ingress of dirt and the prevents overheating. A power supply cover hides any unsightly cable clutter. Space for Well-Cooled Hardware A large cut-out in the motherboard tray allows for the easy and straightforward installation of compatible CPU coolers. Expansion cards can be mounted by easily removable screws. Two internal 2.5/3.5-inch slots are available in the HDD cage under the power
supply cover. Two 2.5-inch drives are located on the back of the motherboard tray, and another one can be screwed onto the power supply cover. All in all, theres plenty of room for full-size hardware. When it comes to cooling, up to three 120 or two 140 fans can be installed on the front. In addition, two 120 mm fans can be mounted on top. Together with the pre-installed 120 mm fan on the rear, this makes for an impressive maximum of six 120 mm fans, ensuring your hard-earned hardware receives the best possible cooling. Thanks to the fine mesh front and the dust filter on the lid, the interior will remain clean and low-maintenance for years to come. Of course, you can install compatible radiators instead of the fans if you prefer, for example a 360 or a 280 at the front. On the
top there is a somewhat narrow space for a 240 mm radiator. The I/O panel in the upper offers two USB 3.0 and two HD audio connections. The connectors are complemented by the addition of a power switch and a reset switch. Technical Details: Dimensions: 210 x 437 x 460 mm (W x H x D) Material: Steel, plastic Colour: White Weight: 4.8kg Form factor: E-ATX (up to 272 mm), ATX, Micro-ATX, Mini-ITX Fans possible: 3x 120 mm / 2x 140 mm (front) 2x 120 mm (cover) 1x 120 mm (rear) Pre-installed: 1x 120 mm (rear) Radiators possible: 1x max. 360/280 mm (front) 1x max. 240 mm (cover) 1x max. 120 mm (rear) Drives: 2x 2.5/3.5 inch (internal) 3x 2.5 inch (internal) Extension slots: 7 I/O Panel: 2x USB 3.0 1x each HD Audio In/Out 1x Power button 1x Reset button Power supply: Standard PS2 ATX format
(optional) Maximum graphics card length: 360mm Maximum CPU cooler height: 160mm Maximum power supply length: 220mm
