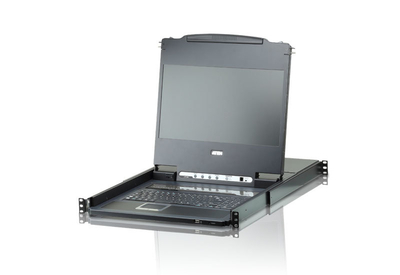

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, & touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches. Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, & commercial settings Features • Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor • Single rail, sliding housing with top & bottom clearance for smooth operation in a 1U rack • Controls eight Single Link DVI computers • Supports an external console with DVI video port • Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches) • Computer selection via front panel pushbuttons, hotkeys, & multilingual on-screen display (OSD) • Broadcast mode – means that you can send commands from the console to all computers to perform operations simultaneously • Firmware upgradable • Supports YUV video format for greater compatibility • DVI monitor support – fully compliant with DVI specifications • Video Dyna Sync™ – exclusive ATEN technology eliminates boot-up display problems & optimizes responsiveness when switching between ports • Note: Video Dyna Sync™ only works with digital video sources • HDCP-compatible for hassle-free content-protected media playback • Superior video quality – 1920 x 1080 @ 60 Hz; DDC2B • Adjustable depth to fit within the rack • Audio support for connecting speakers • Auto Scan Mode for monitoring all computers • Multiplatform support – Windows, Linux, Mac, Sun • Console lock – enables the console drawer to remain securely locked away in position when not in use
