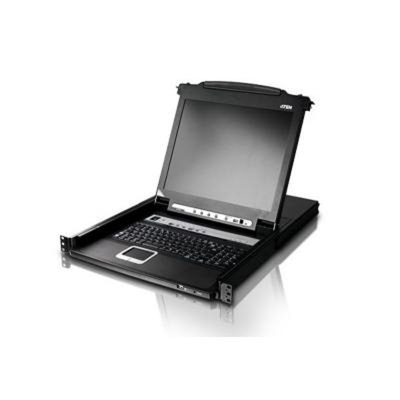

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, & a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions. The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, & establishing a reliable working environment for users. To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing & controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB (Universal Serial Bus) mouse port that only supports HID device for keyboard & mouse. As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & thus is ideal for control rooms with limited space in any industry. ...

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, & a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions. The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, & establishing a reliable working environment for users. To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing & controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB (Universal Serial Bus) mouse port that only supports HID device for keyboard & mouse. As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & thus is ideal for control rooms with limited space in any industry. ...

CL3700NW-ATA-EE The CL3700 USB (Universal Serial Bus) HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard & touchpad. The short-depth design fits all 19" equipment cabinets, & is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) & compact control rooms. The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality & provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse & HDMI monitor) are provided on the rear panel. With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit. • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • Integrated KVM Console with short depth single rail design & a 18.5” LED-backlit LCD monitor means that you can work in narrow spaces • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60 Hz for CL3700NW & resolutions of up to 1366 x 768 @ 60 Hz for CL3700NX • Supports an external console with USB (Universal Serial Bus) / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60 Hz FEATURES Space Utility Optimization • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top & bottom clearance for smooth operation in a 1U high system rack • Short-depth design means that you can work with your rack-mounting equipment in narrow spaces • Console lock – enables the console drawer to remain securely locked away in position when not in use • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3700 & a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy & flexible operation* Remarkable Video Experience • Supports HDMI video input • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60 Hz for CL3700NW & resolutions of up to 1366 x 768 @ 60 Hz for CL3700NX • External console supports input video resolutions up to 1920 x 1200 @ 60 Hz Installation Flexibility • Standard rack mount kit included • Optional rack mount kits available including easy installation options* • No software required • Firmware upgradable • Supports hot-plugging Reliability & Operational Versatility • Supports an external console with USB (Universal Serial Bus) / HDMI connectors • Additional hot-pluggable USB (Universal Serial Bus) mouse port on front panel (also functions as a USB (Universal Serial Bus) peripheral port) • Console selection via hotkey • Standard 105-key keyboard • The design complies to the UL 60950-1 & CAN/CSA standards * The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information ...

The CL3800 USB (Universal Serial Bus) HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard & touchpad. The short-depth design fits all 19" equipment cabinets, & is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) & compact control rooms. The CL3800 supports three types of video input – HDMI, DVI, & VGA – & provides the ultimate in installation flexibility by allowing users to connect the console & the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality & provides ample viewing area. Furthermore, the dual rail design enables the LCD monitor, keyboard & touchpad to operate independently of each other. To maximize space utilization, the keyboard & touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity. For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse & HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also

Includes:: two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

...

Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions
...

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB (Universal Serial Bus) KVM (keyboard, video, & mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console. The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, & touchpad in a 1U rack-mountable sliding housing. ...

The CL6700 features an integrated 17.3" (CL6700MW) or 19” (CL6700N) LED-backlit LCD panel, a full keyboard, & a touchpad in a 1U rack-mountable sliding housing with audio support. The CL6700 LCD KVM console provides front end access to compatible KVM switches utilizing space with a module that closes flat & slides into the rack. The CL6700MW supports three types of video input – HDMI, DVI, & VGA – & provides the ultimate in installation flexibility by allowing users to connect the console & the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB (Universal Serial Bus) mouse & HDMI, DVI, or VGA monitor) are provided on the rear panel. While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input & provides ports for the second KVM console (USB keyboard, USB (Universal Serial Bus) mouse & DVI or VGA monitor) on the rear panel. Both of the CL6700MW & CL6700N include two mini stereo ports for connecting audio speakers. Users who already have a switch can take advantage of the space saving & efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site. ...

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, & touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches. Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, & commercial settings Features • Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor • Single rail, sliding housing with top & bottom clearance for smooth operation in a 1U rack • Controls eight Single Link DVI computers • Supports an external console with DVI video port • Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches) • Computer selection via front panel pushbuttons, hotkeys, & multilingual on-screen display (OSD) • Broadcast mode – means that you can send commands from the console to all computers to perform operations simultaneously • Firmware upgradable • Supports YUV video format for greater compatibility • DVI monitor support – fully compliant with DVI specifications • Video Dyna Sync™ – exclusive ATEN technology eliminates boot-up display problems & optimizes responsiveness when switching between ports • Note: Video Dyna Sync™ only works with digital video sources • HDCP-compatible for hassle-free content-protected media playback • Superior video quality – 1920 x 1080 @ 60 Hz; DDC2B • Adjustable depth to fit within the rack • Audio support for connecting speakers • Auto Scan Mode for monitoring all computers • Multiplatform support – Windows, Linux, Mac, Sun • Console lock – enables the console drawer to remain securely locked away in position when not in use
...

ATEN CM1284 4-Port USB (Universal Serial Bus) HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, & displayed at the same time with independent keyboard & mouse control. Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (Pi P), Picture by Picture (Pb P), Picture on Picture (Po P), & the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access & control the target computer. Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, & displayed with independent keyboard & mouse control. Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, & medical application. • 4-Port USB (Universal Serial Bus) HDMI Multi-View KVMP switch with Dual Display. One display is with Quad & Pi P/ Pb P/ Po P modes, & the other is with full-screen mode • Easily resize & / or reposition any Pi P or Pb P to suit users’ viewing needs; Supports superior video quality – up to 4K DCI @ 30 Hz (4096 x 2160 @ 30 Hz) YCb Cr 4 :2: 2 • DCC (Daisy Chain Control) — Controls up to 3 additional CM1284 units from a single console; Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode) • Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources ...

The CN8000 is a control unit that provides "over-IP" capability to KVM switches that do not have built in over-IP functionality. It allows operators to monitor & access their computers from remote locations using a browser-based Windows Client or Java Applet, or with AP Windows & Java application programs. The CN8000 provides a dedicated RS-232 port for modem access, as well as a USB (Universal Serial Bus) 2.0 port for virtual media capability. With its advanced features, the CN8000 is the fastest, most reliable, most cost effective way to remotely access & manage widely distributed multiple computer installations. Please note: networking components such as switches, routers, KVM & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...
