The CE790 is an IP based KVM extender with automatic cable detection (Auto-MDIX) & RS-232 serial functionality that allows access to a computer system from a remote USB (Universal Serial Bus) console (USB keyboard, monitor, & USB (Universal Serial Bus) mouse) anywhere on the intranet. The CE790 improves on previous designs by the addition of an intuitive On Screen Display (OSD) on both the transmitter & receiver units for easy setup & operation; working over a standard TCP/IP LAN via inexpensive Cat 5e cable, allowing point-to-point, point-to-multipoint, & multipoint-to-multipoint administration without the need for an additional KVM switch; & the addition of an RS-232 port, on both the transmitter & receiver units
- to connect to a serial terminal for configuration, & serial devices such as touchscreens & barcode scanners.
...

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, & touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving & efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site. ...

The CL1000N is a LCD KVM console that features an integrated 19” LED-backlit LCD panel, full keyboard, & touchpad in a 1U rackmountable housing. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site. Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions Integrated KVM console with 19” LED-backlit LCD monitor – in a sliding housing with top & bottom clearance for smooth operation in a 1U high system rack Supports input video resolutions up to 1920 x 1200@60 Hz
...

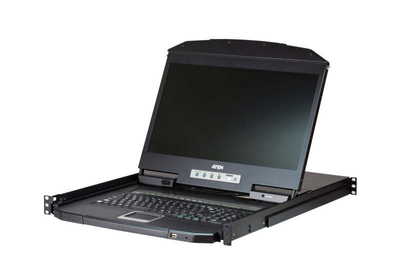

The CL3100 USB (Universal Serial Bus) VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard & touchpad. The short-depth design fits all 19" equipment cabinets, & is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) & compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse & VGA monitor) are provided on the rear panel. The CL3100 also

Includes:: two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, & operational versatility, & is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

...

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, & a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions. The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, & establishing a reliable working environment for users. To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing & controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB (Universal Serial Bus) mouse port that only supports HID device for keyboard & mouse. As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & thus is ideal for control rooms with limited space in any industry. ...

CL3700NW-ATA-EE The CL3700 USB (Universal Serial Bus) HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard & touchpad. The short-depth design fits all 19" equipment cabinets, & is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) & compact control rooms. The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality & provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse & HDMI monitor) are provided on the rear panel. With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit. • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • Integrated KVM Console with short depth single rail design & a 18.5” LED-backlit LCD monitor means that you can work in narrow spaces • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60 Hz for CL3700NW & resolutions of up to 1366 x 768 @ 60 Hz for CL3700NX • Supports an external console with USB (Universal Serial Bus) / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60 Hz FEATURES Space Utility Optimization • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top & bottom clearance for smooth operation in a 1U high system rack • Short-depth design means that you can work with your rack-mounting equipment in narrow spaces • Console lock – enables the console drawer to remain securely locked away in position when not in use • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3700 & a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy & flexible operation* Remarkable Video Experience • Supports HDMI video input • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60 Hz for CL3700NW & resolutions of up to 1366 x 768 @ 60 Hz for CL3700NX • External console supports input video resolutions up to 1920 x 1200 @ 60 Hz Installation Flexibility • Standard rack mount kit included • Optional rack mount kits available including easy installation options* • No software required • Firmware upgradable • Supports hot-plugging Reliability & Operational Versatility • Supports an external console with USB (Universal Serial Bus) / HDMI connectors • Additional hot-pluggable USB (Universal Serial Bus) mouse port on front panel (also functions as a USB (Universal Serial Bus) peripheral port) • Console selection via hotkey • Standard 105-key keyboard • The design complies to the UL 60950-1 & CAN/CSA standards * The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information ...

The CL3800 USB (Universal Serial Bus) HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard & touchpad. The short-depth design fits all 19" equipment cabinets, & is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) & compact control rooms. The CL3800 supports three types of video input – HDMI, DVI, & VGA – & provides the ultimate in installation flexibility by allowing users to connect the console & the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality & provides ample viewing area. Furthermore, the dual rail design enables the LCD monitor, keyboard & touchpad to operate independently of each other. To maximize space utilization, the keyboard & touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity. For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse & HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also

Includes:: two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, & operational versatility, & is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

...

Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions
...

8-Port Slideaway LCD KVM Switch The CL5708 Slideaway LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB (Universal Serial Bus) KVM (keyboard, video, & mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console. The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LCD monitor, & touchpad in a 1U rack-mountable sliding housing.
- Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology
- up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units
- control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A,
- ACS1216A, CS1708A, CS1716A)
- Dual Interface
- supports computers & console with PS/2 or USB (Universal Serial Bus) keyboards & mice
- LCD module USB (Universal Serial Bus) port allows each computer to access USB (Universal Serial Bus) peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, & Sun
- Supports multimedia USB (Universal Serial Bus) keyboards for PC, Mac & Sun
- Auto PS/2 & USB (Universal Serial Bus) interface detection













...

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB (Universal Serial Bus) KVM (keyboard, video, & mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console. The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, & touchpad in a 1U rack-mountable sliding housing. ...
