The CL6700 features an integrated 17.3" (CL6700MW) or 19” (CL6700N) LED-backlit LCD panel, a full keyboard, & a touchpad in a 1U rack-mountable sliding housing with audio support. The CL6700 LCD KVM console provides front end access to compatible KVM switches utilizing space with a module that closes flat & slides into the rack. The CL6700MW supports three types of video input – HDMI, DVI, & VGA – & provides the ultimate in installation flexibility by allowing users to connect the console & the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB (Universal Serial Bus) mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB (Universal Serial Bus) mouse & HDMI, DVI, or VGA monitor) are provided on the rear panel. While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input & provides ports for the second KVM console (USB keyboard, USB (Universal Serial Bus) mouse & DVI or VGA monitor) on the rear panel. Both of the CL6700MW & CL6700N include two mini stereo ports for connecting audio speakers. Users who already have a switch can take advantage of the space saving & efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site. ...

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, & touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches. Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, & commercial settings Features • Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor • Single rail, sliding housing with top & bottom clearance for smooth operation in a 1U rack • Controls eight Single Link DVI computers • Supports an external console with DVI video port • Exclusive LED illumination light
- designed by ATEN to illuminate the keyboard & touchpad to allow visibility in low-light conditions • KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches) • Computer selection via front panel pushbuttons, hotkeys, & multilingual on-screen display (OSD) • Broadcast mode – means that you can send commands from the console to all computers to perform operations simultaneously • Firmware upgradable • Supports YUV video format for greater compatibility • DVI monitor support – fully compliant with DVI specifications • Video Dyna Sync™ – exclusive ATEN technology eliminates boot-up display problems & optimizes responsiveness when switching between ports • Note: Video Dyna Sync™ only works with digital video sources • HDCP-compatible for hassle-free content-protected media playback • Superior video quality – 1920 x 1080 @ 60 Hz; DDC2B • Adjustable depth to fit within the rack • Audio support for connecting speakers • Auto Scan Mode for monitoring all computers • Multiplatform support – Windows, Linux, Mac, Sun • Console lock – enables the console drawer to remain securely locked away in position when not in use
...

ATEN CM1284 4-Port USB (Universal Serial Bus) HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, & displayed at the same time with independent keyboard & mouse control. Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (Pi P), Picture by Picture (Pb P), Picture on Picture (Po P), & the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access & control the target computer. Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, & displayed with independent keyboard & mouse control. Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, & medical application. • 4-Port USB (Universal Serial Bus) HDMI Multi-View KVMP switch with Dual Display. One display is with Quad & Pi P/ Pb P/ Po P modes, & the other is with full-screen mode • Easily resize & / or reposition any Pi P or Pb P to suit users’ viewing needs; Supports superior video quality – up to 4K DCI @ 30 Hz (4096 x 2160 @ 30 Hz) YCb Cr 4 :2: 2 • DCC (Daisy Chain Control) — Controls up to 3 additional CM1284 units from a single console; Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode) • Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources ...

The CN8000 is a control unit that provides "over-IP" capability to KVM switches that do not have built in over-IP functionality. It allows operators to monitor & access their computers from remote locations using a browser-based Windows Client or Java Applet, or with AP Windows & Java application programs. The CN8000 provides a dedicated RS-232 port for modem access, as well as a USB (Universal Serial Bus) 2.0 port for virtual media capability. With its advanced features, the CN8000 is the fastest, most reliable, most cost effective way to remotely access & manage widely distributed multiple computer installations. Please note: networking components such as switches, routers, KVM & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The new generation ATEN CN8000A features superior video quality with HD resolutions up to 1920 x 1200, LUC (Laptop USB (Universal Serial Bus) Console) for easier KVM access, user-friendly local console OSD & virtual media function without additional cable. The CN8000A Single Port KVM over IP provides access control through “over-IP” for conventional KVM switches that do not have built in over-IP functionality. It allows system operators to monitor & access computers from remote locations using standard Web browsers or Windows & Java based application programs. The CN8000A connects to the Intranet either LAN or WAN simply by using an industry standard Cat 5e/6 cable, & is connected to a local KVM switch or server via a custom KVM cable. The ATEN CN8000A uses the standard TCP/IP protocols for communications, it allows the connected server or KVM switch to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country or branch offices in other parts of the world. The CN8000A expands on previous models by providing a dedicated RS-232 port for modem access or serial console management, a PON port to connect a ATEN PDU device & USB (Universal Serial Bus) 2.0 virtual media capability. A Windows Client & a Java Client are available for remote access. They allow IP connection & login from anywhere over the internet. In addition, ATEN also provides an i OS APP
- Pad Client, whose intuitive interface makes it easy to connect to the KVM over IP switch & control computers direct from your iPad. To meet advanced security requirements, the CN8000A’s Virtual Media function allows a Smart Card / CAC reader on a user’s local system to be mapped to a remote server. The CN8000A provides a fast, reliable & a cost effective way to remotely access & manage widely distributed multiple computer installations.
...

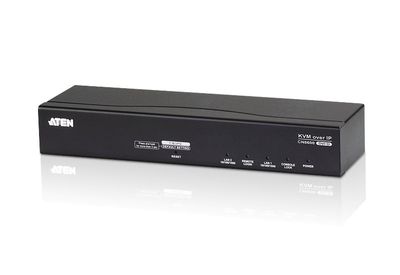

The CN8600 DVI KVM over IP is a cost efficient over-IP device, which allows remote access of digital video, & / or audio & virtual media via remote control of a PC or workstation. The CN8600 enables Over IP capability by connecting compatible ATEN DVI KVMand/or LCD console, such as the CS1768 (8-Port USB (Universal Serial Bus) DVI KVM Switch) or CL6700 (DVI LCD Console). For user-friendly operation, a mini USB (Universal Serial Bus) port on the rear panel is designed as a Laptop USB (Universal Serial Bus) Console (LUC) port or a Virtual Media port. No additional monitor, keyboard or mouse is required locally for routine maintenance – simply use the LUC port to connect a laptop, & access any computer connected to the switch for easy on-site management. The CN8600’s Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates & patches from a remote console. To ensure seamless connectivity, the CN8600 is equipped with dual LAN/dual power functionality to keep operation in the server room smooth & efficient. The CN8600 also supports speaker & microphone for use locally & remotely. A Windows Client & a Java Client are available for remote access. They allow IP connection & login from anywhere over the internet. In addition, ATEN also provides an i OS APP
- Pad Client, whose intuitive interface makes it easy to connect to the KVM over IP switch & control computers direct from your iPad. Please visit the Pad Client webpage for more information. ATEN capitalizes on providing affordable & durable Over-IP server management solutions & ensures that the equipment is worth the investment with their dependability & operational efficiency. ATEN guarantees that your CN8600 investment is protected & delivers continuous quality performance.
...

The CS231 is a powerful, microprocessor-controlled computer-sharing device. It is a multi-user, single-tasking device that enables two users to share the use of a single computer
- each from their own consoles (monitor, keyboard, & mouse). The CS231 supports USB (Universal Serial Bus) consoles & both PS/2 & USB (Universal Serial Bus) computers. Please note: networking components such as switches, routers, KVM & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com.
...

One USB (Universal Serial Bus)-PS/2 console controls 8 computers
- Cascade up to 2 levels*
- control up to 64 computers
-


...

One USB (Universal Serial Bus)-PS/2 console controls 16 computers; Cascade up to 2 levels
- control up to 256 computers Broadcast
...

The CS1644 USB (Universal Serial Bus) 2.0 DVI Dual View KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB (Universal Serial Bus) 2.0 hub at the same time as providing dual-screen support for two DVI displays, making it ideal for graphic designers, banking & finance consultants, medical applications, & gamers. Moreover it carries advanced features, such as n Vidia 3D Vision ready 120 Hz 3D display support, gaming keyboard compatibility & port selection/switching using a mouse, aimed at giving you flexibility, convenience & enjoyment. As a KVM switch, it allows users to access four computers with dual-screen support from a single USB (Universal Serial Bus) keyboard, USB (Universal Serial Bus) mouse, & dual-screen console. As a USB (Universal Serial Bus) hub, it permits each computer to access any peripherals connected to the hub on a "one computer at a time" basis. 4-port DVI Dual View KVMP switch with USB (Universal Serial Bus) 2.0 support & 2.1 channel surround sound audio One dual-screen USB (Universal Serial Bus) console controls four dual-screen computers & two additional USB (Universal Serial Bus) devices 2-port USB (Universal Serial Bus) 2.0 hub built in Fully compliant with the USB (Universal Serial Bus) 2.0 specification ...
