Video Memory
- 2048MB GDDR5 GPU boost Clock
- 980 MHz GPU base Clock
- 915 MHz CUDA cores
- 1344 Memory Clock
- 6008




...

Graphics Engine
- NVIDIA Ge Force GTX 660 Ti Bus Standard
- PCI Express 3.0 Open GL
- Open GL 4.2 Video Memory
- 2048MB



...

ASUS GTX 670 Direct CU II: the 4GB powerhouse to rule your game Double the reference video memory at 4GB takes your gaming to new levels of smooth. Flattened copper heatpipes makes direct contact with the GPU surface so heat is dissipated efficiently, delivering a 20% cooler & vastly quieter performance than reference. Acclaimed DIGI+ VRM with 8-phase Super Alloy Power technology delivers precise digital power & enhanced durability for stable overclocking. GPU Tweak utility helps you modify & tune clocks (including new boost clock settings), power consumption targets, voltages, & fan performance via an intuitive interface

Specification
-
- Graphics Engine
- NVIDIA Ge Force GTX 670
- Bus Standard
- PCI Express 3.0
- Video Memory
- GDDR5 4GB Engine Clock
-
- GPU Boost Clock
- 980 MHz
- GPU Base Clock
- 915 MHz
- CUDA Core
- 1344
- Memory Clock
- 6008 MHz (1502 MHz GDDR5 )
- Memory Interface
- 256-bit
- Resolution
- DVI Max Resolution: 2560x 1600 Interface
-
- DVI Output
- Yes x 1 (DVI-I), Yes x 1 (DVI-D)
- HDMI Output
- Yes x 1
- Display Port
- Yes x 1 (Regular DP)
- HDCP Support
- Yes
- Power Consumption
- up to 225W2 additional 6 pin PCIe power required
-

Dimensions
- 10.7 " x 5.4 " x 1.7 " Inch




































...

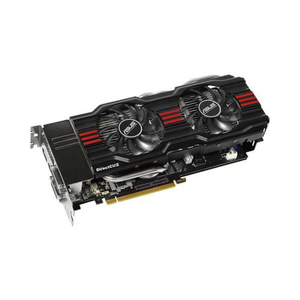

The new Asus GTX670-DC-2GD5 with Digi+ VRM for the ultimate power control & enhanced Overclocking comes with the Asus exclusive Direct CU II for up to 20% better cooling. &12288; 20% cooler & Vastly quieter performance with ASUS exclusive Direct CU II thermal solution&12288;&12288; &12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288; ASUS DIGI+ VRM technology with 6+2 phase Super Alloy Power for precise digital delivery & enhanced overclocked headroom. (compared to 4+2 phase in reference card)&12288;&12288;&12288; GPU Tweak utility means that you can tune graphics card performance & check card status via an intuitive interface&12288;

Specification Model
- GTX670-DC2-2GD5 Graphics Engine
- NVIDIA Ge Force GTX 670 Bus Standard
- PCI Express 3.0 Open GL
- Open GL 4.2 Video Memory
- 2048MBGDDR5 GPU boost Clock
- 980 M Hz GPU base Clock
- 915 M Hz CUDA cores
- 1344 Memory Clock
- 3004 M Hz (1502 MHz GDDR5) Memory Interface
- 256 bit DVI Max. Resolution
- 2560 * 1600 DVI Output
- 1x Native Dual-link DVI-I, 1x Native Dual-link DVI-D HDMI Output
- 1x Native HDMI HDCP compliant
- YES Display Port
- 1x Native Display Port Adapter/ Cable Bundled
- 1x Power cable Software Bundled
- ASUS GPU Tweak& Driver Dimension
- The card size is 10.7x 5.4 x 1.7inches Note &12288; To have the best cooling performance, ASUS GTX670-DC2-2GD5 extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. &12288; • Specifications are subject to change without notice. •PCB color & bundled software versions are change without notice. • Brand & product names mentioned are trademarks of their respective company.



















...

TOP-selected 1137 M Hz core
- 157 M Hz higher than reference for smoother gameplay. Flattened copper heatpipes makes direct contact
...

Specifications GPU
- Nvidia Ge Force GTX 680 Core Clock
- 1006 M Hz Core Boost Clock
- 1058 M Hz Memory Clock
- 6008 M



...

All new Direct CU thermal design utilizes five all-copper heatpipes & 20% bigger dissipation area, achieving 20% cooler & 14d B quieter performance than reference Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power & enhanced overclocking headroom. VGA Hotwire means that you can plug & solder wires on the card’s voltage regulators & accurately read & control Vcore, Vmem, & PLL voltages on a hardware level GPU Tweak utility helps you modify & tune boost clock, power target, & fan performance via an intuitive interface Graphics Engine NVIDIA Ge Force GTX 680 Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1084 MHz GPU Base Clock: 1019 MHz CUDA Core 1536 Memory Clock 6008 MHz (GDDR5 ) Memory Interface 256-bit Resolution DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x Extended SLI cable Software ASUS Utilities & Driver ASUS Features Direct CU Series Super Alloy Power

Dimensions 11.8 " x 5.1 " x 2.3 " Inch Note * To have the best cooling performance, ASUS GTX680-DC2O-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! * Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/

...

All new Direct CU thermal design utilizes five all-copper heatpipes & 20% bigger dissipation area, achieving 20% cooler & 14d B quieter performance than reference. Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power & enhanced overclocking headroom. GPU Tweak utility helps you modify & tune boost clock, power target, & fan performance via an intuitive interface. Graphics Engine
- NVIDIA Ge Force GTX 680 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB GPU Boost Clock
- 1058 MHz GPU Base Clock
- 1006 MHz CUDA Core
- 1536 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 256-bit Resolution
- DVI Max Resolution: 2560x 1600 DVI Output
- Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output
- Yes x 1 Display Port
- Yes x 1 (Regular DP) HDCP Support
- Yes Power Consumption
- up to 300W additional 6+8 pin PCIe power required ASUS Features
- Direct CU Series, Super Alloy Power

Dimensions
- 11.8 " x 5.1 " x 2.3 " Inch Note To have the best cooling performance, ASUS GTX680-DC2-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions.

















...

Cranked 143 M Hz over reference for an ultimate boost clock of 1201 M Hz All new Direct CU thermal design utilizes five all-copper heatpipes & 20% bigger dissipation area, achieving 20% cooler & 14d B quieter performance than reference Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power & enhanced overclocking headroom. VGA Hotwire means that you can plug & solder wires on the card’s voltage regulators & accurately read & control Vcore, Vmem, & PLL voltages on a hardware level GPU Tweak utility helps you modify & tune boost clock, power target, & fan performance via an intuitive interface Graphics Engine NVIDIA Ge Force GTX 680 Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1201 MHz GPU Base Clock: 1137 MHz CUDA Core 1536 Memory Clock 6008 MHz (GDDR5 ) Memory Interface 256-bit Resolution DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x Extended SLI cable Software ASUS Utilities & Driver ASUS Features Direct CU Series TOP Series Super Alloy Power

Dimensions 11.8 " x 5.1 " x 2.3 " Inch Note * To have the best cooling performance, ASUS GTX680-DC2T-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! * Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/ Graphics Engine NVIDIA Ge Force GTX 680 Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1201 MHz GPU Base Clock: 1137 MHz CUDA Core 1536 Memory Clock 6008 MHz (GDDR5 ) Memory Interface 256-bit Resolution DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x Extended SLI cable Software ASUS Utilities & Driver ASUS Features Direct CU Series TOP Series Super Alloy Power

Dimensions 11.8 " x 5.1 " x 2.3 " Inch Note * To have the best cooling performance, ASUS GTX680-DC2T-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! * Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/ Graphics Engine NVIDIA Ge Force GTX 680 Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1201 MHz GPU Base Clock: 1137 MHz CUDA Core 1536 Memory Clock 6008 MHz (GDDR5 ) Memory Interface 256-bit Resolution DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) Accessories 1 x Power cable 1 x Extended SLI cable Software ASUS Utilities & Driver ASUS Features Direct CU Series TOP Series Super Alloy Power

Dimensions 11.8 " x 5.1 " x 2.3 " Inch Note * To have the best cooling performance, ASUS GTX680-DC2T-2GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! * Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/





...

Double the reference video memory at 4GB takes your gaming to new levels of smooth. All new Direct CU thermal design utilizes five all-copper heatpipes & 20% bigger dissipation area, achieving 20% cooler & 14d B quieter performance than reference Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power & enhanced overclocking headroom. GPU Tweak utility helps you modify & tune boost clock, power target, & fan performance via an intuitive interface Graphics Engine
- NVIDIA Ge Force GTX 680 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 4GB Engine Clock: GPU Boost Clock: 1058 MHz GPU Base Clock: 1006 MHz CUDA Core
- 1536 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 256-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface: DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories
- 1 x Power cable Power Consumption
- up to 225W2 additional 6 pin PCIe power required Software
- ASUS GPU Tweak & Driver ASUS

Features: Direct CU Series Super Alloy Power

Dimensions
- 10.7 " x 5.4 " x 1.7 " Inch














...
