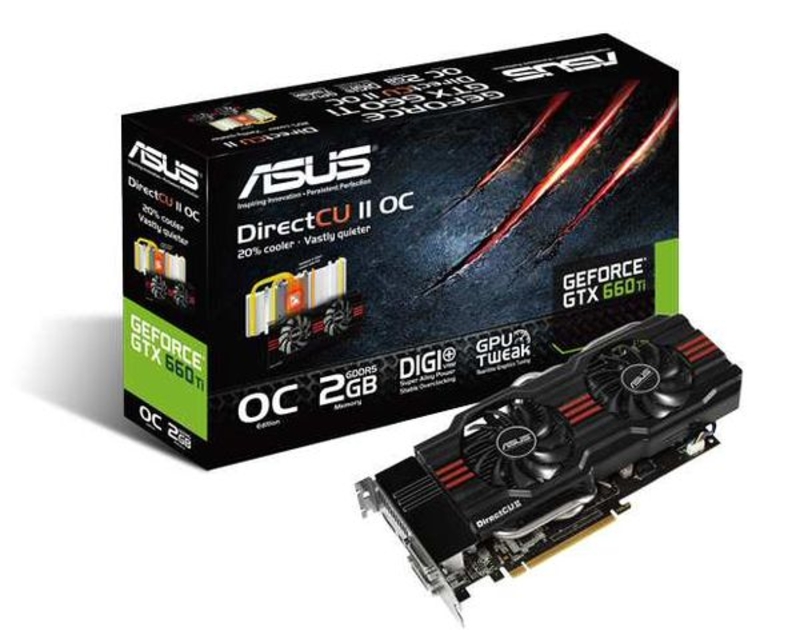

OC-selected 1085 MHz core, 52 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with direct-contact copper heatpipes & much quieter than reference. Premium alloys in power delivery components defeat heat for cards that run 15% faster & last 2.5 times longer than reference. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Specifications Graphics Engine
- NVIDIA Ge Force GTX 650 Ti Boost Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock
- GPU Boost Clock: 1085 MHz / GPU Base Clock: 1020 MHz CUDA Core
- 768 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 192-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes ASUS Features Direct CU Series OC Series Super Alloy Power

Dimensions 8.46 " x 4.8 " x 1.49 " Inch 21.5 x 12.2 x 3.8 Centimeter









...

TOP-selected 1085 M Hz cores run 105 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with twice the dissipation area & 6X greater airflow than conventional design. DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Graphics Engine
- NVIDIA Ge Force GTX 660 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock: GPU Boost Clock: 1085 MHz GPU Base Clock: 1020 MHz CUDA Core
- 960 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 192-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface: DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption
- up to 150W1 additional 6 pin PCIe power required Software
- ASUS GPU Tweak & Driver ASUS

Features: Direct CU Series OC Series Super Alloy Power

Dimensions
- 10.2 " x 5.2 " x 1.5 " Inch













...

Asus Direct CU II thermal design utilizes all-copper heatpipes to run 20% cooler. Acclaimed DIGI+ VRM with 6-phase Super Alloy Power technology delivers precise digital power & enhanced durability for stable overclocking. Specifications Graphics Engine
- Nvidia Ge Force GTX 660 Bus Standard
- PCI-Express 3.0 Video Memory
- 2048MB GDDR5 GPU Boost Clock
- 1085 M Hz GPU Base Clock
- 1020 M Hz Cuda Cores
- 960 Memory Clock
- 6008 M Hz (1502 M Hz GDDR5) Memory Interface
- 192bit Outputs
- Dual DVI, Display Port, HDMI HDCP compliant
- Yes









...

TOP-selected 1085 M Hz cores run 105 MHz higher than reference for smoother gameplay. Direct CU achieves 20% lower temps with twice the dissipation area & 6X greater airflow than conventional design. DIGI+ VRM with Super Alloy Power delivers superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Specifications Graphics Engine
- Nvidia Ge Force GTX 660 Bus Standard
- PCI-Express 3.0 Video Memory
- 2048MB GDDR5 GPU Boost Clock
- 1085 M Hz GPU Base Clock
- 1020 M Hz Cuda Cores
- 960 Memory Clock
- 6008 M Hz (1502 M Hz GDDR5) Memory Interface
- 192bit Outputs
- Dual DVI, Display Port, HDMI HDCP compliant
- Yes Power consumption
- Up to 150W (1 x 6pin power adapter required)










...

Video Memory
- 2048MB GDDR5 GPU boost Clock
- 980 MHz GPU base Clock
- 915 MHz CUDA cores
- 1344 Memory Clock
- 6008




...

ASUS GTX 670 Direct CU II: the 4GB powerhouse to rule your game Double the reference video memory at 4GB takes your gaming to new levels of smooth. Flattened copper heatpipes makes direct contact with the GPU surface so heat is dissipated efficiently, delivering a 20% cooler & vastly quieter performance than reference. Acclaimed DIGI+ VRM with 8-phase Super Alloy Power technology delivers precise digital power & enhanced durability for stable overclocking. GPU Tweak utility helps you modify & tune clocks (including new boost clock settings), power consumption targets, voltages, & fan performance via an intuitive interface

Specification
-
- Graphics Engine
- NVIDIA Ge Force GTX 670
- Bus Standard
- PCI Express 3.0
- Video Memory
- GDDR5 4GB Engine Clock
-
- GPU Boost Clock
- 980 MHz
- GPU Base Clock
- 915 MHz
- CUDA Core
- 1344
- Memory Clock
- 6008 MHz (1502 MHz GDDR5 )
- Memory Interface
- 256-bit
- Resolution
- DVI Max Resolution: 2560x 1600 Interface
-
- DVI Output
- Yes x 1 (DVI-I), Yes x 1 (DVI-D)
- HDMI Output
- Yes x 1
- Display Port
- Yes x 1 (Regular DP)
- HDCP Support
- Yes
- Power Consumption
- up to 225W2 additional 6 pin PCIe power required
-

Dimensions
- 10.7 " x 5.4 " x 1.7 " Inch




































...

The new Asus GTX670-DC-2GD5 with Digi+ VRM for the ultimate power control & enhanced Overclocking comes with the Asus exclusive Direct CU II for up to 20% better cooling. &12288; 20% cooler & Vastly quieter performance with ASUS exclusive Direct CU II thermal solution&12288;&12288; &12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288;&12288; ASUS DIGI+ VRM technology with 6+2 phase Super Alloy Power for precise digital delivery & enhanced overclocked headroom. (compared to 4+2 phase in reference card)&12288;&12288;&12288; GPU Tweak utility means that you can tune graphics card performance & check card status via an intuitive interface&12288;

Specification Model
- GTX670-DC2-2GD5 Graphics Engine
- NVIDIA Ge Force GTX 670 Bus Standard
- PCI Express 3.0 Open GL
- Open GL 4.2 Video Memory
- 2048MBGDDR5 GPU boost Clock
- 980 M Hz GPU base Clock
- 915 M Hz CUDA cores
- 1344 Memory Clock
- 3004 M Hz (1502 MHz GDDR5) Memory Interface
- 256 bit DVI Max. Resolution
- 2560 * 1600 DVI Output
- 1x Native Dual-link DVI-I, 1x Native Dual-link DVI-D HDMI Output
- 1x Native HDMI HDCP compliant
- YES Display Port
- 1x Native Display Port Adapter/ Cable Bundled
- 1x Power cable Software Bundled
- ASUS GPU Tweak& Driver Dimension
- The card size is 10.7x 5.4 x 1.7inches Note &12288; To have the best cooling performance, ASUS GTX670-DC2-2GD5 extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. &12288; • Specifications are subject to change without notice. •PCB color & bundled software versions are change without notice. • Brand & product names mentioned are trademarks of their respective company.



















...

TOP-selected 1137 M Hz core
- 157 M Hz higher than reference for smoother gameplay. Flattened copper heatpipes makes direct contact
...

TOP-selected 1058 M Hz core -78 M Hz higher than reference for smoother gameplay. Flattened copper heatpipes makes direct contact with the GPU surface so heat is dissipated efficiently, delivering a 20% cooler & vastly quieter performance than reference. Acclaimed DIGI+ VRM with 8-phase Super Alloy Power technology delivers precise digital power & enhanced durability for stable overclocking. GPU Tweak utility helps you modify & tune clocks (including new boost clock settings), power consumption targets, voltages, & fan performance via an intuitive interface

Specification
- Graphics Engine
- NVIDIA Ge Force GTX 670 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock GPU Boost Clock: 1058 MHz GPU Base Clock: 980 MHz CUDA Core
- 1344 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 256-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes ASUS Features Direct CU Series OC Series Super Alloy Power Power Consumption up to 225W2 additional 6 pin PCIe power required

Dimensions
- 10.7 " x 5.4 " x 1.7 " Inch












...

Specifications GPU
- Nvidia Ge Force GTX 680 Core Clock
- 1006 M Hz Core Boost Clock
- 1058 M Hz Memory Clock
- 6008 M



...
