IT’S TIME FOR EXTREME, PROFESSIONAL PERFORMANCE. The ASRock Intel Z490M PRO4 is a Micro ATX motherboard, which supports 10th Gen & future generation Intel Core™ Processors & supports AMD Quad Cross Fire X™ & Cross Fire X™. The Z490M PRO4 boasts rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs. Improve your networking capabilities with Intel LAN, users can choose wireless connections by an M.2 (Key E) slot. The I/O offers Dual USB (Universal Serial Bus) 3.2 Gen 2 & various connectivity ports for super speedy transfer rates. Enjoy stunning customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, movie goers, or anyone who is looking for an outstanding sound experience in high definition. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) & enjoy the base frequency boost with the hidden power of processors immediately. RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock Intel Z490M PRO4 provides an outstanding performance & superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis & any RGB devices smoothly.

Includes:: two Addressable RGB LED Headers & two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. ASRock Z490M PRO4 features Gigabit Intel LAN which provides the best throughput performance, lower CPU utilization, enhanced stability & is able to deliver ultimate network experience to users. This motherboard has Dual onboard Type-A & Type-C USB (Universal Serial Bus) 3.2 Gen 2 ports, built on the rear I/O for supporting next generation USB (Universal Serial Bus) 3.2 Gen 2 devices & to deliver up to 10 Gbps data transfer rates. In total eight (USB 3.2 Gen 1 4 on the front), 2 on the rear side. NAHIMIC AUDIO TAKES YOU TO ANOTHER DIMENSION Whether you are using headphones, a headset, external or internal speakers, via USB (Universal Serial Bus), Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant & rich with details. The Z490M Series motherboard offers completely immersive audio & with gold audio jacks you get stable sound transmission. Ready for higher capacity & even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6 Gb/s & PCIe Gen 3 x 4 modes, pushing data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD Heat Dissipating PCB gives the motherboard a more mysterious touch & this design effectively takes the heat away from PCB & lower down the temperature up to 4.1 degrees.

...

Features Supports 10th Gen Intel Core™ processors (Socket 1200). Supports DDR4 4400 M Hz+ (OC). 1 PCIe 3.0 x 16. Graphics Output Options: HDMI, Display Port. 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio. 4 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3), 1 Ultra M.2 (PCIe Gen 3 x 4). 4 USB (Universal Serial Bus) 3.2 Gen 2 Type-A (Rear). 4 USB (Universal Serial Bus) 3.2 Gen 1 (Rear Type A+C, 2 Front). Dragon 2.5 Gigabit LAN, Intel Gigabit LAN. Intel 802.11ac Wi Fi + BT 4.2. Dual Band 802.11 ac Wi Fi Besides the onboard LAN port, users may also choose 802.11ac (2.5/5 Ghz) wireless connections. Dragon 2.5 Gb/s LAN Up to 2.5x bandwidth compared to the standard gigabit ethernet, you’ll enjoy the faster connectivity experience for gaming, file transfers & backups. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best. Intel LAN Better performance, lowered CPU utilisation & enhanced stability. Nahimic Audio Nahimic 3D sound technologies recreate the sound experience of 7.1 channels on a regular stereo listening system such as headphones or speakers. It has been optimised to satisfy gamers, moviegoers, or music lovers & anyone who is looking for an outstanding sound experience in high definition. Polychrome RGB Built your own colourful lighting system! The latest RGB LED header & addressable RGB LED header allows user to connect LED strip & create unique PC style easily & it also supports RGB sync! ...

Features Supports 10th Gen Intel Core™ Processors & 11th Gen Intel Core™ Processors 12 Phase Dr.MOS Power Design Supports DDR4 4800 M Hz (OC) 1 x PCIe 4.0 x 16, 1 x PCIe 3.0 x 16, 2 x PCIe 3.0 x 1 1 x M.2 Key-E for Wi Fi Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 4 SATA3, 1 x Hyper M.2 (PCIe Gen 4 x 4 & SATA3) 1 x Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 x Rear USB (Universal Serial Bus) 3.2 Gen 2 (10 Gb/s) Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing enhanced thermal result & superior performance. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced & enhanced Vcore voltage to the motherboard. Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory & limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck & increase performance. PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. 6 Layer PCB The 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces & power shapes delivering lower temperature & higher energy efficiency for memory overclocking! Thus, its able to support the latest DDR4 memory modules with most extreme memory performance! ...

Features ASRock Super Alloy Intel Quad-Core Processor J3455 (up to 2.3 GHz) Supports DDR3/DDR3L 1866 SO-DIMM 1 PCIe 2.0 x 16 (x 2 mode) Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 2 SATA3 5 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 3 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop Overview D-Sub, HDMI, Parallel, COM Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback. HEVC 10-bit Decoding Supports HEVC 10-bit decoding to provide substantially enhanced video quality & higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, & greater range between the brightest & darkest part of the image Intel Quad-Core Processor J3455 (Up to 2.3 GHz) enhanced performance, lower power consumption, & new multimedia capabilities. Supports Standard & Low Voltage SO-DIMMs Capable of supporting both standard & low-voltage SO-DIMMs.

Specification Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop CPU
- Intel Quad-Core Processor J3455 (up to 2.3 GHz) Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots*
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB** *2GB DRAM per module is not supported. ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 64 Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug & Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support Audio, Video & Networking Graphics
- Integrated Intel HD Graphics 500: 12 EUs inside (Up to 750 M Hz)
- Direct X 12, Pixel Shader 5.0
- Dual graphics output: support D-Sub & HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (3840x 2160) @ 30 Hz or 2560x 1600 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots
- 1 x PCI Express 2.0 x 16 Slot (PCIE1: x 2 mode) Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI & Hot Plug Connector
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_1_2 is shared with USB2_3. Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software
- ASRock Power Gear
- ASRock XFast LAN* UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables Hardware Monitor
- CPU/ Chassis temperature sensing
- CPU/ Chassis Fan Tachometer
- CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/ Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit*
- Linux: Ubuntu 16.10 / Fedora 25 * For the updated Windows 10 driver, please visit ASRocks website for details. Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required) Caution: Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components & devices of your system. It should be done at your own risk & expense. We are not responsible for possible damage caused by overclocking.









































































...

Features ASRock Super Alloy Intel Quad-Core Processor J4105 (up to 2.5 GHz) Supports DDR4 2133/2400 SO-DIMM 1 PCIe 2.0 x 1, 1 M.2 (Key E) Graphics Output Options: D-Sub, HDMI, DVI-D 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 4 SATA3 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop

Specification Unique Feature ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Intel Quad-Core Processor J4105 (up to 2.5 GHz) Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 SO-DIMM Slots*
- Supports DDR4 2400/2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB** *2GB DRAM per module is not supported. ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug & Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support Graphics
- Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750 M Hz)
- DX12, Open GL 4.3, OGL ES 3.0, Open CL 2.0
- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl 5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl 5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 2048x 1536 @ 60 Hz
- Supports Auto Lip Sync, xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D & HDMI Ports Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots
- 1 x PCI Express 2.0 x 1 Slot
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module & Intel CNVi (Integrated Wi Fi/BT) Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI & Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug Connector
- 1 x COM Port Header
- 1 x Chassis Intrusion & Speaker Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection)* *USB3_0_1 is shared with USB_0_1. Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock XFast LAN UEFI
- ASRock Instant Flash
- ASRock Internet Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket Hardware Monitor
- CPU/ Chassis temperature sensing
- CPU/ Chassis Fan Tachometer
- CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/ Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit* * Supports UEFI mode only Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)











































































...

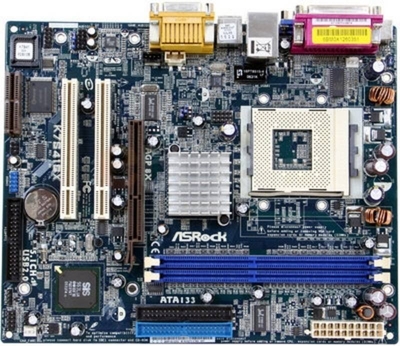

As Rock K7S41GX2 Socket 462 VGA 5.1 Channel Audio Micro ATX Motherboard Product Specifications General CPU:
- Socket 462 for AMD
...

M8 is sold as a barebone system, which only

Includes:: a chassis, power supply, mini-ITX motherboard, fans

...

Using AIWI to connect your apple devices to ASRock system, & you can interact with the PC games with delicate touches & body motion while getting responsive shakes & vibrations that correspond from the game stores. ASRock OC tuner is a user-friendly ASRock overclocking tool which means that you can guard your system by hardware monitor function & overclock your hardware devices to get the best system performance. ASRock intelligent energy saver is a function to improve energy efficiency by disabling extra phases when CPU is at light loading. OC DNA, its an exclusive utility developed by ASRocks outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system & simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile & send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours! ASRock instant flash is an exclusive & the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows. Product Specifications CPU Support up to 95W Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors 6-Core CPU Ready Supports UCC feature (Unlock CPU Core) Supports AMDs Cool n Quiet Technology FSB 1000 MHz (2.0 GT/s) Supports Untied Overclocking Technology Supports Hyper-Transport Technology * For more information, please refer to the "CPU Support List on Asrock". Chipset NVIDIA Ge Force 7025 / n Force 630a Memory Dual Channel DDR3 memory technology 2 x DDR3 DIMM slots Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory Max. capacity of system memory: 8GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 4 Mb AMI Legal BIOS Supports " Plug & Play" ACPI 1.1 Compliance Wake Up Events Supports jumperfree SMBIOS 2.3.1 Support CPU, VCCM Voltage Multi-adjustment Graphics Integrated NVIDIA Ge Force 7025 graphics DX9.0 VGA, Pixel Shader 3.0 Max. shared memory 256MB Supports D-Sub with max. resolution up to 1920x 1440 @ 60 Hz Audio 5.1 CH HD Audio (VIA VT1705 Audio Codec) LAN Gigabit LAN 10/100/1000 Mb/s Giga PHY RTL8211CL Supports Wake-On-LAN Supports PXE Slots 1 x PCI Express x 16 slot 1 x PCI Express x 1 slot 2 x PCI slots Connector 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 & JBOD), NCQ & " Hot Plug" functions 1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x Print Port header CPU/ Chassis FAN connector 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector 2 x USB (Universal Serial Bus) 2.0 headers (support 4 USB (Universal Serial Bus) 2.0 ports) I/O Panel 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Serial Port: COM1 1 x VGA Port 4 x Ready-to-Use USB (Universal Serial Bus) 2.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) HD Audio Jack: Line in / Front Speaker / Microphone Unique Feature ASRock OC Tuner Intelligent Energy Saver Instant Boot ASRock Instant Flash ASRock OC DNA ASRock AIWI ASRock APP Charger Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) Support CD Drivers, Utilities, Anti Virus Software (Trial Version), ASRock Software Suite (Cyber Link DVD Suite
- OEM & Trial; Creative Sound Blaster X-Fi MB
- Trial) Accessories Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables Hardware Monitor CPU Temperature Sensing Chassis Temperature Sensing CPU Fan Tachometer Chassis Fan Tachometer CPU Quiet Fan Voltage Monitoring: +12V, +5V, +3.3V, Vcore Form Factor Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm OS Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant Certifications FCC, CE

...

ASRock N68-GS4 FX Socket AM3+ VGA 5.1 CH HD Audio Micro ATX Motherboard Product Specifications General CPU Support up to 95W Socket AM3+ processors Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors Supports UCC feature (Unlock CPU Core) Supports AMD's Cool 'n' Quiet Technology FSB 1000 MHz (2.0 GT/s) Supports Untied Overclocking Technology Supports Hyper-Transport Technology * For more information, please refer to the "CPU Support List". Chipset
- NVIDIA Ge Force 7025 / n Force 630a Memory Dual Channel DDR3 Memory Technology 2 x DDR3 DIMM Slots Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 16GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 8 Mb AMI Legal BIOS Supports " Plug & Play" ACPI 1.1 Compliant wake up events Supports jumperfree SMBIOS 2.3.1 support CPU, VCCM, NB Voltage multi-adjustment Audio, Video & Networking Graphics Integrated NVIDIA Ge Force 7025 graphics DX9.0 VGA, Pixel Shader 3.0 Max. shared memory 256MB Supports D-Sub with max. resolution up to 1920x 1440 @ 60 Hz Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) LAN PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Qualcomm Atheros AR8171 Supports Qualcomm Atheros Security Wake On Internet Technology Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 1 x PCI Express x 16 Slot 1 x PCI Express x 1 Slot (Supports PCIe add-on cards up to 8cm in length) 2 x PCI Slots Storage
- 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 & JBOD), NCQ & Hot Plug * This mainboard does not support RAID with HDDs of 3TB & above. Connector 1 x ATA133 IDE Connector (supports 2 x IDE devices) 1 x Floppy Connector 1 x Print Port Header 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) Rear Panel I/O 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Serial Port: COM1 1 x D-Sub Port 4 x USB (Universal Serial Bus) 2.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature ASRock Cloud ASRock OC Tuner ASRock Instant Boot ASRock Instant Flash ASRock OC DNA ASRock APP Charger ASRock XFast USB (Universal Serial Bus) ASRock XFast LAN ASRock XFast RAM Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, Start 8 (30 days trial) Hardware Monitor CPU temperature sensing Chassis temperature sensing CPU Fan Tachometer Chassis Fan Tachometer CPU Quiet Fan CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor - Micro ATX Form Factor OS - Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit Certifications - FCC, CE, WHQL



...

Features ASRock Super Alloy Supports Socket AM3+/AM3 processors Supports DDR3 1866 1 PCIe x 16, 1 PCIe x 1, 1 PCI Graphics Output: D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 4 SATA2 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear), 6 USB (Universal Serial Bus) 2.0 (4 Front, 2 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop Overview 4 x USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Four USB (Universal Serial Bus) 3.1 Gen 1 5 Gb/s ports (Two in the front & two on the rear) for supporting all of your peripherals with fast data transfer speed. AM3+ 8-Core Processor Support This board is designed to build up the most powerful system & delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream & entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3u A. This is the key to reduce noise level significantly & satisfy even the pickiest audiophiles. Solid Capacitor Design ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably & ensure longer lifetime. Gigabit LAN This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.

Specification CPU
- Supports Socket AM3+ processors
- Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- 4 + 1 Power Phase design
- Supports UCC feature (Unlock CPU Core)
- Supports AMDs Cool n Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology Chipset
- NVIDIA Ge Force 7025 / n Force 630a Memory
- Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS Software
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock OC Tuner
- ASRock OC DNA* BIOS
- ASRock Instant Boot
- ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Audio, Video & Networking Graphics
- Integrated NVIDIA Ge Force 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x 1440 @ 60 Hz Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211E
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots
- 1 x PCI Express x 16 Slot
- 1 x PCI Express x 1 Slot
- 1 x PCI Slot Storage
- 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 & JBOD), NCQ & Hot Plug * This mainboard does not support RAID with HDDs of 3TB & above. Connector
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header by Etron EJ188H (PCIE GEN1) (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Etron EJ188H) (PCIE GEN1) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables Hardware Monitor
- CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor
- Micro ATX Form Factor: 8.7-in x 7.2-in, 22.1 cm x 18.3 cm
- Solid Capacitor design OS
- Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required) Caution: Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components & devices of your system. It should be done at your own risk & expense. We are not responsible for possible damage caused by overclocking. Short Description (Title on page) ASRock Fatal 1ty AB350 Gaming-ITX Motherboard Custom Title (long) ASRock Fatal 1ty AB350 Gaming-ITX/ac AM4 Intel DDR4 ITX Motherboard Page Title Same as above Page Summary Buy our Fatal 1ty AB350 Gaming-ITX/ac motherboard from our wide range of motherboards. It features DDR4 support & socket AM4. Bullets Socket AM4 Ryzen processor DDR4 support ITX Form Factor Features ASRock Super Alloy Supports Socket AM3+/AM3 processors Supports DDR3 1866 1 PCIe x 16, 1 PCIe x 1, 1 PCI Graphics Output: D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 4 SATA2 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear), 6 USB (Universal Serial Bus) 2.0 (4 Front, 2 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop Overview 4 x USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Four USB (Universal Serial Bus) 3.1 Gen 1 5 Gb/s ports (Two in the front & two on the rear) for supporting all of your peripherals with fast data transfer speed. AM3+ 8-Core Processor Support This board is designed to build up the most powerful system & delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream & entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3u A. This is the key to reduce noise level significantly & satisfy even the pickiest audiophiles. Solid Capacitor Design ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably & ensure longer lifetime. Gigabit LAN This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.

Specification CPU
- Supports Socket AM3+ processors
- Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- 4 + 1 Power Phase design
- Supports UCC feature (Unlock CPU Core)
- Supports AMDs Cool n Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology Chipset
- NVIDIA Ge Force 7025 / n Force 630a Memory
- Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS Software
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock OC Tuner
- ASRock OC DNA* BIOS
- ASRock Instant Boot
- ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Audio, Video & Networking Graphics
- Integrated NVIDIA Ge Force 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x 1440 @ 60 Hz Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211E
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots
- 1 x PCI Express x 16 Slot
- 1 x PCI Express x 1 Slot
- 1 x PCI Slot Storage
- 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 & JBOD), NCQ & Hot Plug * This mainboard does not support RAID with HDDs of 3TB & above. Connector
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header by Etron EJ188H (PCIE GEN1) (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Etron EJ188H) (PCIE GEN1) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables Hardware Monitor
- CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor
- Micro ATX Form Factor: 8.7-in x 7.2-in, 22.1 cm x 18.3 cm
- Solid Capacitor design OS
- Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required) Caution: Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components & devices of your system. It should be done at your own risk & expense. We are not responsible for possible damage caused by overclocking.

















































































































































...
