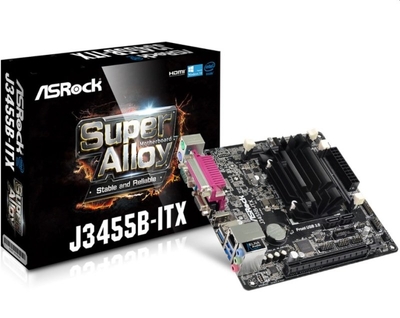

ASRock J3455B-ITX With Intel Processor J3455 Intel DDR3 ITX
Motherboard

Features ASRock Super Alloy Intel Quad-Core Processor J3455(up to 2.3 GHz) Supports DDR3/DDR3L 1866 SO-DIMM 1 PCIe 2.0 x16 (x2 mode) Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 2 SATA3 5 USB 3.1 Gen1 (2 Front, 3 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop Overview D-Sub, HDMI, Parallel, COM Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback. HEVC 10-bit Decoding Supports HEVC 10-bit decoding to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part
of the image Intel Quad-Core Processor J3455 (Up to 2.3 GHz) Improved performance, lower power consumption, and new multimedia capabilities. Supports Standard & Low Voltage SO-DIMMs Capable of supporting both standard and low-voltage SO-DIMMs. Specification Unique Feature ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop CPU - Intel Quad-Core Processor J3455 (up to 2.3 GHz) Memory - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L SO-DIMM Slots* - Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB** *2GB DRAM per module is not supported. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage
under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support Audio, Video and Networking Graphics - Integrated Intel HD Graphics 500: 12 EUs inside (Up to 750MHz) - DirectX 12, Pixel Shader 5.0 - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC
(H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Expansion / Connectivity Slots - 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) Storage - 2 x
SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug Connector - 1 x COM Port Header - 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_1_2 is shared with USB2_3. Rear Panel I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Parallel Port (ECP/EPP Support) - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 3 x USB 3.1 Gen1 Ports (Supports ESD
Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Software and BIOS Software - ASRock Power Gear - ASRock XFast LAN* UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan
multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design OS - Microsoft Windows 10 64-bit* - Linux: Ubuntu 16.10 / Fedora 25 *For the updated Windows 10 driver, please visit ASRocks website for details. Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) Caution: Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Availability: In Stock
Supplier: Ebuyer
SKU: 805472

Description Reviews / Comments Add New

Product Description

Features ASRock Super Alloy Intel Quad-Core Processor J3455 (up to 2.3 GHz) Supports DDR3/DDR3L 1866 SO-DIMM 1 PCIe 2.0 x 16 (x 2 mode) Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 2 SATA3 5 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 3 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop Overview D-Sub, HDMI, Parallel, COM Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback. HEVC 10-bit Decoding Supports HEVC 10-bit decoding to provide substantially enhanced video quality & higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, & greater range between the brightest & darkest part of the image Intel Quad-Core Processor J3455 (Up to 2.3 GHz) enhanced performance, lower power consumption, & new multimedia capabilities. Supports Standard & Low Voltage SO-DIMMs Capable of supporting both standard & low-voltage SO-DIMMs.

Specification Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop CPU
- Intel Quad-Core Processor J3455 (up to 2.3 GHz) Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots*
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB** *2GB DRAM per module is not supported. ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 64 Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug & Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support Audio, Video & Networking Graphics
- Integrated Intel HD Graphics 500: 12 EUs inside (Up to 750 M Hz)
- Direct X 12, Pixel Shader 5.0
- Dual graphics output: support D-Sub & HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (3840x 2160) @ 30 Hz or 2560x 1600 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots
- 1 x PCI Express 2.0 x 16 Slot (PCIE1: x 2 mode) Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI & Hot Plug Connector
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_1_2 is shared with USB2_3. Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software
- ASRock Power Gear
- ASRock XFast LAN* UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables Hardware Monitor
- CPU/ Chassis temperature sensing
- CPU/ Chassis Fan Tachometer
- CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/ Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit*
- Linux: Ubuntu 16.10 / Fedora 25 * For the updated Windows 10 driver, please visit ASRocks website for details. Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required) Caution: Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components & devices of your system. It should be done at your own risk & expense. We are not responsible for possible damage caused by overclocking.

Reviews/Comments

Add New

Jargon Buster

USB - Universal Serial Bus

HDMI - High-Definition Multimedia Interface

Blu-ray - 25GB / 50GB Disc format

LAN - Local Area Network

Full HD - 1080 lines of vertical resolution

SO-DIMM - Small Outline Dual in-line Memory Module - mainly used in Laptop Computers

PCB - Printed Circuit Board

LED - Light Emitting Diode - a small light source

DIMM - Dual In-Line Memory Module

NON-ECC - Does not have error correcting code

PCI - Peripheral Component Interconnect - Used as an expansion interface in computers

2GB - 2 Gigabytes

4GB - 4 Gigabytes

Printer - A device used for the physical output of documents

SATA - Serial Advanced Technology Attachment - a connection type for additional drives

CPU - Central processing unit. The processing centre of computer programs. The faster the processor usually the faster the computer

Resolution - The number of pixels a device can display

Chrome - A shiney metalic finish where chromium is electroplated onto an object

Energy Efficient - A term used to describe an electrical item which makes the good use of energy

Cm - Centimetres, one centimetre is equal to 10 milimetres

Glass - A solid, typically transparent. Brittle and used in windows. The first patent granted in the UK was for Glass.

hot - An indication of the temperature being high and a sensation of heat to the tough

Cable - A series of wires bonded to form a single thread

Graphics - A general term for visual aspects of an item/display

Keyboard - A device with keys, letters, numbers and function keys used for interacting with a device

Keyboard - A musical instrument similar to a piano

Chrome - A shiney bright metalic coating of chromium applied to metals

Intel - World leaders in silicon chip development and manufacture. Chips for Laptops, desktops and mobile devices. Their main competitor is AMD (Advanced Micro Devices)

Microphone - A device for recording sounds. Also known as a mic.

Audio - Also known as sound. An audible vibration wave which can be heard.

speed - A measurement of how fast an object travels between two points

Quality - An object that has quality is superior in function and finish than a less quality object.

Size - is the measurement of how big an object is in space.

Quick - Something that is fast

Components - Multiple items used to complete the product.

USB - Universal Serial Bus. A method of connecting a device to a computer

Quad - Multiple items, meaning four

LED - Light Emitting Diode. A bulb that is very efficient at producing light. Often small.

Parallel - Two objects that run symmetrically alongside each other.

Specification - A description of a product with the details of its attributes.

Processor - A part of a computer or machine that processes functions,

CD - A disc that plays music, short for compact disc.

Voltage - A measurement of volts.

Experience - To gain further knowledge by practising.

Design - A drawing or styles that shows the look and functionality of something before its made.

Solid - Something that is firm and not liquid, a hard shape that cannot be changed easily.

Feature - An attribute that makes something stand out.

Slots - A narrow opening which something can be inserted into, or a machine commonly found in casinos to win money and tokens.

Performance - When someone is presenting a form of entertainment, also how well someone is doing within a role.

Fan - A piece of equipment that has blades that rotate to cool the air, can be installed within other equipment,

Memory - A way to describe the way in which the brain can remember things.

Supplier Information

Ebuyer

Ebuyer.com is an uber cool website for those looking for latest electronic gadgets. With host of freebies and discounted prices across a range of electronic devices right from computers to household appliances, Ebuyer has the distinction of being one of the prominent online electronic gadget retailers in UK. The site showcases over 19,000 quality products from reputed brands such as Apple, Sony, HP and Acer. Computing devices on offer include desktops, tablets, laptops and smart phones, hard drives, flash memory, memory, processors, graphics cards from AMD and NVIDIA, motherboards and other computer components, peripherals, software, audio visual and gaming devices. This site also has a comprehensive collection of household appliances for the homemakers.

More From Contributor

ASRock J3455B-ITX With Intel Processor J3455 Intel DDR3 ITX
Motherboard

Product Description

Reviews/Comments

Add New

Intelligent Comparison

Price History

Vouchers

Facebook

Jargon Buster

Supplier Information

Community Generated Product Tags

Contact Us

Information

My Account

More From Contributor

ASRock J3455B-ITX With Intel Processor J3455 Intel DDR3 ITX Motherboard

Product Description

Reviews/Comments

Add New

Intelligent Comparison

Price History

Vouchers

Facebook

Jargon Buster

Supplier Information

Community Generated Product Tags

ASRock J3455B-ITX With Intel Processor J3455 Intel DDR3 ITX
Motherboard
