The STHDBTRX works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat 5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display. Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense & hassle of running multiple devices with an HDMI matrix switch & extender in one clutter-free system. Because the signal is extended using standard Cat 5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors. For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender & receiver cables. The STHDBTRX is backed by a Star Tech.com 2-year warranty & free lifetime technical support. The Star Tech.com Advantage Cost-saving installation, with non-proprietary Cat 5e/ Cat 6 cabling Eliminate clutter, & reduce failure points using an all-in-one HDMI switch, splitter, & extender, with mounting brackets included Hassle-free operation with Serial, Ethernet, or IR control ...

Extend an HDMI® video & audio over standard CAT5 cabling, with support for RS232 Serial & Infrared control Integrated bi-directional RS232 & IR interfaces enable you to communicate with, monitor & control your source audio-video device, from either end of the connection Support for full 1080p resolution with accompanying digital audio, which lets you display your content the way it's meant to be seen & heard BENEFITS 3 The ST121UTPHD2 HDMI® over Cat 5 Extender Kit can extend the audio & video signal output from an HDMI®-equipped device by up to 330 feet (100 Meters), over a single CAT5 cable, or up to 165 Feet (50 Meters) over a single CAT6 cable. The extender supports full High-Definition video (1080p) & HD 3D, & also extends the accompanying digital audio signal. For convenient, time-saving control of the media source, the CAT5 HDMI extender offers bi-directional RS232 serial & Infrared (IR) interfaces, which enable you to control the HDMI audio-video source from either end of the connection. The HDMI over CAT5 Extender Kit

Includes:: both the HDMI® to CAT5 transmitter & the Cat 5 to HDMI receiver needed for a cost-effective, ready-to-use digital signage solution. To help ensure seamless performance without any unexpected or unnecessary interruptions, the HDMI Ethernet transmitter & receiver units are fully compliant with High Speed HDMI® & HDCP standards, & each unit features lockable power connectors to prevent accidental disconnections. The ST121UTPHD2 HDMI over Cat 5 Extender Kit is backed by a Star Tech.com 2-year warranty & free lifetime technical support. What’s in the box Local HDMI® Extender Unit Remote HDMI® Receiver Unit IR Receiver Cable IR Transmitter Cable HDMI Cable
- 4 ft (1.2 Meters) Universal Power Adapter NA / UK / EU User Manual


...

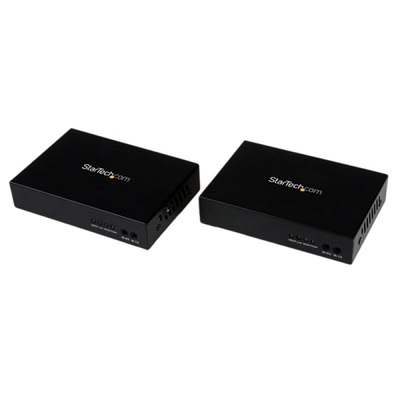

The ST121HDBTPW video extender kit enables you to extend HDMI audio/video up to 330 feet (100 meters) over a single CAT5e/6 cable. For added versatility, the extender kit supports Power over Cable (POC), which allows power to be sent over the CAT5e/CAT6 cable, powering both the transmitter & receiver with just one adapter. To help you save installation costs, the extender kit can be installed using new or non-existing non-proprietary Ethernet infrastructure wiring with the included mounting brackets. Plus, with support for High-Definition resolutions of up to 1080p & 4K plus the accompanying digital audio, the HDMI extender lets you get the most of your high-end A/V equipment. The HDMI extender kit

Includes:: both the local transmitter & remote receiver units
- perfect for point-to-point digital signage applications. To add to the maximum extension distance, the HDMI extender supports HDMI cables up to 32ft on both the local & remote ends. The ST121HDBTPW is backed by a Star Tech.com 2-year warranty & free lifetime technical support.


...

Connect to, & share an HDMI® display or projector over an IP network The choice of USB (Universal Serial Bus) to HDMI or HDMI over IP offers maximum flexibility for any application where a PC to HDMI connection is required Two integrated USB (Universal Serial Bus) ports for connecting peripherals on the display / remote side gives you the flexibility to control or communicate with the source PC from a distance Audio support when using the USB (Universal Serial Bus) to HDMI conversion function offers a complete HDMI solution for any application The IPUSB2HD2 HDMI® over IP Extender delivers a versatile HDMI-IP link between PCs on your network & an HDMI monitor/projector, at full high definition (1080p, 1920x 1080) video resolution. Accompanying audio signals are transmitted directly through the HDMI output, or separately through the built-on 3.5mm stereo output port. An ideal solution for sharing a display or projector over an Ethernet network so that even PCs lacking digital video output can still connect, the IP/HDMI adapter can communicate through a network router at transmission distances up to 100m (300ft). Plus, it offers 2 USB (Universal Serial Bus) 2.0 ports on the display side, to connect & share peripherals such as USB (Universal Serial Bus) storage or keyboard/mouse input with the connected PC. Alternatively, the device can be used directly connected as a USB (Universal Serial Bus) to HDMI adapter. Backed by a Star Tech.com 2-year warranty & free lifetime technical support. What’s in the box IP or USB (Universal Serial Bus) to HDMI Converter Universal Power Adapter (US/UK/EU/AUS) Driver & Software CD Instruction Manual ...

The ST121HDBTE HDMI over CAT5e/6 Video Extender kit lets you extend HDMI video & audio up to 230 feet (70 Meters) over a single Cat 5e/6 cable. For added versatility, both the Transmitter & Receiver can be powered by the same single power source using Power Over Cable (POC). With support for High-Definition resolutions of up to 1920x 1080 & the accompanying digital audio, this cost-effective HD extender is a plug-&-play solution that can easily be installed using new or existing Ethernet infrastructure wiring. Plus, with Power Over Cable both Transmitter & Receiver can be powered using a single power adapter that can be connected to either device. The HDMI over Cat 6 Video Extender kit

Includes:: both the local transmitter & remote receiver units, plus mounting hardware
- perfect for point-to-point digital signage applications that require high quality HDMI video, & a tidy, professional installation.

Specification Audio: Yes Ports: 1 Cabling: Cat 5e UTP or better Daisy-Chain: No Output Signal: HDMI Connectors Connector A: 1
- HDMI (19 pin) Latching Female Connector A: 1
- RJ-45 Female Connector B: 1
- HDMI (19 pin) Female Connector B: 1
- RJ-45 Female Performance Audio Specifications: 5.1 Surround Sound Maximum Cable Length: 0.1 m [0.2 ft] Max Distance: 70 m / 230 ft Maximum Digital Resolutions: 1080p / 1920x 1080 Wide Screen Supported: Yes Physical Characteristics

Colour: Black Enclosure Type: Aluminum Product Length: 80 mm [3.1 in] Product

Width: 67 mm [2.6 in] Product

Height: 25 mm [1 in] Product Weight: 310 g [10.9 oz] Power Center Tip Polarity: Positive Plug Type: M Power Adapter Included: Yes Input Voltage: 110 ~ 240 AC Input Current: 0.5A Output Voltage :12 DC Output Current: 1.5A














...

This 3ft panel mount HDMI cable features a HDMI male connector on one end, & a HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate. ...

Protect your HDMI Video card & monitor ports from wear & tear. The HDMIEXTAA6IN HDMI Port Saver Cable is a 6-inch HDMI cable designed to prevent wear & tear on the HDMI port on your computer or A/V device (Blu-ray player, A/V receiver etc.). The port saver cable features 1 HDMI (male) connector & 1 HDMI (female) connector, which extends the HDMI (female) port from a video card or A/V device away from the device itself, relieving the stress of repeated HDMI plug insertions & removals & transferring the weight of typical HDMI cable connection away from the device port. ...

The ST12MHDDCRP HDMI to CAT5 Repeater works with the ST12MHDDC HDMI Extender Kit to add additional displays & extend the HDMI over Cat 5/6 signal. With 2 RJ45 outputs per unit, each repeater means that you can add a display, & also daisy-chain the signal to 2 additional ST12MHDDCRP repeaters (sold separately) at up to 330 feet (100 meters) at each level. Additional repeaters can be added at any time, up to a maximum of 30 broadcasting levels to over 100 displays, allowing for a highly scalable installation that can be used with existing network cable for a cost-effective & flexible extension. Each repeater

Includes:: mounting hardware for a clean & professional installation. Plus, because the HDMI signal is extended over standard Cat 5/ Cat 6 Ethernet cable with RJ45 connectors, proprietary cables aren’t necessary which eliminates both expense & the hassle of running specialized cable. Ideal for High-Definition applications, the HDMI over UTP extender supports 1080p video resolutions, 7.1 digital audio & features built-in EDID monitor emulation, which ensures native resolution & maximum compatibility with your display or projector, for a convenient plug-&-play installation.

...

At last! A single-cable solution for your A/V set up! Save on cable costs & bring order to that maze of A/V cabling, with Star Tech.coms HDMIDVIMM10 Digital Video Cable. This new standard in digital A/V connections combines high bandwidth video & multi-channel digital audio in a single cable, for crystal clear resolution & superior sound. The HDMIDVIMM6 connects easily to your LCD TV, LCD Projector, Plasma TV, HDTV & DVD Player & set-top box. ...

Connect DVI capable devices to HDMI®-enabled devices & vice versa Eliminates the need for multiple cables & reduces clutter Guaranteed reliability The HDMIDVIMF HDMI® to DVI Cable Adapter features one HDMI male connector & one DVI-D female connector, which enables a bi-directional connection between HDMI-capable devices & DVI-D capable devices to overcome compatibility issues. Designed & constructed to provide a dependable HDMI to DVI connection, this high quality cable is backed by Star Tech.com''s Lifetime Warranty. What’s in the box HDMI® to DVI-D Video Cable Adapter
- M/F ITEM 2 ITEM 3 ITEM 4 ITEM 5
...
