Extend an HDMI® video & audio over standard CAT5 cabling, with support for RS232 Serial & Infrared control
Integrated bi-directional RS232 & IR interfaces enable you to communicate with, monitor & control your source audio-video device, from either end of the connection
Support for full 1080p resolution with accompanying digital audio, which lets you display your content the way it's meant to be seen & heard
BENEFITS 3
The ST121UTPHD2 HDMI® over Cat 5 Extender Kit can extend the audio & video signal output from an HDMI®-equipped device by up to 330 feet (100 Meters), over a single CAT5 cable, or up to 165 Feet (50 Meters) over a single CAT6 cable. The extender supports full High-Definition video (1080p) & HD 3D, & also extends the accompanying digital audio signal.
For convenient, time-saving control of the media source, the CAT5 HDMI extender offers bi-directional RS232 serial & Infrared (IR) interfaces, which enable you to control the HDMI audio-video source from either end of the connection.
The HDMI over CAT5 Extender Kit
Includes:: both the HDMI® to CAT5 transmitter & the Cat 5 to HDMI receiver needed for a cost-effective, ready-to-use digital signage solution.
To help ensure seamless performance without any unexpected or unnecessary interruptions, the HDMI Ethernet transmitter & receiver units are fully compliant with High Speed HDMI® & HDCP standards, & each unit features lockable power connectors to prevent accidental disconnections.
The ST121UTPHD2 HDMI over Cat 5 Extender Kit is backed by a Star Tech.com 2-year warranty & free lifetime technical support.
WhatÂ’s in the box

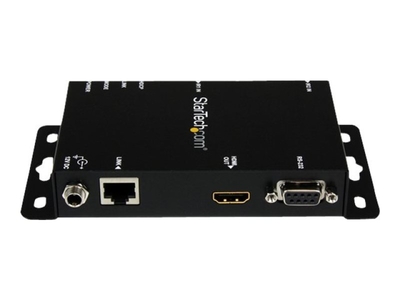

Local HDMI® Extender Unit
Remote HDMI® Receiver Unit
IR Receiver Cable
IR Transmitter Cable
HDMI Cable
- 4 ft (1.2 Meters)
Universal Power Adapter NA / UK / EU
User Manual
