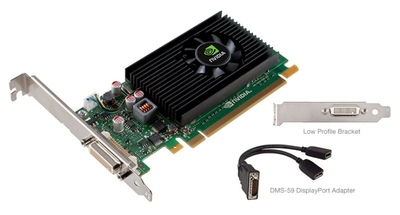

PNY NVS 315 1GB 64bit GDDR3 DMS59 Giving 2 X DisplayPort PCI-E
Graphics Card

NVIDIA NVS 315 - The New Standard for Dual-Display Commercial Graphics The NVS 315 delivers incredible flexibility, scalability, and compatibility that lets you get the most from your existing display infrastructure. This version of the NVS 315 is ideal for DisplayPort users, or new installations where DisplayPort monitors are required. NVIDIA nView and Mosaic work with the NVS 315 to provide a whole new way to maximize your productivity. Easily manage many windows across multiple high-resolution displays and virtual desktops with a panoramic overview of your entire workspace. Best of all, the NVS 315 is designed with simplified IT management in mind, including advanced tools that make integrating and maintaining a large-scale PC deployment fast and easy. CUDA Cores - 48 GPU Memory -
1 GB DDR3 Memory Interface - 64-bit Memory Bandwidth - 14 GB/s System Interface - PCI Express Gen 2 x16 Display Connectors - DMS-59 to dual DisplayPort Adapter Maximum Resolution - 2560 x 1600 at 60Hz Number of Displays Supported - 2 nView - Yes NVIDIA Mosaic - Yes Thermal Solution - Ultra-quiet Fansink Form Factor - SFF, 2.731” H x 5.70” L PNY Part Number - VCNVS315DP-PB PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, driver CD and documentation to ensure a quick and successful install. Minimum
System Requirements Windows 8, 7, Vista, SP SP3, Linux, or Solaris Available PCIe x16 expansion slot 2GB or more of system memory, 4GB recommended 200MB of available disc space for full software installation Blu-ray or DVD-ROM (or Internet access) DisplayPort compatible display(s) NVIDIA NVS 315 Architecture Integrated DisplayPort, VGA, DVI and HDMI support PCI Express 2.0 support 12 pixels per clock rendering engine NVIDIA CUDA™ technology capable Scalable geometry architecture Hardware tessellation engine NVIDIA GigaThread™engine Shader Model 5.0 (OpenGL 4.3 and DirectX 11 Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later) Blu-ray dual-stream hardware acceleration
(supporting HD picture-in-picture playback) Compliant with professional OpenGL and DirectX applications Advanced Display Features Supports versatile DMS-59 Connector Drives two DVI-I SL, VGA or DisplayPort monitors via supported DMS-59 based break out cable adaptor DisplayPort outputs drive two digital displays at resolutions up to 2560 x 1600 at 60Hz DVI-I SL outputs drive two digital displays at resolutions up to 1920x1200 at 60Hz Internal 400 MHz DAC drives two VGA displays at resolutions up to 2048 x 1536 at 85Hz DisplayPort 1.2, HDMI 1.4 and HDCP support HDMI support using optional DP-HDMI or DVI-HDMI dongles Support for integrated audio via Display Port and HDMI Support for multiple display modes including DualView, Span and Clone modes DisplayPort and HDMI Digital Audio Supports
Dolby Digital (AC3), DTS 5.1, Dual Channel and Multichannel (7.1? LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz Word sizes of 16-bit, 20-bit, and 24-bit NVIDIA nView Desktop Management Software Boosts productivity by delivering maximum flexibility for single and multi-display set-ups, and provides unprecedented end-user control of the desktop experience. Seamless integration within the Windows environment Easy to use Setup Wizard Extended Windows Taskbar to spread the application buttons across displays Get virtual sub-displays with Gridlines to make best use of large display setups Create Virtual Desktops to maximize work area and reduce application clutter Complete set of Hot Keys User Profiles for
easier system deployments NVIDIA Mosaic Technology Enhance your workspace over multiple displays (up to 8 displays when used with multiple NVS 315 Graphics Cards) Enables seamless taskbar spanning as well as transparent scaling of any application over multiple displays NVIDIA Mosaic Technology Monitor, access and configure graphics and display information of remote machines using industry standard WMI Interface Scriptable using WMI Command Line interface for integration with System level Management tools Scalable Enterprise-Class tools to remotely install and configure graphics drivers across your entire organization
