Built for Professionals, & certified on leading CAD & DCC applications, NVIDIA Quadro 600 by PNY delivers the good performance per watt in its class, maximizing productivity while conserving energy. Designed for both small form factor & full height workstations, the NVIDIA Quadro 600 by PNY delivers advanced capabilities, allowing you to design, iterate & deliver higher quality results in less time. ...

PNY NVIDIA Quadro K2200 4GB GDDR5 Dual DVI Display Port PCI-E Graphics card The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, & a flexible single-slot form factor makes it compatible with even the most space & power-constrained chassis. Plus, an all-new display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions up to 3840 x 2160 at 60 Hz with 30-bit color. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. CUDA Cores 640 GPU Memory 4GB GDDR5 Memory Interface 128-bit Memory Bandwidth 80GB/s System Interface PCI Express 2.0 x 16 Maximum Power Consumption 68 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.376” H x 7.97” L, Single Slot Display Connectors DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapters VGA Support Via included adapter Number of Displays Supported 4 (DP 1.2 Multi-Streaming) Maximum DP 1.2 Resolution 3840 x 2160 at 60 Hz (direct connect) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes (via USB (Universal Serial Bus) connection to 3D Vision hub) Warranty 3 Years Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

PNY NVIDIA Quadro K4200 4GB GDDR5 Dual DVI Display Port PCI-E Graphics card The NVIDIA Quadro K4200 delivers incredible 3D application performance & capability, allowing you to take advantage of dual copy-engines for seamless data movement within GPU memory—all in a flexible, single-slot form factor. 4GB of GDDR5 GPU memory with ultra-fast bandwidth is ideal for creating & rendering large, complex models. An all-new display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K4200 is also fully compatible with NVIDIA Quadro Sync, which means that you can frame-lock multiple displays together, & also supports NVIDIA’s SDI input & output boards for broadcast or digital cinema production workflows. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. CUDA Cores 1344 GPU Memory 4GB GDDR5 Memory Interface 256-bit Memory Bandwidth 173GB/s System Interface PCI Express 2.0 x 16 Maximum Power Consumption 105 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.376” H x 9.50” L, Single Slot Display Connectors DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapter VGA Support Via included adapter Number of Displays Supported 4 (DP 1.2 Multi-Streaming) Maximum DP 1.2 Resolution 3840 x 2160 at 60 Hz (direct connect) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz Maximum VGA Resolution 2048 x 1536 at 85 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes HD SDI Capture/ Output Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years PNY Part Number VCQK4200-PB Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

PNY NVIDIA Quadro K5200 8GB GDDR5 Dual DVI Display Port PCI-E Graphics card The NVIDIA Quadro K5200 gives you amazing application performance & capability, making it faster & easier to accelerate 3D models, render complex scenes, & simulate large datasets. 8GB of GDDR5 GPU memory with ultra-fast bandwidth means that you can create & render large, complex models & compute massive datasets. Plus, there’s the all-new display engine that drives up to four displays natively with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K5200 is also fully compatible with NVIDIA Quadro Sync, which means that you can frame-lock multiple displays together, & also supports NVIDIA’s SDI input & output boards for broadcast or digital cinema production workflows. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization & simulation, or spectacular visual storytelling—and get results to market faster. CUDA Cores 2304 GPU Memory 8GB GDDR5 Memory Interface 256-bit Memory Bandwidth 192GB/s System Interface PCI Express 3.0 x 16 Maximum Power Consumption 150 W Energy Star Enabling Yes Thermal Solution Ultra-quiet active fansink Form Factor 4.376” H x 10.50” L, Dual Slot Display Connectors DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 Display Port 1.2 Yes Display Port with Audio Yes DVI-D Single-Link Connector Via included adapters VGA Support Via included adapter Number of Displays Supported 4 Maximum DP 1.2 Resolution 4096 x 2160 at 60 Hz (directly attached) Maximum DVI-I DL Resolution 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution 1920 x 1200 at 60 Hz HDCP Support Yes Professional 3D Support Yes, via included stereo connector bracket Quadro Sync Compatible Yes HD SDI Capture/ Output Compatible Yes NVIDIA GPU Direct Compatible Yes Graphics APIs Shader Model 5.0, Open GL 4.4, Direct X 11 Compute APIs CUDA, Direct Compute, Open CL NVIEW Yes NVIDIA Mosaic Yes (Windows 8.1, 8, 7, & Linux) NVIDIA 3D Vision & 3D Vision Pro Yes Warranty 3 Years Minimum System Requirements Microsoft Windows 8.1, 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Display Port, DVI, or VGA compatible display (s) ...

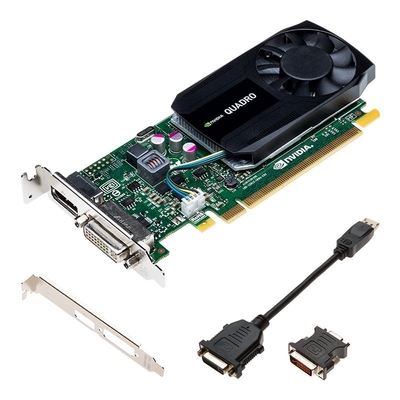

NVIDIA Quadro K600 – NVIDIA Kepler™ Architecture Performance & Features in an Affordable Low-Profile Professional Graphics Solution The NVIDIA Quadro K600 graphics board offers great performance & outstanding features at an affordable price for a wide range of leading professional applications. You get 1GB of on-board DDR3 GPU memory, 192 SMX CUDA parallel processing cores, & full Shader Model 5 compatibility; all in a low-profile form factor for maximum system flexibility. Designed & built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries including manufacturing, media & entertainment, sciences, & energy. Professionals trust them to realize their most ambitions visions – whether it’s product design, visualization & simulation, or spectacular visual storytelling – & get results to market faster, more profitably, & with superior visual quality. Specifications GPU Memory
- 1GB DDR3 Memory Interface
- 128-bit Memory Bandwidth
- 29.0GB/s CUDA Cores
- 192 System Interface
- PCI Express 2.0 x 16 Maximum Power Consumption
- 41W Energy Star Enabling
- Yes Thermal Solution
- Ultra-quiet active fansink Form Factor
- 2.713” H x 6.30” L, Single Slot, Low Profile Display Connectors
- DVI-I DL + DP 1.2 Display Port 1.2
- Yes Display Port with Audio
- Yes DVI-D Single-Link Connector
- Via included adapter VGA Support
- Via included adapter Number of Displays Supported
- 2 Maximum DP 1.2 Resolution
- 3840 x 2160 at 60 Hz Maximum DVI-I DL Resolution
- 2560 x 1600 at 60 Hz Maximum DVI-I SL Resolution
- 1920 x 1200 at 60 Hz Maximum VGA Resolution
- 2048 x 1536 at 85 Hz HDCP Support
- Yes Graphics APIs
- Shader Model 5.0, Open GL 4.3, Direct X 11 Compute APIs
- CUDA, Direct Compute, Open CL NVIEW
- Yes Mosaic Mode
- Yes (Windows 7 & Linux) NVIDIA 3D Vision & 3D Vision Pro
- Yes, via USB (Universal Serial Bus) Port Minimum System Requirements Windows 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Display Port, DVI, or VGA compatible display (s) 3D Graphics Architecture Scalable geometry architecture Hardware tessellation engine FXAA/TXAA dedicated anti-aliasing engine Bindless textures Shader Model 5.0 (Open GL 4.3 & Direct X 11) Up to 16K x 16K texture & render processing Transparent multisampling & super sampling 16x angle independent anisotropic filtering 32-bit per component floating point texture filtering & blending Up to 64x full scene antialiasing Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, Div X (version 3.11 & later), & Flash (10.1 & later) Dedicated H.264 encoder Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) NVIDIA CUDA Parallel Processing Architecture SMX architecture (streaming multi-processor design that delivers greater processing & efficiency) API support including: CUDA C, CUDA C++, Direct Compute 5.0, Open CL, Java, Python, & Fortran NVIDIA Parallel Data Cache hierarchy (configurable L1 & unified L2 caches) Advanced Display Features Simultaneously run two directly connected displays, each with full display capabilities Support up to two displays with Display Port 1.2 Multi-Stream technology Display Port 1.2 output

Includes:: Multi-Stream & HBR2 support, capable of supporting resolutions up to 3840 x 2160 at 60 Hz DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz or 1920 x 1200 at 120 Hz) Internal 400 M Hz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz) Display Port to VGA, Display Port to DVI (single-link) & Display Port to HDMI cables available Display Port, DVI, & HDMI support HDCP 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications & connections) NVIDIA 3D Vision™ technology, 3D DLP, interleaved, & other 3D stereo format support Full Open GL quad buffered stereo support Underscan/overscan compensation & hardware scaling NVIDIA NVIEW multi-display technology NVIDIA Mosaic technology Display Port & HDMI Digital Audio Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), & MPEG-2/MPEG-4 AAC Data rates of 44.1 K Hz, 48 K Hz, 88.2 K Hz, 96 K Hz, 176 K Hz, & 192 K Hz Word sizes of 16-bit, 20-bit, & 24-bit


























...

Pny Nvidia Tesla K40 12gb Ddr 5 Active Workstation Pci-e Professional Graphics Card Summary Solve your most demanding High-Performance Computing (HPC) challenges with NVIDIA Tesla family of GPUs. Theyre built on the NVIDIA Kepler compute architecture & powered by NVIDIA CUDA, the worlds most pervasive parallel computing model. This makes them ideal for delivering record acceleration & more efficient compute performance for big data applications in fields, including seismic processing; computational biology & chemistry; weather & climate modeling; image, video & signal processing; computational finance, computational physics; CAE & CFD; & data analytics. Equipped with 12 GB of memory, the Tesla K40 GPU accelerator is ideal for the most demanding HPC & big data problem sets. It outperforms CPUs by up to 10x &

Includes:: a Tesla GPU Boost feature that enables power headroom to be converted into user controlled performance boost. Specifications Chipset NVIDIA Tesla Chip Clock Base 745 MHz
- Boost Memory 12288 MB GDDR5 Memory Bandwidth 288 GB/sec Interfaces/ Ports Video Card Bus Type PCI Express 3.0 x 16 Form Factor Graphics Card Features SMX (streaming multiprocessor) Dynamic Parallelism ECC Memory Error Protection L1 & L2 Caches Tesla GPU Boost


...

NVIDIA NVS 300 x 1 for Display Port – The Standard for Multi-Display Business Graphics The NVIDIA NVS 300 by PNY for x 1 PCIe high resolution, multi-display business graphics solution, designed for small & standard form factor systems, delivers reliable hardware & software for a stable business environment. Tested on leading business applications, this configuration of the NVIDIA NVS 300

Includes:: a DMS-59 to dual Display Port adapter capable of driving two Display Port compatible displays up to resolutions of 2560 x 1600 at 60 Hz. With NVIDIA Mosaic Mode & NVIEW technologies built in, you can span & efficiently manage your entire Windows desktop across multiple displays. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) & increase reliability.

Specification
- Memory
- 512MB DDR3 Memory Interface
- 64-bit Memory Bandwidth
- 12.6 GB/s CUDA Paralell Processing Cores
- 16 Maximum Power Consumption
- 17.5W Thermal Solution
- Passive Energy Star Compliant
- Yes Physical

Dimensions
- SFF 2.731" H x 5.70" L Display Connectors
- DMS-59 to DP + DP Number of Displays Supported
- 2 Display Port with Audio
- Yes PCIe High Definition Audio Support
- Yes Maximum Digital Resolution
- 2560 x 1600 at 60 Hz HDCP Support
- Yes Graphics APIs
- Open GL 3.3, Direct X 10.1, Shader Model 4.1 Compute APIs
- CUDA, Direct Compute & Open CL NVIEW Enabled
- Yes Mosiac Mode Enabled
- Yes NVIDIA NVS 300 Architecture
- 128-bit color precision 12 pixels per clock rendering engine 3D volumetric texture support 3rd generation occlusion culling 16 textures per pixel in fragment programs 32x FSAA (Full-Scene Antialiasing) Rotated Grid FSAA Window ID clipping functionality Compliant with professional Open GL & Direct X applications Shading Architecture
- Full Shader Model 4.1 (Open GL 3.3, Direct X 10.1 class) Long fragment programs (unlimited instructions) Long vertex programs (unlimited instructions) Looping & subroutines (up to 256 loops per vertex program) Dynamic flow control Conditional execution Display Port Audio
- Dolby Digital (AC3) DTS 5.1 Dual Channel & Multi-channel (7.1 LPCM) Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, & 192 K Hz 16-bit, 20-bit & 24-bit word sizes Minimum System Requirements
- Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x 1 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive Display Port compatible display (s)




























...

NVIDIA NVS 300 x 16 for Display Port – The Standard for Multi-Display Business Graphics The NVIDIA NVS 300 by PNY for x 16 PCIe high resolution, multi-display business graphics solution, designed for small & standard form factor systems, delivers reliable hardware & software for a stable business environment. Tested on leading business applications, this configuration of the NVIDIA NVS 300

Includes:: a DMS-59 to dual Display Port adapter capable of driving two Display Port compatible displays up to resolutions of 2560 x 1600 at 60 Hz. With NVIDIA Mosaic Mode & NVIEW technologies built in, you can span & efficiently manage your entire Windows desktop across multiple displays. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) & increase reliability.

Specification
- Memory
- 512MB DDR3 Memory Interface
- 64-bit Memory Bandwidth
- 12.6 GB/s CUDA Paralell Processing Cores
- 16 Maximum Power Consumption
- 17.5W Thermal Solution
- Passive Energy Star Compliant
- Yes Physical

Dimensions
- SFF 2.731" H x 5.70" L Display Connectors
- DMS-59 to DP + DP Number of Displays Supported
- 2 Display Port with Audio
- Yes PCIe High Definition Audio Support
- Yes Maximum Digital Resolution
- 2560 x 1600 at 60 Hz HDCP Support
- Yes Graphics APIs
- Open GL 3.3, Direct X 10.1, Shader Model 4.1 Compute APIs
- CUDA, Direct Compute & Open CL NVIEW Enabled
- Yes Mosiac Mode Enabled
- Yes NVIDIA NVS 300 Architecture
- 128-bit color precision 12 pixels per clock rendering engine 3D volumetric texture support 3rd generation occlusion culling 16 textures per pixel in fragment programs 32x FSAA (Full-Scene Antialiasing) Rotated Grid FSAA Window ID clipping functionality Compliant with professional Open GL & Direct X applications Shading Architecture
- Full Shader Model 4.1 (Open GL 3.3, Direct X 10.1 class) Long fragment programs (unlimited instructions) Long vertex programs (unlimited instructions) Looping & subroutines (up to 256 loops per vertex program) Dynamic flow control Conditional execution Display Port Audio
- Dolby Digital (AC3) DTS 5.1 Dual Channel & Multi-channel (7.1 LPCM) Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, & 192 K Hz 16-bit, 20-bit & 24-bit word sizes Minimum System Requirements
- Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive Display Port compatible display (s)




























...

NVIDIA NVS 315
- The New Standard for Dual-Display Commercial Graphics The NVS 315 delivers incredible flexibility, scalability,
...

CUDA Cores
- 192 GPU Memory
- 2GB DDR3 Memory Interface
- 128-bit Memory Bandwidth
- 28.5GB/s System Interface
- PCI




...
