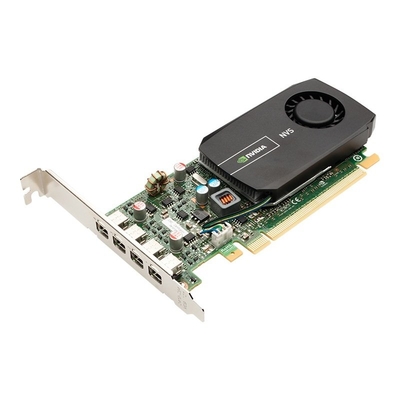

PNY NVS 510 2GB DDR3 Quad DVI DisplayPort PCI-E Graphics Card

Product Description

PNY NVIDIA NVS 510 2GB DDR3 Quad DVi Display Port PCI-E Graphics Card CUDA Cores
- 192 GPU Memory
- 2GB DDR3 Memory Interface
- 128-bit Memory Bandwidth
- 28.5GB/s System Interface
- PCI Express 2.0 x 16 Maximum Power Consumption
- 33.4W Energy Star Enabling
- Yes Thermal Solution
- Ultra-quiet active fansink Form Factor
- 2.713" H x 6.30" L, Single Slot Display Connectors
- 4 mini-Display Port Display Port 1.2
- Yes Display Port with Audio
- Yes Mini-DP to DP adapters
- 4 included Mini-DP to DVI-D SL adapters
- 4 included Maximum DP 1.2 Resolution
- 3840 x 2160 at 60 Hz Maximum DVI-D SL Resolution
- 1, 920 x 1, 200 at 60 Hz HDCP Support
- Yes Graphics APIs
- Shader Model 5.0, Open GL 4.3, Direct X 11 Compute APIs
- CUDA, Direct Compute, Open CL NVIEW Enabled
- Yes Mosaic Mode
- Yes (Windows 8, 7, & Linux) PNY Part Number
- VCNVS510DVI-PB Minimum System Requirements Windows 8, 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive & Display Port or DVI compatible displays NVIDIA Quadro NVS 510 Architecture Integrated Display Port 1.2 PCI Express 3.0 support 12 pixels per clock rendering engine NVIDIA CUDA technology capable Scalable geometry architecture Hardware tessellation engine NVIDIA Giga Thread engine Shader Model 5.0 (Open GL 4.3 & Direct X 11) Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, Div X (version 3.11 & later), & Flash (10.1 & later) Blu-ray dual-stream hardware acceleration, with HD PIP playback Dedicated H.264 Encoder Advanced Display Features Support for any combination of four connected displays Display Port outputs natively drive up to four digital displays at resolutions up to 3, 840 x 2, 160 at 60 Hz Connect to various monitor types using multiple mini-Display Port based cable adapters or widely available standard Display Port cable adapters (when used with the included latched mini-Display Port to Display Port cables) Display Port to DVI-D SL to drive DVI displays up to 1, 920 x 1, 200 at 60 Hz Display Port to DVI-D DL to drive DVI displays up to 2, 560 x 1, 600 at 60 Hz Display Port to HDMI cables to drive HD displays up to 1, 920 x 1, 080 at 60 Hz Display Port to VGA cables to drive analog displays up to 1, 920 x 1, 200 at 60 Hz Display Port 1, 2, HDMI 1.4a, & HDCP support Display Port 1.2 Multi-Stream Technology simplifies cable management & support up to 4 displays at 1, 920 x 1, 200 at 60 Hz Drive up to 16 displays (4 groups of cloned images via each Display Port connector) using supported Display Port 1.2 Stream Cloning technology Support for integrated audio via Display Port & HDMI Support for multiple display modes including Dual View, Span, & Clone modes Display Port & HDMI Digital Audio Support for the following audio modes:
- Dolby Digital (AC3), DTS 5.1, Dual Channel & Multichannel (7.1) LPCM
- Dolby Digital Plus Dolby Digital Plus & MPEG-2 or MPEG-4 AAC Data rates of 44.1k Hz, 49k Hz, 96k Hz, 176k Hz, & 192k Hz Word sized of 16-, 20-, & 24-bit NVIDIA n View Desktop Management Software Boosts productivity by delivering maximum flexibility for single & multi-display set-ups, & provides unprecedented end-user control of the desktop experience. Seamless integration within the Windows environment Easy to use Setup Wizard Extended Windows Taskbar to spread the application buttons across displays Get virtual sub-displays with Gridlines to make best use of large display setups Create Virtual Desktops to maximize work area & reduce application clutter Complete set of Hot Keys User Profiles for easier system deployments NVIDIA Mosaic Technology Enhance your workspace over multiple displays (up to 8 displays when used with multiple NVS 510 Graphics Cards) Enables seamless taskbar spanning as well as transparent scaling of any application over multiple displays NVIDIA Enterprise Management Tools Monitor, access & configure graphics & display information of remote machines using industry standard WMI Interface Scriptable using WMI Command Line interface for integration with System level Management tools Scalable Enterprise-Class tools to remotely install & configure graphics drivers across your entire organization NVIDIA CUDA Parallel Processing Architecture Monitor, access & configure graphics & display information of remote machines using industry standard WMI Interface Scriptable using WMI Command Line interface for integration with System level Management tools Scalable Enterprise-Class tools to remotely install & configure graphics drivers across your entire organization Unified Driver Architecture Supports NVS 510, NVS 310, NVS 300, NVS 450, NVS 420, NVS 295, NVS 290 Support for the latest applications on previous- & current-generation hardware Continuous performance tuning Microsoft Windows Hardware Qualification Lab (WHQL)-certified for Windows 8, Windows 7, Windows Vista, & Windows XP
