The Matrox Dual Head 2 Go Digital SE external multi-display adapter adds up to two monitors to your laptop or desktop computer. It connects to the video output of your system & uses the system's existing GPU to provide high-quality, uncompressed graphics & video across all monitors. Ideal for business & professional users looking to increase their productivity with a dual display setup, this little black box lets you run different applications on each monitor or view one application across two monitors. Lets you connect up to two monitors to the single Display Port video output of your system Creates a stretched desktop of 3840x 1200 (2x 1920x 1200)1 across two displays Uses your system's existing GPU to deliver a solid platform for office, 3D design, & multimedia applications Open an application on each display or span one across the two HDCP compliance for protected content playback Works with displays & projectors Quick & easy to install—there's no need to open the computer case or insert components Spans taskbar across monitors for easy access to all your open applications Runs in clone mode & shows the same content on all displays

Includes:: Matrox Power Desk software to easily manage your desktop configuration External device that won't void your system warranty Expand your desktop further by connecting a second Dual Head 2 Go Digital SE to your graphics hardware to support up to four monitors at a time 2 Matrox part number
- D2G-DP2D-IF Maximum DVI Resolution 1 3840x 1200 (2x 1920x 1200) Input connector 1 x Display Port input Output connectors 2 x DVI-D outputs Power USB (Universal Serial Bus) for power

Dimensions 3.8” x 2.5” x 1.1 Clone Mode Yes Stretched Desktop Support Yes Power Desk Software Yes Hardware included One 3-foot USB (Universal Serial Bus) cable One Display Port to Display Port input cable “ Getting Started” CD Multi-unit support Yes – Available under Windows only System Requirements Single Display Port video output on a compatible system Powered USB (Universal Serial Bus) connector Display driver supporting 2048x 768 or higher resolution Verify your system compatibility Supported Operating Systems Microsoft Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Windows XP (32/64bit), Windows Server 2012 (32/64bit), Windows Server 2003/2008 (32/64bit) & Linux 2 Optional Accessories (Sold Separately) Power Supply Kit (Part GXM-PSKIT-IF)




...

Matrox Dual Head 2 Go is an external multi-monitor upgrade for notebooks & desktop computers. Ideal for business & professional users looking to increase their productivity with a dual monitor setup, this small box lets you run different applications on each monitor or view one application across two monitors. Dual Head 2 Go is available in analog & digital editions. ...

Matrox Triple Head 2 Go DP Edition is an external multi-monitor upgrade for laptops, desktop computers & professional workstations. This small black box is ideal for corporate & graphics professionals that require extensive desktop space to take full advantage of cutting edge applications, business users looking for maximum productivity increases through a multi-monitor setup, & gamers that want to experience totally immersive gaming. Triple Head 2 Go DP Edition offers native support for Display Port equipment, providing a pure digital signal from system to monitors that delivers high performance in a small & energy-efficient package. Whether on a PC or Mac, Triple Head 2 Go connects to the systems monitor output, & offers two or three monitor modes and/or widescreen options, supporting resolutions of up to 3840x 1200 (dual 1920x 1200) or 5040x 1050 (triple 1680x 1050). ...

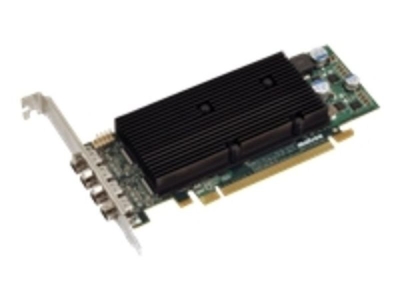

The Matrox M9120 Plus LP x 1 low-profile, quad-upgradeable, dual monitor graphics card renders pristine images on either two displays (natively), or four displays (via an aftermarket upgrade cable) at resolutions up to 1920x 1200 (digital), or 2048x 1536 (analog). Armed with 512MB of graphics memory & advanced desktop management, the M9120 Plus drives business, government, & industrial applications with extraordinary performance on in both independent & stretched desktop modes. Its low-profile form factor makes it easy to integrate into a wide variety of systems, it offers optimal Windows Vista Aero support (WDDM mode), & it can be paired with another Matrox graphics card if additional outputs are required. The M9120 Plus card builds upon the reliability & stability of previous Matrox products & retains core Matrox benefits such as long life-cycles, top-to-bottom manufacturing, & unified display driver models for easy deployment across multiple systems. ...

The Matrox M9140 LP PCIe x 16 quad head graphics card renders pristine images across four monitors at resolutions up to 1920x 1200 per output (digital or analog) for an exceptional multi-display user experience. With 512 MB of memory & advanced desktop management features such extending the Windows Taskbar to span multiple displays & support of independent or stretched modes, the M9140 drives business, industrial, & government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems, it offers optimal Windows Vista Aero support (WDDM mode), & it can be paired with another M9140 graphics card to support up to eight displays from a single system. The M9140 graphics card builds upon the reliability & stability of previous Matrox products, & retains core Matrox benefits such as long life-cycles, top-to-bottom manufacturing & unified display driver models for easy deployment across multiple systems. ...

PRODUCT
Features: Matrox Dual Head to use 2 monitors at a time (in "independent" or "stretched" mode)PCI
...

Reliable, ultra-low power graphics solution with wide enterprise flexibility The Matrox P690 PCIe x 16 offers 128MB of graphics memory & full Dual Head support for using two digital or analog monitors at high resolution & pristine image quality. With ultra-low power consumption, fanless cooling & unified display drivers for easy deployment across multiple systems, the P690 PCIe x 16 is suitable for a wide range of professional applications. This graphics card builds upon the reliability, stability, & features of the proven P-Series product line, making it an ideal choice for use in long-life environments. Matrox Dual Head technology with support for two digital or analog monitors at a time Independent resolutions & stretched desktop both supported Native PCI Express x 16 support Passive cooling (heat sink with no fan) for silent operation & extra reliability Ultra low power consumption: 10 watts Unified driver package also compatible with other products in P-Series, G-Series, QID Series, MMS Series, Parhelia Series, & Extio Series Display drivers for Windows XP & XP x 64, Windows 2000, Windows Vista (XDDM) & Vista x 64 (XDDM), Windows Server 2003 & Server 2003 x 64* Easy-to-use Matrox Power Desk desktop management software Support for customizable unattended installation of drivers for multi-system set-up Compatible with Matrox Power Space for augmented multi-display desktop functionality including multiple workspace configuration support, program autostart, desktop recall, RDP recognition support, & multi-system workspace import/export Joined graphics card mode enables an additional Matrox Dual Head& Dagger; or Triple Head± graphics card to work in tandem in one system to drive up to four displays using advanced multi-card features† Widescreen resolution support & additional functionality via Matrox Power Res Display pivoting (rotation) support Global sales & technical support Ro HS & WEEE compliant 3-year warranty * Drivers for Windows Server 2003, Windows XP x 64 (64-bit) & Windows Vista XDDM available online. For other possible operating systems, contact Matrox. With Joined graphics card mode, some Dual Head graphics cards can be joined with a second compliant Dual Head or Triple Head graphics card to drive up to four displays. In Joined graphics card mode, compliant Triple Head graphics cards are supported in Dual Head mode only. Joined graphics card mode multi-display configurations can be obtained by downloading the Matrox Power Desk-SE version 2.04 display driver & above. Hardware included Matrox P690 PCIe x 16 graphics card Two DVI-I-to-HD15 connector adapters Software included Matrox display drivers for Microsoft Windows XP & Windows 2000* Matrox Power Desk desktop management software Part Number
- P69-MDDE128F Card type
- PCIe x 16 (PCI Express x 16) Graphics Memory
- 128 MB DDR2 Bracket connectors
- DVI x 2 Card form factor
- ATX Bracket form factor
- ATX EMC certifications
- Class B – ACA, CE, CSA, FCC, VCCI Card size
- 6.6" x 4.38" / 16.76 x 11.13 cm (Card size = length, not including bracket & bracket connectors x height, including slot connector. Card width is within specifications for a single card of the given type.) Maximum resolutions (per display) Digital, 1-2 monitors: 1920 x 1200 Analog, 1-2 monitor: 2048 x 1536







...

This graphics card brings the reliability, stability, & features of the proven Millennium G550 product line to a wider variety of PCI Express systems. The x 1 design of the card makes it compatible with all compliant PCI Express slots & the low-profile design allows the card to fit in small-form-factor computers. In addition to having Matrox display drivers for Windows, the Millennium G550 LP PCIe is the world's first low-profile PCI Express graphics card with open-source display drivers for Linux & other Unix-like operating systems. With support for using 2 monitors at a time & reliable passive cooling (a heat sink with no fan), this product is ideal for a variety of mission-critical professional applications, including computer-aided dispatch, security monitoring, & process control. By helping to manage large amounts of information, Matrox multi-display technology can improve productivity & reduce errors. ...

The low-profile Matrox Millennium P690 LP PCIe x 16 128MB offers Dual Head support for two digital or analog monitors at high resolution & pristine image quality. Designed with native PCI Express x 16 support, it can accommodate both ATX & low-profile systems, making it ideal for small form factor PCs & docking stations. The P690 LP PCIe x 16 builds upon the reliability, stability, & features of the proven Millennium P-Series product line, & is suitable for a wide range of professional applications. Ultra-low power consumption, fanless cooling, & unified display drivers make it easy to deploy across multiple systems in long-life environments. ...

Matrox P690 256 MB DDR2 DVI PCI-E Low Profile Graphics Card Reliable, ultra-low power graphics solution with wide enterprise flexibility The Matrox P690 Plus LP PCIe x 16 offers 256MB of graphics memory & full Dual Head support for using two digital or analog monitors at high resolution & pristine image quality, & can be upgraded (via a Quad-HD15 cable). With ultra-low power consumption, fanless cooling & unified display drivers for easy deployment across multiple systems, the P690 Plus LP PCIe x 16 is suitable for a wide range of professional applications. This graphics card builds upon the reliability, stability, & features of the proven P-Series product line, making it an ideal choice for use in long-life environments. Matrox Dual Head technology with support for two digital or analog monitors at a time Independent resolutions & stretched desktop both supported Native PCI Express x 16 support Passive cooling (heat sink with no fan) for silent operation & extra reliability Aftermarket upgrade to quad analog display Upgrade to quad head output via cable (CAB-L60-4XAF) Ultra low power consumption: 10.7 watts Unified driver package also compatible with other products in P-Series, G-Series, QID Series, MMS Series, Parhelia Series, & Extio Series Display drivers for Windows XP & XP x 64, Windows 2000, Windows Vista (XDDM) & Vista x 64 (XDDM), Windows Server 2003 & Server 2003 x 64* Easy-to-use Matrox Power Desk desktop management software Support for customizable unattended installation of drivers for multi-system set-up Compatible with Matrox Power Space for augmented multi-display desktop functionality including multiple workspace configuration support, program autostart, desktop recall, RDP recognition support, & multi-system workspace import/export Joined graphics card mode enables an additional Matrox Dual Head& Dagger; or Triple Head± graphics card to work in tandem in one system to drive up to four displays using advanced multi-card features† Widescreen resolution support & additional functionality via Matrox Power Res Display pivoting (rotation) support Global sales & technical support Ro HS & WEEE compliant 3-year warranty Part Number
- P69-MDDE256LAUF Card type
- PCIe x 16 (PCI Express x 16) Graphics Memory
- 256 MB DDR2 Bracket connectors
- LFH60 Card form factor
- LP (Low-Profile) Bracket form factor
- ATX Extra bracket in the box
- LP Adapter Cables
- LFH-60 to 2 x DVI Connector Adapters
- 2 DVI-to-HD15 EMC certifications
- Class A – ACA, CE, CSA, FCC, VCCI Card size
- 6.6" x 2.71" / 16.76 x 6.88 cm (Card size = length, not including bracket & bracket connectors x height, including slot connector. Card width is within specifications for a single card of the given type.) Maximum resolutions (per display) Digital, 1-2 monitors: 1920 x 1200 Analog, 1-2 monitor: 2048 x 1536 Analog, 3-4 monitors: 1920 x 1200










...
