Hyper X Impact 8GB DDR4 2400 M Hz SODIMM Memory Hyper X HX424S14IB/4 is a 512M x 64-bit (4GB) DDR4-2400 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit DDR4 FBGA components. Each module supports Intel Extreme Memory Profiles (Intel XMP) 2.0. This module has been tested to run at DDR4-2400 at a low latency timing of 14-14-14 at 1.2V. Additional timing parameters are shown in the Pn P Timing Parameters section below. The JEDEC standard electrical & mechanical specifications are as follows: Pn P JEDEC TIMING PARAMETERS: JEDEC/ Pn P: DDR4-2400 CL14-14-14 @1.2V DDR4-2133 CL13-13-13 @1.2V XMP Profile 1: DDR4-2400 CL14-14-14 @1.2V FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.18” (30.00mm) SPECIFICATIONS CL (IDD) 14 cycles Row Cycle Time (t R Cmin) 46.75ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 29.125ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used.

...

Hyper X HX318LS11IBK2/16 is a kit of two 1G x 64-bit (8GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 2 Rx 8, low voltage, memory modules, based on sixteen 512M x 8-bit DDR3 FBGA components per module. Total kit capacity is 16GB. Each module kit has been tested to run at DDR3L-1866 at a ow latency timing of 11-11-11 at 1.35V or 1.5V. Additional iming parameters are shown in the Pn P Timing Parameters section below. JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB: Height 1.180” (30.00mm), double sided components

...

Hyper X HX318LS11IB/4 is a 512M x 64-bit (4GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 1 Rx 8, low voltage, memory modules, based on eight 512M x 8-bit DDR3 FBGA compo-nents. This module has been tested to run at DDR3L-1866 at a low latency timing of 11-11-11 at 1.35V or 1.5V. Additional timing parameters are shown in the Pn P Timing Parameters section below. FEATURES JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm 1%) Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe On Die Termination using ODT pin

...

Hyper X HX318LS11IBK2/8 is a kit of two 512M x 64-bit (4GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 1 Rx 8, low voltage, memory modules, based on eight 512M x 8-bit DDR3 FBGA components per module. Total kit capacity is 8GB. Each module kit has been tested to run at DDR3L-1866 at a low latency timing of 11-11-11 at 1.35V or 1.5V. JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Burst Length: 8 (interleave without any limit, sequential with starting address '000' only), 4 with t CCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS) Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C degrees Asynchronous Reset

...

Hyper X HX318LS11IB/8 is a 1G x 64-bit (8GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 2 Rx 8, low voltage, memory modules, based on sixteen 512M x 8-bit DDR3 FBGA compo-nents. This module has been tested to run at DDR3L-1866 at a low latency timing of 11-11-11 at 1.35V or 1.5V. Additional timing parameters are shown in the Pn P Timing Parameters section below. FEATURES JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply Bi-directional Differential Data Strobe VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset On Die Termination using ODT pin

...

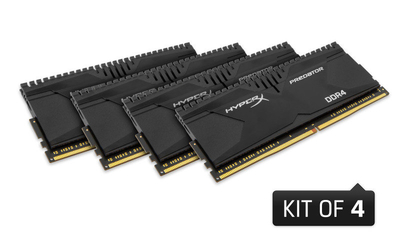

Hyper X HX426C13PB2K4/16 is a kit of four 512M x 64-bit (4GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2666 at a low latency timing of 13-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. ...

Hyper X HX428C14PB2K4/16 is a kit of four 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2800 at a low latency timing of 14-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. ...

Hyper X HX430C15PB2K4/16 is a kit of four 512M x 64-bit (4GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-3000 at a low latency timing of 15-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. ...

Hyper X Predator SSD offers large capacities & incredible speeds with both compressible & incompressible data to take your system to the edge. Faster than SATA-based SSDs, it delivers speeds of up to 1400MB/s read & 1000MB/s write for ultra-responsive multitasking & an overall faster system. It features a PCIe Gen 2.0 x 4 interface for high performance & an M.2 form factor to fit the next generation of desktops with an M.2 PCIe slot. A Half-Height, Half-Length (HHHL) adapter that works with many existing motherboards with at least a PCIe x 4 slot open is available. The HHHL adapter comes with both standard & low-profile brackets to fit in slim-profile desktop builds. Prey on the competition for years to come. Hyper X Predator SSD comes with a three-year warranty & free technical support to keep you winning. Features Powered by Marvell controller PCIe Gen 2.0 x 4 interface in M.2 form factor Optional Half-Height, Half-Length adapter Speeds up to 1400MB/s read & 1000MB/s write Guaranteed — three-year warranty FEATURES/BENEFITS Fast — PCIe connection provides higher speeds than SATA-based solid-state drives for the ultimate computing experience Blazing performance — ultra-responsive multitasking & overall faster system Reliable — rugged & durable to take your system to the edge Form factor — M.2 with Half-Height Half-Length adapter to fit in both new & older motherboards Guaranteed — three-year warranty & free technical support SPECIFICATIONS Form factor M.2 2280 Interface PCIe Gen 2.0 x 4 Capacity 240GB Controller Marvell 88SS9293 Baseline performance 4 Compressible data transfer (ATTO) 240GB — 1400MB/s read & 600MB/s write Incompressible data transfer (AS-SSD & Crystal Disk Mark) 240GB — 1290MB/s read & 600MB/s write IOMETER maximum random 4k read/write 240GB — up to 160, 000/ up to 119, 000 IOPS Random 4k read/write 240GB — up to 120, 000/ up to 78, 000 IOPS PCMARK Vantage HDD Suite score 240GB — 138, 000 PCMARK 8 storage bandwidth 240GB — 331MB/s PCMARK 8 storage score 240GB — 5, 015 Anvil total score (incompressible workload) 240GB — 6, 500 Power consumption 1.38W idle / 1.4W avg / 1.99W (MAX) read / 8.25W (MAX) write Storage temperatures -40°C~85°C Operating temperatures 0°C~70°C

Dimensions 80mm x 22mm x 3.5mm (M.2) 180.98mm x 120.96mm x 21.59mm (with HHHL adapter – standard bracket) 181.29mm x 80.14mm x 23.40mm (with HHHL adapter – low-profile bracket) Weight 10g (M.2) 73g (with HHHL adapter – standard bracket) 68g (with HHHL adapter – low-profile bracket) Vibration operating 2.17G peak (7–800 Hz) Vibration non-operating 20G peak (10–2000 Hz) Life expectancy 1 million hours MTBF Warranty/support 3-year warranty with free technical support Total Bytes Written (TBW)5 240GB: 415TB 1.6 DWPD6

...

Hyper X Predator SSD offers large capacities & incredible speeds with both compressible & incompressible data to take your system to the edge. Faster than SATA-based SSDs, it delivers speeds of up to 1400MB/s read & 1000MB/s write for ultra-responsive multitasking & an overall faster system. It features a PCIe Gen 2.0 x 4 interface for high performance & an M.2 form factor to fit the next generation of desktops with an M.2 PCIe slot. Prey on the competition for years to come. Hyper X Predator SSD comes with a three-year warranty & free technical support to keep you winning. Features Powered by Marvell controller PCIe Gen 2.0 x 4 interface in M.2 form factor Speeds up to 1400MB/s read & 1000MB/s write Guaranteed — three-year warranty FEATURES/BENEFITS Fast — PCIe connection provides higher speeds than SATA-based solid-state drives for the ultimate computing experience Blazing performance — ultra-responsive multitasking & overall faster system Reliable — rugged & durable to take your system to the edge Form factor — M.2 Guaranteed — three-year warranty & free technical support SPECIFICATIONS Form factor M.2 2280 Interface PCIe Gen 2.0 x 4 Capacity 240GB Controller Marvell 88SS9293 Baseline performance 4 Compressible data transfer (ATTO) 240GB — 1400MB/s read & 600MB/s write Incompressible data transfer (AS-SSD & Crystal Disk Mark) 240GB — 1290MB/s read & 600MB/s write IOMETER maximum random 4k read/write 240GB — up to 160, 000/ up to 119, 000 IOPS Random 4k read/write 240GB — up to 120, 000/ up to 78, 000 IOPS PCMARK Vantage HDD Suite score 240GB — 138, 000 PCMARK 8 storage bandwidth 240GB — 331MB/s PCMARK 8 storage score 240GB — 5, 015 Anvil total score (incompressible workload) 240GB — 6, 500 Power consumption 1.38W idle / 1.4W avg / 1.99W (MAX) read / 8.25W (MAX) write Storage temperatures -40°C~85°C Operating temperatures 0°C~70°C

Dimensions 80mm x 22mm x 3.5mm (M.2) Weight 10g (M.2) Vibration operating 2.17G peak (7–800 Hz) Vibration non-operating 20G peak (10–2000 Hz) Life expectancy 1 million hours MTBF Warranty/support 3-year warranty with free technical support Total Bytes Written (TBW)5 240GB: 415TB 1.6 DWPD6

...
