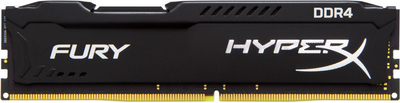

HyperX 8GB 2666MHz DDR4 Non-ECC CL15 1.2V DIMM Memory

Product Description

Hyper X HX426C15FB/8 is a 1G x 64-bit (8GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 2 Rx 8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Specifications:
- CL (IDD) 15 cycles
- Row Cycle Time (t R Cmin) 45ns (min.)
- Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.)
- Row Active Time (t RASmin) 26.25ns (min.)
- UL Rating 94 V
- 0
- Operating Temperature 0 oC to +85 o C
- Storage Temperature -55 oC to +100 oC

Features:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP
- 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation & calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command & address bus
- Height 1.340” (34.04mm), w/heatsink
