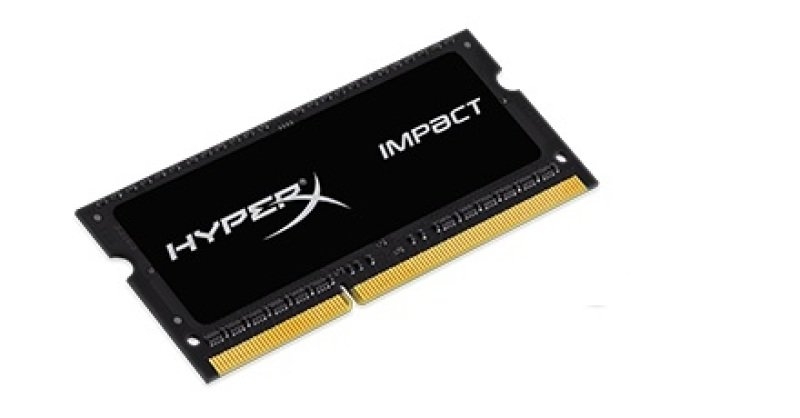

Hyper X HX318LS11IB/4 is a 512M x 64-bit (4GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 1 Rx 8, low voltage, memory modules, based on eight 512M x 8-bit DDR3 FBGA compo-nents. This module has been tested to run at DDR3L-1866 at a low latency timing of 11-11-11 at 1.35V or 1.5V. Additional timing parameters are shown in the Pn P Timing Parameters section below. FEATURES JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm 1%) Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe On Die Termination using ODT pin
