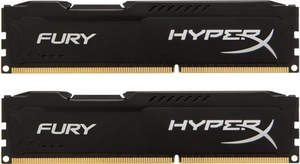

Hyper X HX318LS11IBK2/16 is a kit of two 1G x 64-bit (8GB) DDR3L-1866 CL11 SDRAM (Synchronous DRAM) 2 Rx 8, low voltage, memory modules, based on sixteen 512M x 8-bit DDR3 FBGA components per module. Total kit capacity is 16GB. Each module kit has been tested to run at DDR3L-1866 at a ow latency timing of 11-11-11 at 1.35V or 1.5V. Additional iming parameters are shown in the Pn P Timing Parameters section below. JEDEC standard 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) & 1.5V (1.425V ~ 1.575V) 933 M Hz f CK for 1866 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB: Height 1.180” (30.00mm), double sided components
