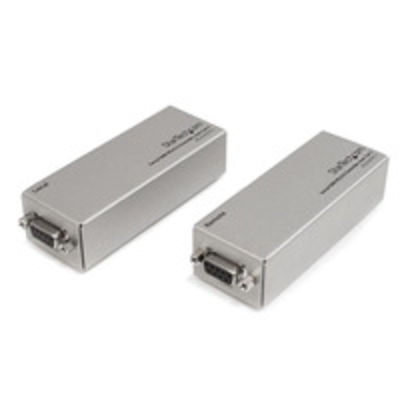

The RS232EXTC1GB Serial over Cat 5 Extender means that you can increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system
- an incredible 65x greater than normal RS232 serial cable length restrictions would permit.\n\n The Extender is a cost-effective serial extension solution & completely hardware-based, eliminating the need to install additional software, allowing for a completely plug & play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.\n\n Perfect for use in industrial monitoring & control, POS, security, medical, & traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.\n\n Backed by a Star Tech.com 2-year warranty & free lifetime technical support. Feature Feature Value Type Network transmitter Maximum transfer distance 1000 m Cable types supported Cat 5 Ethernet LAN (RJ-45) ports 2VGA (D-Sub) ports quantity 2 Product colour Silver Ro HS compliance YAC input voltage 240 VInput current 0.055 AOutput current 0.3 AOperating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)0
- 85 &176;COperating relative humidity (H-H)0
- 95% Width 34 mm Depth 92 mm Height 22 mm Weight 65 g Manual Y Package width 2.24 mm Package depth 12.4 mm Package height 5.43 mm Package weight 1kg
