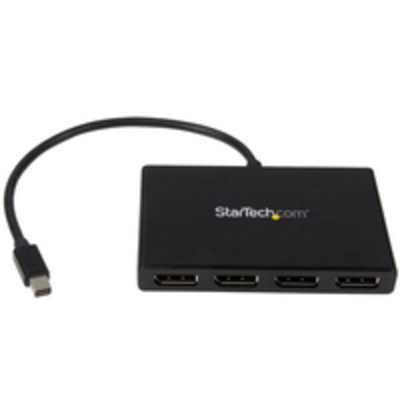

Use this adapter to connect four independent displays to a single m DP 1.2 port\n\n This MST hub lets you connect four monitors to your Mini Display Port (m DP) 1.2 equipped Windows tablet, laptop or desktop.\n\n Increase productivity with multiple screens\n\n The newest generations of computers are more portable than ever, which often means that you&153;re left with fewer video outputs & smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier. \n\n Connect to any display\n\n With the MST hub, you can use Mini Display Port video adapters & cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures that your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA & Display Port certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.\n\n Configure your displays for any environment\n\n Using the MST hub, you can extend your desktop onto additional monitors & stream independent content to each display, giving you the freedom to multitask & increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.\n\n Enjoy amazing video quality, without draining system resources\n\n MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming & medical imaging.\n\n Note: When using a Display Port 1.1 video card the MSTMDP124DP will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.\n\n The MSTMDP124DP supports plug-&-play installation for a hassle-free setup, & is backed by a Star Tech.com 3-year warranty & free lifetime technical support.\n\n Notes: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support & will only output to three displays in total. If more than three monitors are attached, the fourth will be disabled.\n\n The Surface Pro 3, Surface Pro 4, & Surface Book only support the use of three displays in total. If this device is used with the Surface Pro 3, & three external monitors, the built-in touch screen on your Surface will be disabled. \n\n Average resolution bandwidth allocation\n\n 1920x 1080 (High-definition 1080p) @60hz
- 22%\n\n 1920x 1200 @60hz
- 30%\n\n 2560x 1440 @60hz
- 35%\n\n 2560x 1600 @60hz
- 38%\n\n 3840 x 2160 (Ultra HD 4K) @30hz
- 38%\n\n Note: Exceeding 100% will reduce functionality.\n\n Examples of supported resolution configurations\n\n Screen 1 Resolution\n\n Screen 2 Resolution\n\n Screen 3 Resolution\n\n Screen 4 Resolution\n\n Total % of Bandwidth\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n 88%\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n 96%\n\n 3840x 2160 @30hz (38%)\n\n 1920x 1080 @60hz (22%)\n\n 1920x 1080 @60hz (22%)\n\n off\n\n 82%\n\n 3840x 2160 @30hz (38%)\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1080 @60hz (22%)\n\n off\n\n 90%\n\n Examples of unsupported resolution configurations\n\n Screen 1 Resolution\n\n Screen 2 Resolution\n\n Screen 3 Resolution\n\n Screen 4 Resolution\n\n Total % of Bandwidth\n\n 2560x 1600 @60hz (38%)\n\n 2560x 1600 @60hz (38%)\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1200 @60hz (30%)\n\n 136%\n\n 3840x 2160 @30hz (38%)\n\n 2560x 1600 @60hz (38%)\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1200 @60hz (30%)\n\n 136%\n\n 3840x 2160 @30hz (38%)\n\n 2560x 1600 @60hz (38%)\n\n 2560x 1440 @60hz (35%)\n\n 1920x 1200 @60hz (30%)\n\n 141%\n\n 3840x 2160 @30hz (38%)\n\n 3840x 2160 @30hz (38%)\n\n 3840x 2160 @30hz (38%)\n\n off\n\n 114%\n\n The Star Tech.com Advantage\n\n- Maximize your productivity by connecting four independent displays to your computer using the MST hub\n- Connect to almost any television, monitor or projector with support for low-cost adapters\n- Newly engineered chipset for increased compatibility with Microsoft Surface Pro 4 Feature Feature Value Video ports quantity 4 Video port type Mini Display Port Video out 4x Display Port Maximum resolution 3840 x 2160 pixels Product colour Black Maximum refresh rate 30 Hz Supported graphics resolutions 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 Plug & Play Y Ro HS compliance Y Certification CE, FCC, Ro HSWindows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64 Input voltage 100
- 240 VInput current 0.5 AOutput voltage 5 VOutput current 3 APower consumption (typical)15 WWidth 65 mm Depth 386 mm Height 15 mm Weight 127 g Package width 153 mm Package depth 244 mm Package height 64 mm Package weight 118 g Manual YAC adapter included Y Included power plug types AU, EU, NA, UKOperating temperature (T-T)0
- 45 &176;CStorage temperature (T-T)-20
- 70 &176;C
