The Pro Lite T1732MSC-W5AG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The Anti Glare coating helps to avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Available in black & white.\n\n IP\n The IP code classifies & rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 215 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31.4
- 80 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display diagonal (metric)43 cm Display number of colours 16.78 million colors Product colour White International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Megapixel 1.3 MPNumber of simultaneous touchpoints (Windows 7)10 Built-in speaker (s)YRMS rated power 2 WHDCPYWindows operating systems supported Y Linux operating systems supported Y Plug & Play YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Power supply type ACPower consumption (typical)20 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCIWidth 387 mm Height 342 mm Depth 54.5 mm Weight 5.6kg






...

19&157; monitor with Surface Acoustic Wave touch technology\n The Pro Lite T1931SAW-B5 uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity & screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, & the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, & include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1931SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality & Entertainment, Control rooms, Education, Training & many others.\n\n Touch technology
- Surface Acoustic Wave\n Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed & a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast & colour accuracy). It is also scratch-resistant technology & therefore ideal to be used in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\nip 54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Speakers\n This LED monitor is equipped with two high quality stereo speakers.\n\n VESA\n VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard. Feature Feature Value Display diagonal 48.3 cm (19") Response time 5 ms Display brightness 230 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.294 x 0.294 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)301 x 376 mm Display diagonal (metric)48 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Surface acoustic wave Megapixel 1.3 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of speakers 2HDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)20 WPower consumption (standby)3 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Width 432 mm Height 390 mm Depth 28 mm Weight 6.6kg Dimensions (W x D x H) with stand 432 x 218 x 390 mm





...

iiyama T1931SR-1, Pro Lite. Display diagonal: 482.6 mm (19 "), Response time: 5 ms, Display brightness: 200 cd/m-square. Colour of product: White, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 25 W, Power consumption (standby): 2 W. Weight: 6.5kg ...

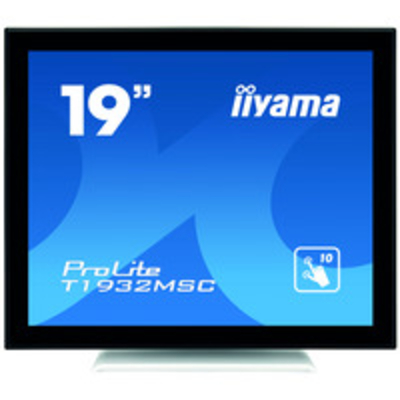

The Pro Lite T1932MSC-B5AG 19" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The IPS matrix guarantees high performance with accurate & consistent colour reproduction, & wide viewing angles. Anti Glare coating helps to avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. Its touch function remains unaffected even if the glass is scratched. A solid & steady base supports the touch screen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours.\n\n IPS\n IPS technology offers higher contrast, darker blacks & much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.\n\n Touch technology
- Capacitive\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\n IP54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n AG Coating\n The anti-glare coating is used in professional-grade displays to help avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. It also makes the screen less susceptible to dust, grease & dirt marks. Feature Feature Value Display diagonal 48.3 cm (19") Response time 14 ms Display brightness 250 cd/m&178; Display technology IPSContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Display surface Matt Pixel pitch 0.2928 x 0.2928 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Display viewable area (Hx V)374.8 x 300 mm Display diagonal (metric)48 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Touchscreen type Tabletop Number of simultaneous touchpoints 10 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Number of speakers 2 Plug & Play YUSB Touch port YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)25 WPower consumption (standby)2 WPower consumption (off)2 WEnergy efficiency class B Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCI, REACH SVHCWidth 432 mm Height 391 mm Depth 219 mm Weight 6.9kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y



...

The Pro Lite T1932MSC-B5X 19" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the touchscreen for cleaning. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Available in black & white.\n\n IPS\n IPS technology offers higher contrast, darker blacks & much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n Touch technology
- Capacitive\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\n IP\n The IP code classifies & rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.\n\n Speakers\n This LED monitor is equipped with two high quality stereo speakers. Feature Feature Value Display diagonal 48.3 cm (19") Response time 14 ms Display brightness 250 cd/m&178; Display technology IPSContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.2928 x 0.2928 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Display viewable area (Hx V)374.8 x 300 mm Display diagonal (metric)48 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP65 Touch technology Multi-touch Touchscreen technology Projected capacitive system Touchscreen type Tabletop Number of simultaneous touchpoints 10 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Number of speakers 2 Plug & Play YUSB Touch port YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)25 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Energy efficiency class B Certification CB, CE, T&156;V-Bauart, EAC, CU, c U Lus Width 432 mm Height 302 mm Depth 54.5 mm Dimensions (W x D x H) with stand 432 x 219 x 391 mm Weight with stand 6.9kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y







...

22&157; PCAP 10pt touch screen with Android\n\n Connect & go with the Pro Lite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5&157; PCAP 10-point touchscreen with Android allows users to directly connect & operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content & advertising.\n\n The robust screen comes with a rugged bezel & an IP65 rating, meaning the monitor is dust & water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance & wide viewing angels, making it a perfect interactive display for instore retail.\n\n Touch technology
- Capacitive\n\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen. Feature Feature Value Display diagonal 54.6 cm (21.5") Response time 8 ms Display brightness 350 cd/m&178; Display technology IPSContrast ratio (typical)1000:1 Display resolution 1920 x 1080 pixels Aspect ratio 16:9 Pixel pitch 0.247 x 0.247 mm Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Full HDYDisplay diagonal (metric)55 cm LED backlight Y Display number of colours 16.78 million colors Product colour Black Glass thickness 2.5 mm Glass hardness 7HInternational Protection (IP) code IP65 Touch technology Multi-touch Touchscreen technology Projected capacitive system Built-in camera N Built-in microphone N Touchscreen type Multi-user Number of simultaneous touchpoints 10e MMC capacity 16 GBMegapixel 2.1 MPBuilt-in speaker (s)YRMS rated power 4 WHDCPYOperating system installed Android Operating system version 8.1 Number of speakers 2 Card reader integrated Y Compatible memory cards SDWindows operating systems supported Y Linux operating systems supported Y Plug & Play Y Wi-Fi Y Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n) Ethernet LANYBluetooth Y Bluetooth version 4.0USB 2.0 ports quantity 4HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1RS-232CYBuilt-in processor Y Processor frequency 1.8 GHz Internal memory 2048 MBInternal memory type DDR3 Graphics adapter Mail T760 MP4 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Placement supported Horizontal/ Vertical Power supply type ACPower consumption (typical)25 WPower consumption (standby)0.5 WPower management YAC adapter output voltage 12 VCertification CE, CU, c U Lus, CCCWidth 517.5 mm Height 351.5 mm Depth 219 mm Weight 6.6kg Cables included ACQuick start guide YAC adapter included Y

...

iiyama Pro Lite T2234MSC-B7X. Display diagonal: 54.6 cm (21.5"), Display brightness: 305 cd/m&178;, HD type: Full HD. Product



...

iiyama Pro Lite T2234MSC-B7X. Display diagonal: 54.6 cm (21.5"), Display brightness: 305 cd/m&178;, HD type: Full HD. Product



...

22" 10 point multi-touch monitor with Edge to Edge glass\n\n With 1920x 1080 Full HD resolution & Projective Capacitive 10 point touch technology, the Pro Lite T2235MSC delivers seamless & accurate touch response. Featuring VA LED-backlit LCD screen technology, it offers exceptional colour performance & wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2235MSC comes equipped with several video inputs & stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, In Store Retail, Gaming & Interactive Presentations purposes.\n\n TOUCH TECHNOLOGY
- CAPACITIVE\n\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (gloved or not) & magnetic ball.\n\n BLUE LIGHT REDUCER\n\n As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness & color temperature through a new feature called &156; Blue light reduction&157; easily accessible through the monitor&153;s OSD menu.\n\n SCRATCH RESISTANCE\n\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n SPEAKERS\n\n This LED monitor is equipped with two high quality stereo speakers. Feature Feature Value Display diagonal 54.6 cm (21.5") Response time 6 ms Display brightness 250 cd/m&178; Display technology VAContrast ratio (typical)3000:1 Display resolution 1920 x 1080 pixels Display type LEDAspect ratio 16:9 Pixel pitch 0.248 x 0.248 mm Horizontal scan range 30
- 80 k Hz Vertical scan range 55
- 75 Hz Viewing angle, horizontal 176&176; Viewing angle, vertical 176&176; Display viewable area (Hx V)267.8 x 476.1 mm Separate H/V sync Y Backlight type LEDContrast ratio (dynamic)12000000:1 Full HDYDisplay diagonal (metric)54.6 cm LED backlight Y Colour gamut 90% Display number of colours 16.78 million colors Product colour Black Touch technology Multi-touch Touchscreen technology Projected capacitive system Built-in camera N Built-in microphone N Touchscreen type Tabletop Built-in speaker (s)YRMS rated power 4 WNumber of OSD languages 10 On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, French, Italian, Japanese, Polish, Romanian Number of speakers 2 Windows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows Vista Business, Windows Vista Business x 64, Windows Vista Enterprise, Windows Vista Enterprise x 64, Windows Vista Home Basic, Windows Vista Home Basic x 64, Windows Vista Home Premium, Windows Vista Home Premium x 64, Windows Vista Ultimate, Windows Vista Ultimate x 64 Mac operating systems supported Y Linux operating systems supported Y Plug & Play YUSB 2.0 ports quantity 1VGA (D-Sub) ports quantity 1DVI port YDVI-D ports quantity 1PC Audio in Y Wall mountable Y Tilt angle range-15
- 70&176; Panel mounting interface 100 x 100 mm Placement supported Horizontal/ Vertical Tilt adjustment Y Cable lock slot YVESA mounting Y Power supply type ACPower consumption (typical)21 WAC input voltage 100-240 VAC input frequency 50
- 60 Hz Power management Y Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Storage relative humidity (H-H)10
- 90% Certification CE, T&156;V-Bauart, VCCI-B, CUWidth 522.5 mm Height 320.5 mm Depth 49 mm Weight 5kg Cables included AC, Audio (3.5mm), DVI, USBQuick start guide Y








...

With its Full HD (1920x 1080) resolution & accurate Projective Capacitive 10 point touch technology, the Pro Lite T2252MSC-B1 delivers seamless & accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance & wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable & ergonomic user experience. In addition, the edge-to-edge glass & ultra slim design creates an eye-catching finish with high contrast guaranteeing perfect clarity & brilliant colours. The Pro Lite T2252MSC-B1 is the ideal solution for interactive signage, instore retail, POS & interactive presentations.\n\n Touch technology
- Capacitive\n\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & magnetic ball.\n\n IPS Technology\n\n IPS technology offers higher contrast, darker blacks & much better viewing angles than standard TN technology. The screen will look good no matter from what angle you look at it.\n\n Scratch resistance\n\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n Blue light reducer\n\n As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness & color temperature through a new feature called &156; Blue light reduction&157; easily accessible through the monitor&153;s OSD menu.\n\n VESA\n\n VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard. Feature Feature Value Display diagonal 54.6 cm (21.5") Response time 7 ms Display brightness 250 cd/m&178; Display technology IPSContrast ratio (typical)1000:1 Display resolution 1920 x 1080 pixels Display type LEDAspect ratio 16:9 Pixel pitch 0.248 x 0.248 mm Horizontal scan range 24
- 83 k Hz Vertical scan range 55
- 76 Hz Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Display viewable area (Hx V)268.11 x 476.64 mm Digital horizontal frequency 24
- 83 k Hz Digital vertical frequency 55
- 76 Hz Separate H/V sync Y Contrast ratio (dynamic)5000000:1 Full HDYDisplay diagonal (metric)54.6 cm LED backlight Y Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Display number of colours 16.78 million colors Product colour Black Touch technology Multi-touch Touchscreen technology Projected capacitive system Built-in camera N Built-in microphone N Omni Tapps Multitouch compatibility N Number of simultaneous touchpoints (Windows 7)10 Built-in speaker (s)YRMS rated power 4 WHDCPYNumber of OSD languages 10 On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian Number of speakers 2 Windows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64, Windows Vista Business, Windows Vista Business x 64, Windows Vista Enterprise, Windows Vista Enterprise x 64, Windows Vista Home Basic, Windows Vista Home Basic x 64, Windows Vista Home Premium, Windows Vista Home Premium x 64, Windows Vista Ultimate, Windows Vista Ultimate x 64 Linux operating systems supported Y Plug & Play YUSB 2.0 ports quantity 1HDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Headphone outputs 1PC Audio in Y Wall mountable Y Tilt angle range-3
- 73&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Power supply type ACPower consumption (typical)18.1 WPower consumption (max)26 WAC input voltage 100-240 VAC input frequency 50
- 60 Hz Power management Y Energy efficiency class B Operating temperature (T-T)5
- 35 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)10
- 80% Storage relative humidity (H-H)5
- 85% Certification CE, T&156;V-Bauart, c U Lus, CU, EPEAT Silver Width 490.5 mm Height 296 mm Depth 48 mm Dimensions (W x D x H) with stand 490.5 x 220.5 x 370.5 mm Weight with stand 4.8kg Cables included AC, Audio (3.5mm), HDMI, USBQuick start guide Y Glass protection Y










...
