iiyama T1731SR-1, Pro Lite. Display diagonal: 431.8 mm (17 "), Response time: 5 ms, Display brightness: 200 cd/m-square. Colour of product: Black, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 20 W, Power consumption (standby): 2 W. Weight: 5.7kg ...

iiyama T1731SR-1, Pro Lite. Display diagonal: 431.8 mm (17 "), Response time: 5 ms, Display brightness: 200 cd/m-square. Colour of product: White, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 20 W, Power consumption (standby): 2 W. Weight: 5.7kg ...

Pro Lite T1731SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality & performance are certainly not compromised. The display inputs include both analogue & digital (VGA, HDMI & Display Port) with touchscreen connectivity via USB (Universal Serial Bus) offering great flexibility. A solid & steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The Pro Lite T1731SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants & industrial purposes. Available in black & white. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 200 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Aspect ratio 5:4 Anti-glare surface Y Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)338 x 270 mm Separate H/V sync Y Full HDNDisplay diagonal (metric)43 cm Viewable size, horizontal 33.8 cm Viewable size, vertical 27 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Resistive Built-in camera N Number of simultaneous touchpoints 1 Megapixel 1.3 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Number of speakers 2 Card reader integrated N Windows operating systems supported Y Linux operating systems supported Y Plug & Play YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Audio input 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)20 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50 / 60 Hz Power management Y Energy efficiency class A Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Storage relative humidity (H-H)10
- 90% Certification CB, CE, T&156;V-Bauart, VCCI, GOSTWidth 387 mm Height 342 mm Depth 201 mm Weight 5.8kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y







...

Pro Lite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality & performance are certainly not compromised. The display inputs include both analogue & digital (VGA, HDMI & Display Port) with touchscreen connectivity via USB (Universal Serial Bus) offering great flexibility. A solid & steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The Pro Lite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants & industrial purposes. Available in black & white. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 200 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Aspect ratio 5:4 Anti-glare surface Y Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)338 x 270 mm Separate H/V sync Y Full HDNDisplay diagonal (metric)43 cm Display number of colours 16.78 million colors Product colour White International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Resistive Built-in camera N Megapixel 1.3 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Number of speakers 2 Card reader integrated N Windows operating systems supported Y Linux operating systems supported Y Plug & Play YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Audio input 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)20 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50 / 60 Hz Power management Y Energy efficiency class A Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Storage relative humidity (H-H)10
- 90% Certification CB, CE, T&156;V-Bauart, VCCI, GOSTWidth 387 mm Height 342 mm Depth 201 mm Weight 5.8kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y







...

The Pro Lite T1732MSC 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Analogue & DVI inputs are available for flexible connectivity along with USB (Universal Serial Bus) for the Touch Interface. The multi-touch function is supported only under Windows 7 & 8. Touch technology
- capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (gloved or not) & magnetic ball. IP54 The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water. multi-touch The multi-touch functionality is supported under Windows 7/8 only.


...

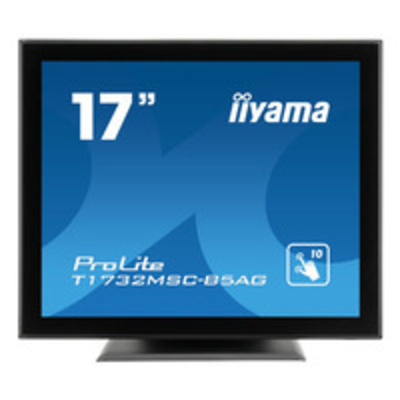

The Pro Lite T1732MSC-B5X 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Available in black & white.\n\n Touch technology
- Capacitive\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\nip 54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n Speakers\n This LED monitor is equipped with two high quality stereo speakers.\n\n VESA\n VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 225 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31.4
- 80 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display diagonal (metric)43 cm Supported graphics resolutions 1280 x 1024 (SXGA) Viewable size, horizontal 33.8 cm Viewable size, vertical 27.1 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Megapixel 1.3 MPNumber of simultaneous touchpoints (Windows 7)10 Built-in speaker (s)YRMS rated power 2 WNumber of speakers 2 Windows operating systems supported Y Linux operating systems supported Y Plug & Play YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Power consumption (typical)25 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Certification CB, CE, T&156;V-Bauart, VCCI, GOSTWidth 387 mm Height 342 mm Depth 54.5 mm Weight 5.6kg Cables included Display Port, HDMI, USB







...

The Pro Lite T1732MSC-W5AG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The Anti Glare coating helps to avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Available in black & white.\n\n IP\n The IP code classifies & rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 215 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31.4
- 80 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display diagonal (metric)43 cm Display number of colours 16.78 million colors Product colour White International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Megapixel 1.3 MPNumber of simultaneous touchpoints (Windows 7)10 Built-in speaker (s)YRMS rated power 2 WHDCPYWindows operating systems supported Y Linux operating systems supported Y Plug & Play YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Power supply type ACPower consumption (typical)20 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCIWidth 387 mm Height 342 mm Depth 54.5 mm Weight 5.6kg






...

19&157; monitor with Surface Acoustic Wave touch technology\n The Pro Lite T1931SAW-B5 uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity & screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, & the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, & include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1931SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality & Entertainment, Control rooms, Education, Training & many others.\n\n Touch technology
- Surface Acoustic Wave\n Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed & a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast & colour accuracy). It is also scratch-resistant technology & therefore ideal to be used in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\nip 54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Speakers\n This LED monitor is equipped with two high quality stereo speakers.\n\n VESA\n VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard. Feature Feature Value Display diagonal 48.3 cm (19") Response time 5 ms Display brightness 230 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.294 x 0.294 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)301 x 376 mm Display diagonal (metric)48 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Surface acoustic wave Megapixel 1.3 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of speakers 2HDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)20 WPower consumption (standby)3 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Width 432 mm Height 390 mm Depth 28 mm Weight 6.6kg Dimensions (W x D x H) with stand 432 x 218 x 390 mm





...

iiyama T1931SR-1, Pro Lite. Display diagonal: 482.6 mm (19 "), Response time: 5 ms, Display brightness: 200 cd/m-square. Colour of product: White, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 25 W, Power consumption (standby): 2 W. Weight: 6.5kg ...

The Pro Lite T1932MSC-B5AG 19" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The IPS matrix guarantees high performance with accurate & consistent colour reproduction, & wide viewing angles. Anti Glare coating helps to avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. Its touch function remains unaffected even if the glass is scratched. A solid & steady base supports the touch screen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours.\n\n IPS\n IPS technology offers higher contrast, darker blacks & much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.\n\n Touch technology
- Capacitive\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\n IP54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n AG Coating\n The anti-glare coating is used in professional-grade displays to help avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. It also makes the screen less susceptible to dust, grease & dirt marks. Feature Feature Value Display diagonal 48.3 cm (19") Response time 14 ms Display brightness 250 cd/m&178; Display technology IPSContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Display surface Matt Pixel pitch 0.2928 x 0.2928 mm Horizontal scan range 31
- 80 k Hz Vertical scan range 50
- 75 Hz Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Display viewable area (Hx V)374.8 x 300 mm Display diagonal (metric)48 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Touchscreen type Tabletop Number of simultaneous touchpoints 10 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese Number of speakers 2 Plug & Play YUSB Touch port YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)25 WPower consumption (standby)2 WPower consumption (off)2 WEnergy efficiency class B Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCI, REACH SVHCWidth 432 mm Height 391 mm Depth 219 mm Weight 6.9kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y



...
