The Pro Lite T1531SAW-B5X uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity & screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, & the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, & include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1531SAW-B5X touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality & Entertainment, Control rooms, Education, Training & many others.\n\n Touch technology
- Surface Acoustic Wave\n\n Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed & a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast & colour accuracy). It is also scratch-resistant technology & therefore ideal to be used in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch. Feature Feature Value Display diagonal 38.1 cm (15") Response time 8 ms Display brightness 340 cd/m&178; Display technology TNContrast ratio (typical)700:1 Display resolution 1024 x 768 pixels Display type LEDAspect ratio 4:3 Pixel pitch 0.297 x 0.297 mm Horizontal scan range 31.5
- 60.2 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Full HDNDisplay diagonal (metric)38 cm Viewable size, horizontal 30.4 cm Viewable size, vertical 22.8 cm Display number of colours 16.2 million colors Product colour Black International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Surface acoustic wave Built-in camera N Built-in microphone N Number of simultaneous touchpoints 1 Megapixel 0.8 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Number of speakers 2 Card reader integrated N Windows operating systems supported Y Linux operating systems supported Y Plug & Play Y Wi-Fi N Ethernet LANNHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)16 WPower consumption (standby)3 WAC input voltage 100
- 240 VAC input frequency 50 / 60 Hz Power management Y Energy efficiency class A Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCIWidth 351 mm Height 306 mm Depth 201 mm Weight 4.8kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y




...

Pro Lite T1531SR is based on the latest 5 Wire Resistive technology. Price / performance ratio is ideal for the budget conscious user while quality &

Specification is certainly not compromised. The display inputs include both Analogue & Digital (DVI) with Touchscreen connectivity via either USB (Universal Serial Bus) or RS-232 which offers greater than typical flexibility. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree angles. Extensive Touch Utilities allow for 4 point calibration & either 9/25 point linerization. An incredibly powerful Touch solution. Available in black & white.

...

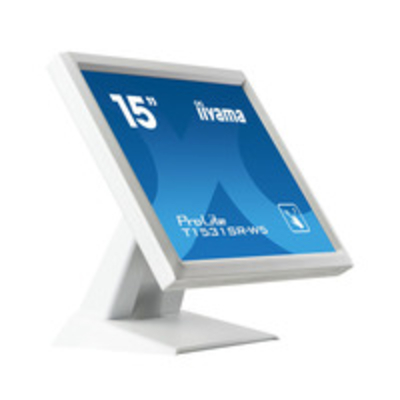

iiyama T1531SR-1, Pro Lite. Display diagonal: 381 mm (15 "), Response time: 8 ms, Display brightness: 200 cd/m-square. Colour of product: White, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 20 W, Power consumption (standby): 2 W. Weight: 4.1kg ...

iiyama T1531SR-1, Pro Lite. Display diagonal: 381 mm (15 "), Response time: 8 ms, Display brightness: 200 cd/m-square. Colour of product: Black, Certification: CE, T&220;V-Bauart, Gost-R, VCCI, IP54. VESA mounting interfaces compatibility: 100 x 100 mm. Power consumption (typical): 20 W, Power consumption (standby): 2 W. Weight: 4.1kg ...

15&157; 5-wire resistive touchscreen\n\n Pro Lite T1531SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality & performance are certainly not compromised. The display inputs include both analogue & digital (HDMI & Display Port) with touchscreen connectivity via USB (Universal Serial Bus) offering great flexibility. A solid & steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The Pro Lite T1531SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants & industrial purposes. Available in black & white.\n\nip 54\n\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water. Feature Feature Value Display diagonal 38.1 cm (15") Response time 8 ms Display brightness 370 cd/m&178; Display technology TNContrast ratio (typical)700:1 Display resolution 1024 x 768 pixels Display type LEDAspect ratio 4:3 Pixel pitch 0.297 x 0.297 mm Horizontal scan range 31.5
- 60 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Viewable size diagonal 38 cm Full HDNDisplay diagonal (metric)38 cm Viewable size, horizontal 30.4 cm Viewable size, vertical 22.8 cm Product colour Black International Protection (IP) code IP54 Touchscreen technology Resistive Built-in camera N Built-in microphone N Number of simultaneous touchpoints 1 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Number of speakers 2 Card reader integrated N Windows operating systems supported Y Linux operating systems supported Y Plug & Play Y Ethernet LANNHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)16 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50 / 60 Hz Power management Y Energy efficiency class A Certification CB, CE, T&156;V, CU, c U Lus, VCCIWidth 351 mm Height 306 mm Depth 201 mm Weight 4.8kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y



...

The Pro Lite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours. Analogue & DVI inputs are available for flexible connectivity along with USB (Universal Serial Bus) for the Touch Interface. The multi-touch function is supported only under Windows 7 & 8. Touch technology
- capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (gloved or not) & magnetic ball. IP54 The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water. multi-touch The multi-touch functionality is supported under Windows 7/8 only.


...

The Pro Lite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The anti-glare coating helps to avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the Touch Screen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the Touch Screen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours.\n\n TOUCH TECHNOLOGY
- CAPACITIVE\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\n AG COATING\n The anti-glare coating is used in professional-grade displays to help avoid issues with reflections & external light sources affecting colour reproduction, contrast & sharpness. It also makes the screen less susceptible to dust, grease & dirt marks.\n\n IP54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n SCRATCH RESISTANCE\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n SPEAKERS\n This LED monitor is equipped with two high quality stereo speakers. Feature Feature Value Display diagonal 38.1 cm (15") Response time 8 ms Display brightness 370 cd/m&178; Display technology TNContrast ratio (typical)700:1 Display resolution 1024 x 768 pixels Display type LEDAspect ratio 4:3 Pixel pitch 0.297 x 0.297 mm Horizontal scan range 31.4
- 60 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)304.1 x 228.1 mm Separate H/V sync Y Display diagonal (metric)38 cm Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA) Display number of colours 16.2 million colors Product colour Black International Protection (IP) code IP54 Touchscreen technology Projected capacitive system Omni Tapps Multitouch compatibility N Number of simultaneous touchpoints 10 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Windows operating systems supported Y Linux operating systems supported Y Plug & Play YUSB Touch port YUSB Touch ports quantity 1HDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Audio input 3.5mm Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)16 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Power management Y Energy efficiency class B Operating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Storage relative humidity (H-H)10
- 90% Certification CB, CE, T&156;V, CU, c U Lus, VCCIWidth 351 mm Height 306.5 mm Depth 202 mm Weight 4.5kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y











...

15" Projective Capacitive 10pt touchscreen\n\n The Pro Lite T1532MSC-B5X 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance & perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid & steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering &

Includes:: a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity & brilliant colours.\n\nip 54\n\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water. Feature Feature Value Display diagonal 38.1 cm (15") Response time 8 ms Display brightness 330 cd/m&178; Display technology TNContrast ratio (typical)700:1 Display resolution 1024 x 768 pixels Display type LEDAspect ratio 4:3 Pixel pitch 0.297 x 0.297 mm Horizontal scan range 31
- 60 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Full HDNDisplay diagonal (metric)38 cm Viewable size, horizontal 30.4 cm Viewable size, vertical 22.8 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Built-in camera N Built-in microphone N Number of simultaneous touchpoints 10 Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Number of speakers 2 Windows operating systems supported Y Linux operating systems supported Y Plug & Play Y Ethernet LANNUSB Touch port YUSB Touch ports quantity 1HDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)16 WPower consumption (standby)2 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Certification CB, CE, T&156;V, VCCI, EACWidth 351 mm Height 306.5 mm Depth 202 mm Weight 4.5kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y






...

The 15.6&157; LED-backlit Pro Lite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology & is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, Display Port, VGA) & USB (Universal Serial Bus) Hub, comes with a rugged bezel & IP54 rated front making it suitable for demanding environments. The Pro Lite T1633MC-B1 is the ideal solution for in-store retail & kiosk integration.\n\n TOUCH TECHNOLOGY
- CAPACITIVE\n This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, & the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance & will work with human finger (also latex gloved) & stylus-pen.\n\n SCRATCH RESISTANCE\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n IP54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n LED-BACKLIT\n A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption & reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product. Feature Feature Value Display diagonal 39.6 cm (15.6") Response time 8 ms Display brightness 300 cd/m&178; Display technology TNContrast ratio (typical)500:1 Display resolution 1366 x 768 pixels Display type LEDHigh frequency rate 60 Hz Aspect ratio 16:9 Pixel pitch 0.252 x 0.252 mm Horizontal scan range 31.4
- 60.3 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 160&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)344.2 x 193.6 mm Separate H/V sync Y Display diagonal (metric)39.5 cm Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 768 (WXGA), 1366 &209;&133; 768 Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touch technology Multi-touch Touchscreen technology Projected capacitive system Built-in camera N Built-in microphone N Omni Tapps Multitouch compatibility N Touchscreen type Multi-user HDCPYNumber of OSD languages 11 On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian Blue light filter YUSB 2.0 ports quantity 2USB Touch port YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range 5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot Y Cable lock slot type Kensington Power consumption (typical)13.5 WPower consumption (standby)2 WPower consumption (off)2 WOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Storage relative humidity (H-H)10
- 90% Ro HS compliance Y Certification CB, CE, T&156;V-Bauart, EAC, Er P, WEEE, REACHWidth 389 mm Height 254 mm Depth 312.5 mm Weight 4.5kg Cables included AC, Display Port, HDMI, USBQuick start guide YAC adapter included Y Glass protection Y







...

17&157; monitor with Surface Acoustic Wave touch technology\n The Pro Lite T1731SAW-B5 uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity & screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, & the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, & include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1731SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality & Entertainment, Control rooms, Education, Training & many others.\n\n Touch technology
- Surface Acoustic Wave\n Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed & a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast & colour accuracy). It is also scratch-resistant technology & therefore ideal to be used in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.\n\n IP54\n The IP Code classifies how resistant a device is to foreign objects & moisture. IP54 means that the monitor will operate in dusty conditions, & will resist splashing water.\n\n Scratch resistance\n Scratch resistance is essential for touch solutions used in public places & schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function & even more importantly the touch function remains unaffected even if the glass is scratched.\n\n Speakers\n This LED monitor is equipped with two high quality stereo speakers.\n\n VESA\n VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard. Feature Feature Value Display diagonal 43.2 cm (17") Response time 5 ms Display brightness 250 cd/m&178; Display technology TNContrast ratio (typical)1000:1 Display resolution 1280 x 1024 pixels Display type LEDAspect ratio 5:4 Pixel pitch 0.264 x 0.264 mm Horizontal scan range 31.5
- 80 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Display viewable area (Hx V)270 x 338 mm Display diagonal (metric)43 cm Display number of colours 16.78 million colors Product colour Black International Protection (IP) code IP54 Touchscreen technology Surface acoustic wave Built-in speaker (s)YRMS rated power 2 WHDCPYNumber of speakers 2 Windows operating systems supported Y Plug & Play YUSB Touch port YHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)20 WPower consumption (standby)3 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Width 387 mm Height 342 mm Depth 201 mm Weight 5.8kg





...
