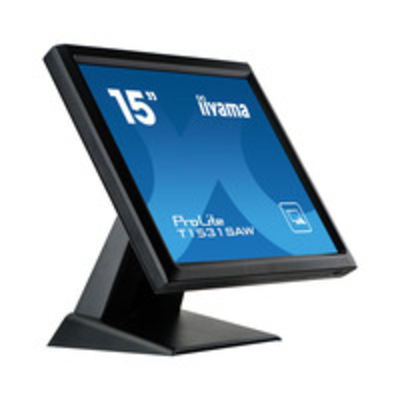

The Pro Lite T1531SAW-B5X uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity & screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, & the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, & include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1531SAW-B5X touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality & Entertainment, Control rooms, Education, Training & many others.\n\n Touch technology
- Surface Acoustic Wave\n\n Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed & a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast & colour accuracy). It is also scratch-resistant technology & therefore ideal to be used in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch. Feature Feature Value Display diagonal 38.1 cm (15") Response time 8 ms Display brightness 340 cd/m&178; Display technology TNContrast ratio (typical)700:1 Display resolution 1024 x 768 pixels Display type LEDAspect ratio 4:3 Pixel pitch 0.297 x 0.297 mm Horizontal scan range 31.5
- 60.2 k Hz Vertical scan range 56
- 75 Hz Viewing angle, horizontal 170&176; Viewing angle, vertical 160&176; Full HDNDisplay diagonal (metric)38 cm Viewable size, horizontal 30.4 cm Viewable size, vertical 22.8 cm Display number of colours 16.2 million colors Product colour Black International Protection (IP) code IP54 Touch technology Single-touch Touchscreen technology Surface acoustic wave Built-in camera N Built-in microphone N Number of simultaneous touchpoints 1 Megapixel 0.8 MPBuilt-in speaker (s)YRMS rated power 2 WHDCPYNumber of OSD languages 7 On Screen Display (OSD) languages German, English, Spanish, French, Italian, Japanese Number of speakers 2 Card reader integrated N Windows operating systems supported Y Linux operating systems supported Y Plug & Play Y Wi-Fi N Ethernet LANNHDMI ports quantity 1VGA (D-Sub) ports quantity 1 Display Ports quantity 1 Wall mountable Y Tilt angle range-5
- 90&176; Panel mounting interface 100 x 100 mm Tilt adjustment Y Cable lock slot YLED indicators YVESA mounting Y Cable lock slot type Kensington Power supply type ACPower consumption (typical)16 WPower consumption (standby)3 WAC input voltage 100
- 240 VAC input frequency 50 / 60 Hz Power management Y Energy efficiency class A Certification CB, CE, T&156;V-Bauart, CU, c U Lus, VCCIWidth 351 mm Height 306 mm Depth 201 mm Weight 4.8kg Cables included AC, Audio (3.5mm), Display Port, HDMI, USBQuick start guide Y
