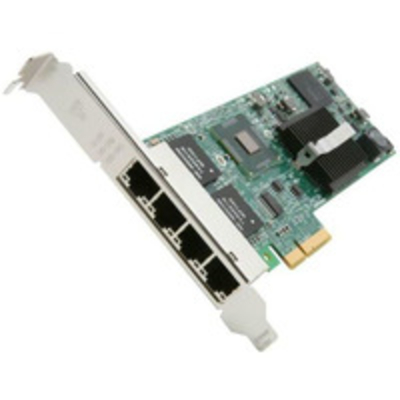

Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4\n Ethernet LAN Adapter, based on the latest Intel&174; 1 Gb E chip technology, offers four Gigabit Ethernet\nports for 10/100/1000 Base T.\n\n Virtualization support & Wake-on-LAN with selectable port are just some of the features from\nwhich you will benefit. Optimal support for your virtualization is provided by the support for Virtual\n Machine Device Queues (VMDq), Single Root I/O virtualization & sharing
Specification (SR-IOV).\n SR-IOV requires corresponding support in the system BIOS & in the operating system. PCI-SIG\n SR-IOV defines extensions of the PCI Express (PCIe)
Specification & enables PCI hardware resources\nto be shared with several system images or Virtual Machines. Feature Feature Value Connectivity technology Wired Host interface PCI Express Interface Ethernet Ethernet LAN (RJ-45) ports 4PCI version 2.1 Maximum data transfer rate 1000 Mbit/s Networking standards IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z Ethernet LANYEthernet LAN data rates 10, 100, 1000 Mbit/s Cabling technology 10/100/1000 Base T (X) Wake-on-LAN ready Y Flow control support Y Jumbo frames support Y Supported network protocolsi SCSILAN controller Intel&174; I350 Internal Y Recommended usage Server LED indicators Y Power consumption (typical)5 WOperating temperature (T-T)0
- 55 &176;CStorage temperature (T-T)-40
- 70 &176;CChipset Intel I350-AM4
